Special Tools

WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench V.A.G 1331

Fig 1: Identifying Torque Wrench V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Drip Tray for Shop Crane VAS 6208

Fig 2: Identifying Drip Tray For Shop Crane VAS 6208
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps up to Diameter 40 mm 3093

Fig 3: Identifying Hose Clamps up to Diameter 40 mm 3093
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Trim Removal Wedge 3409

Fig 4: Identifying Trim Removal Wedge 3409
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pry Lever T10039/1

Fig 5: Identifying Pry Lever T10039/1
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Multi-point Adapter 3400

Fig 6: Identifying Multi-point Adapter 3400
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Counter-hold T10172 with Adapter T10172/1

Fig 7: Identifying Counter-hold T10172 with Adapter T10172/1
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

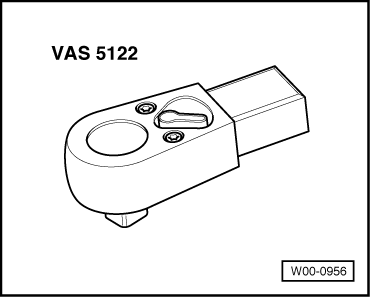

Reversible Ratchet VAS 5122

Fig 8: Identifying Reversible Ratchet VAS 5122
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench V.A.G 1783 (2 to 10 Nm)

Fig 9: Identifying Torque Wrench V.A.G 1783
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Evacuating and Charging Valve Adapter Set T10364

Fig 10: Identifying Evacuating and Charging Valve Adapter Set T10364
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Assembly Tool SW 17 V.A.G 1331/6

Fig 11: Identifying Assembly Tool SW 17 V.A.G 1331/6
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
