Manual A/C System And CLIMATRONIC Control Module -J255-

WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Coolant circuit, servicing, refer to REFRIGERANT CIRCUIT COMPONENTS, ENGINE COMPARTMENT, 2 ZONE AND 4 ZONE .
After completing the repair, perform the following: basic setting CLIMATRONIC A/C SYSTEM WITH AUTOMATIC CONTROL, CHECKING AND ADJUSTING .

Removing

Before working on electrical system, remove relevant fuse(s). Refer to the appropriate SYSTEM WIRING DIAGRAMS information.

-- Remove the radio or the navigation system first (depending on the equipment level). Refer to Removal and Installation .

-- Depending on which type of seat is fitted heated or non-heated unclip either the cover or both outer switches from the switch panel.

NOTE:

The switch panel has been removed completely for better illustration.

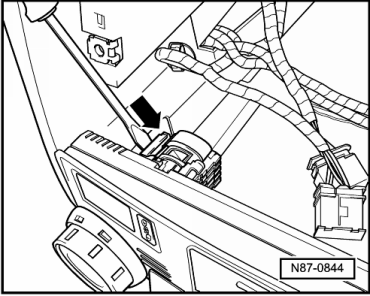

-- Press control unit locking device in direction of arrow and slide control unit out forward.

Fig 1: Pressing Lock With Screwdriver

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separator connectors.

Installing

Installation is carried out in the reverse order, when doing this note the following:

NOTE:

When installing the front operating unit ensure that no force is exerted on temperature and air distribution (Econ) regulators. Excessive force may break the predetermined breaking point impact protection of the rotary regulators.
