Heating And A/C Unit, Rear
WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

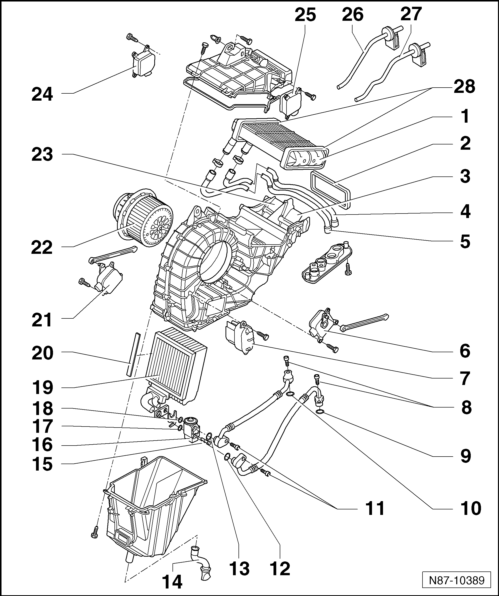

- Rear Heater Core
- Removing and installing, refer to REAR HEATING AND A/C UNIT HEATER CORE .
- Seal
- Right Air Door
- Refrigerant Line Supply Hose
- Refrigerant Line Return Hose
- Right Rear Temperature Door Motor -V314-
- Removing and installing, refer to REAR TEMPERATURE DOOR -V314-, RIGHT .
- Rear Blower Regulation Sensor -G463-
- Removing and installing, refer to REAR BLOWER REGULATION SENSOR -G463- .
- Securing Bolts
- 12 ± 1.5 Nm
- Refrigerant line
- O-ring
- Replacing
- 14.3 mm; 2.4 mm
- O-ring
- Replacing
- 10.8 mm; 1.8 mm
- Securing Bolts
- Refrigerant line to expansion valve
- 10 ± 1 Nm
- O-ring
- Replacing
- 14.3 mm; 2.4 mm
- O-ring
- Replacing
- 10.8 mm; 1.8 mm
- Condensation Water Hose With ValveNOTE:
Ensure that the condensation water drain hose with valve is not kinked or pinched during installation. Refer to REAR CONDENSATION WATER HOSE WITH VALVE, CHECKING .
- Cylindrical Screw
- Expansion Valve
- O-ring
- Replacing
- 10.8 mm; 1.8 mm
- O-ring
- Replacing
- 14.3 mm; 2.4 mm
- Rear Evaporator
- Removing and installing, refer to EVAPORATOR, REAR .
- Seal
- Left Rear Temperature Door Motor -V313-
- Removing and installing, refer to REAR TEMPERATURE DOOR -V313-, LEFT .
- Rear Bitron Blower Regulation Motor -V306-
- Removing and installing, refer to REAR BITRON BLOWER REGULATION MOTOR -V306- .
- Left Air Door
- Left Rear Air Door Motor -V239-
- Removing and installing, refer to REAR AIR DOOR -V239-, LEFT .
- Right Rear Air Door Motor -V240-
- Removing and installing, refer to REAR AIR DOOR -V240-, RIGHT .
- Left Rear Vent Temperature Sensor -G405-
- Removing and installing, refer to LEFT REAR VENT -G405- .
- Right Rear Vent Temperature Sensor -G406-
- Removing and installing, refer to RIGHT REAR VENT -G406- .
- Rear Heater Core Seal
