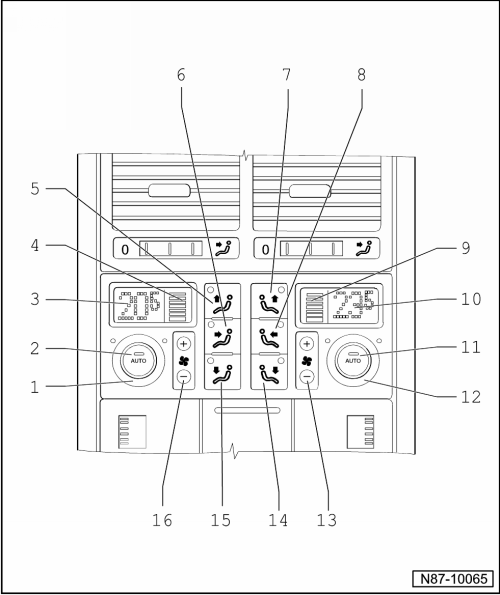

CLIMATRONIC Rear A/C Display Control Head Function, 4 Zone
WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Temperature Regulator, Left
- Change rear left temperature setting by turning.
- AUTO
Button, Left
- In automatic mode the Climatronic maintains the selected rear left interior temperature automatically. With this setting the vent air temperature, the blower speed and the air distribution are controlled automatically.
- Display Of Selected Interior Temperature, Left
- Can be changed from degrees Celsius to degrees Fahrenheit and vice versa. Refer to Convert Degrees Celsius To Fahrenheit In Vehicles With Menu Control Elements In Windshield Washer Lever .
- Display For Blower Speed, Left
- In automatic operation the actual blower speed is displayed.
- Button - Side Window Air Distribution, Left
- Button - Rear and Side Window Air Distribution, Left
- Button - Side Window Air Distribution, Right
- Button - Rear and Side Window Air Distribution, Right
- Display For Blower Speed, Right
- In automatic operation the actual blower speed is displayed.
- Display Of Selected Interior Temperature, Right
- Can be changed from degrees Celsius to degrees Fahrenheit and vice versa. Refer to Convert Degrees Celsius To Fahrenheit In Vehicles With Menu Control Elements In Windshield Washer Lever .
- AUTO
Button, Right
- In automatic mode the Climatronic maintains the selected rear right interior temperature automatically. With this setting the vent air temperature, the blower speed and the air distribution are controlled automatically.
- Temperature Regulator, Right
- Change rear right temperature setting by turning.
- Button For Setting Blower Speed, Right
- Button - Footwell Air Distribution, Right
- Button - Footwell Air Distribution, Left
- Button For Setting Blower Speed, Left
