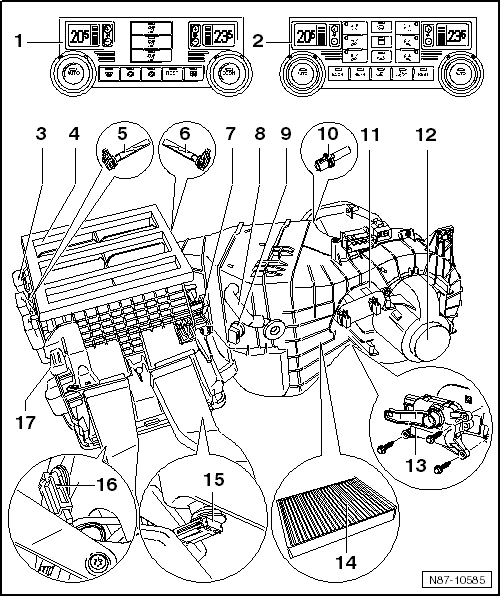

CLIMATRONIC Passenger Compartment Components Overview
WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Before beginning assembly work on electrical system, perform the following:
- Switch off all electrical consumers.
- Switch off ignition.
- Remove ignition key.
- A/C Control Head -E87- "2 Zone" with Climatronic Control Module -J255-
- A/C Control Head -E87- "4 Zone" with Climatronic Control Module -J255-
- Left Motor Mounting Plates
- Motor locations on the "4 Zone" heater and A/C unit, refer to HEATER AND A/C UNIT MOTOR LOCATIONS, 4 ZONE .
- Motor locations on the "2 Zone" heater and A/C unit, refer to HEATER AND A/C UNIT MOTOR LOCATIONS, 2 ZONE .
- Upper Part Of Air Distribution Housing
- Left Front Upper Body Outlet Temperature Sensor -G385-
- Removing and installing, refer to LEFT FRONT UPPER BODY VENT -G385- .
- Right Front Upper Body Outlet Temperature Sensor -G386-
- Removing and installing, refer to RIGHT FRONT UPPER BODY VENT -G386- .
- Right Motor Mounting Plates
- Motor locations on the "4 Zone" heater and A/C unit, refer to HEATER AND A/C UNIT MOTOR LOCATIONS, 4 ZONE .
- Motor locations on the "2 Zone" heater and A/C unit, refer to HEATER AND A/C UNIT MOTOR LOCATIONS, 2 ZONE .
- Glove Compartment Cooling Hose
- Evaporator Temperature Sensor -G308-
- Removing and installing, refer to EVAPORATOR -G308- OR EVAPORATOR VENT -G263- .
- Fresh Air Intake Duct Temperature Sensor -G89-
- Removing and installing, refer to FRESH AIR INTAKE DUCT TEMPERATURE SENSOR -G89- .
- Front Bitron Blower Regulation Sensor -G462-
- Removing and installing, refer to FRONT BITRON BLOWER REGULATION SENSOR -G462- .
- Front Bitron Blower Regulation Motor -V305-
- Removing and installing, refer to FRONT BITRON BLOWER REGULATION MOTOR -V305- .
- Fresh/Recirculating Air Door Motor -V154-
- Removing and installing, refer to FRESH/RECIRCULATING AIR DOOR MOTOR -V154- .
- Dust and Pollen Filter With Activated Charcoal Filter Element
- Removing and installing, refer to DUST AND POLLEN FILTER WITH ACTIVATED CHARCOAL FILTER INSERT .
- Right Footwell Vent Temperature Sensor -G262-
- Removing and installing, refer to RIGHT FOOTWELL VENT -G262- .
- Left Footwell Vent Temperature Sensor -G261-
- Removing and installing, refer to LEFT FOOTWELL VENT -G261- .
