A/C Display Control Head -E87- With A/C Control Module -J301-

WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

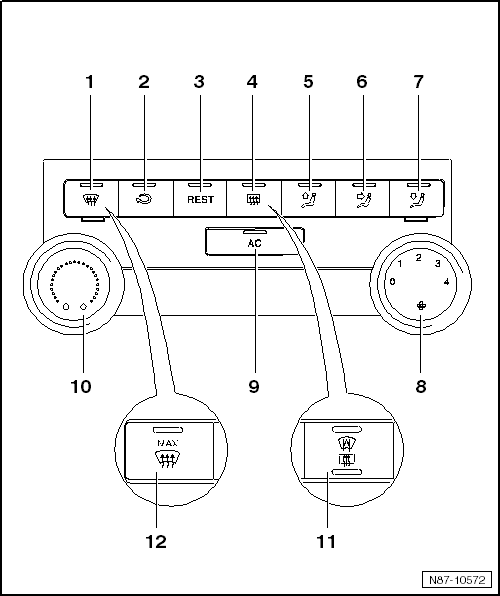

Fig 1: Identifying A/C Display Control Head -E87- With A/C Control Module -J301-
GWWN87-10572Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Windshield Defrost Button
  2. Recirculating Air Mode Button
    • Press button for recirculating air function to prevent polluted air from entering interior.
  3. REST  Button
    • When residual heat function is switched on the residual heat of engine is pumped by a coolant pump to the heater core.
  4. Rear Window Defogger Switch
    • This button can also control the windshield defroster, depending on the vehicle equipment.
  5. Button - Upper Air Distribution
  6. Button - Center Air Distribution
  7. Button - Lower Air Distribution
  8. Blower Regulator
    • Changed blower speed by turning.
  9. Push Button For A/C System On/Off
  10. Temperature Regulator
    • Changed temperature setting by turning.
  11. Rear Defroster/Windshield Defroster Button
    • Optional on vehicles with windshield defroster.
  12. Windshield Defrost Button
    • Identified with "MAX"
