Wiper Blade, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Bring the windshield wiper into the service position. Refer to WINDSHIELD WIPER, BRINGING INTO SERVICE POSITION .

-- Lift the windshield wiper arm off the windshield.

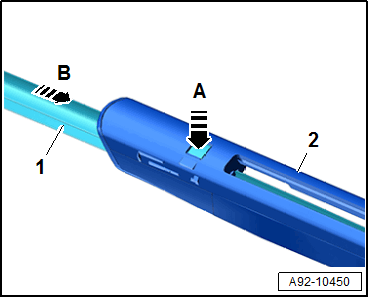

-- Press the clip in direction of -arrow A- and slide the wiper blade -1- off of the windshield wiper arm -2- in direction of -arrow B-.

GWWA92-10450Courtesy of AUDI OF AMERICA, LLC

-- Remove the wiper blade.
