Wiper Blade, Removing And Installing: Installing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and note the following:

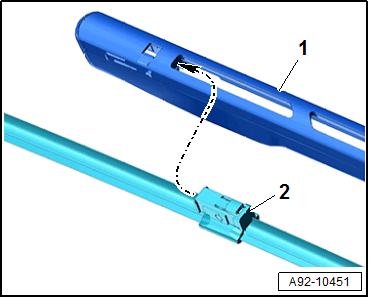

-- Guide the wiper blade -2- parallel into the windshield wiper arm -1- in direction of -arrow-. Make sure that the wiper blade is slid into the windshield wiper arm until the clip audibly engages.

GWWA92-10451Courtesy of AUDI OF AMERICA, LLC

-- To leave the "service position", either press the windshield wiper switch or drive faster than 6 km/h (3.72 mph).
