Windshield Wiper Arms, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

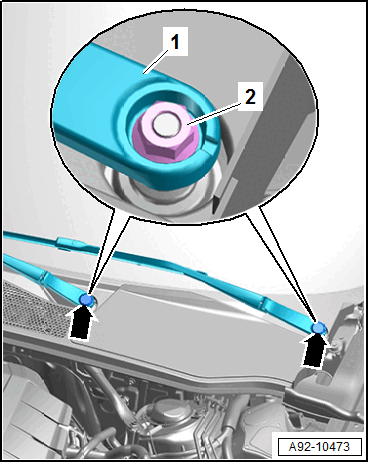

-- Pry the caps -arrows- off of the windshield wiper arms -1- with a screwdriver.
-- Remove the nuts -2-.

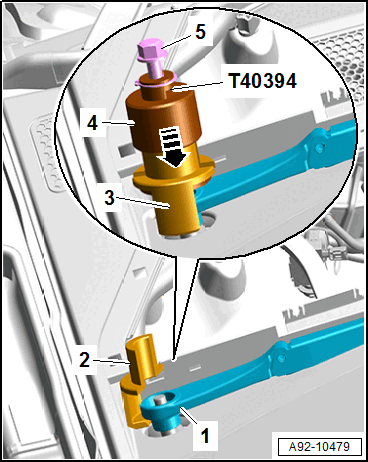

-- Position the hook -2- on the windshield wiper arm -1-.
-- Position the : T40394 on the opposite side of the windshield wiper arm and latch the pivoting hook -3-.
-- Push the locking ring -4- downward in direction of -arrow-.
-- Turn the bolt -5- clockwise until the windshield wiper arm is removed from the windshield wiper axle.
-- Remove the windshield wiper arms.
