Windshield Washer Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right front wheel spoiler and loosen the wheel housing liner in the front section and push to the side. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

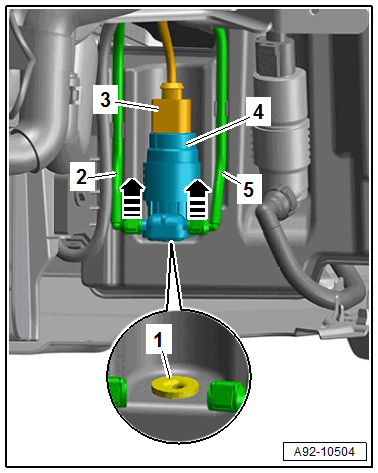

-- Disconnect the connector -3-.
-- Place a drip tray under the washer fluid reservoir.
-- Open the clips in direction of -arrows- and remove the washer fluid hoses -2 and 5- from the windshield washer pump -4-.
-- Remove the windshield washer pump upward from the washer fluid reservoir.
