Windshield Washer Pump Control Module -J1100-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

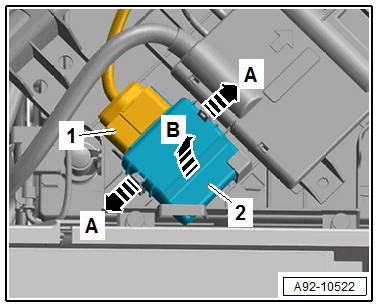

-- Disconnect the connector -1-.
-- Loosen the catches in direction of -A arrows-.
-- Remove the control module -2- in the direction of -arrow B- from the bracket.
