Washer Nozzles, Adjusting

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Washer Nozzle, Adjusting

Adjust the spray nozzles for the windshield washer system. Refer to WINDSHIELD WASHER SYSTEM SPRAY PATTERN, CHECKING AND ADJUSTING IF NECESSARY .

-- Clean the dirty washer nozzle if the spray field does not match the specifications.

Washer Nozzle, Cleaning

CAUTION:

There is a risk of damaging the washer nozzles through improper handling.

- Do not use any objects to clean the washer nozzles.

-- Bring the windshield wiper into the service position. Refer to WINDSHIELD WIPER, BRINGING INTO SERVICE POSITION .

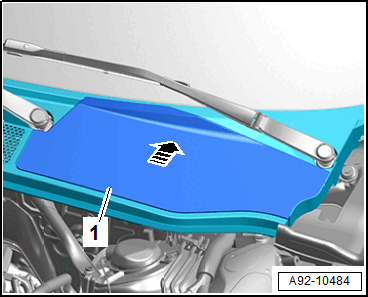

-- Slide the service cover -1- for the plenum chamber cover toward the rear in direction of -arrow- and remove it.

Courtesy of AUDI OF AMERICA, LLC

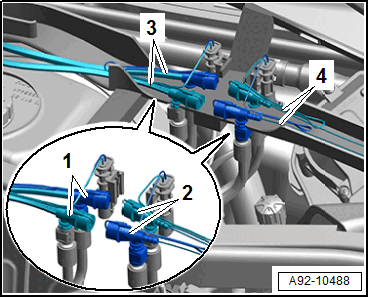

-- Free up the washer fluid hoses -3 and 4-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers and disconnect the washer fluid hoses -1 and 2- at the connection points.

-- To remove any contaminants, the washer nozzle may only be blown out with compressed air in the opposite direction of the spray direction.

-- If the spray field still does not match the specifications, replace the windshield wiper arm.
