Windshield Wiper Arm, Removing And Installing: Removing

-- Switch the ignition on.

-- Activate "rear wiping" and let the wiper arm run to end position.

-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.

-- Carefully expand the cap in direction of -arrows- and lift off.

Fig 1: Identifying Cover

Courtesy of AUDI OF AMERICA, LLC

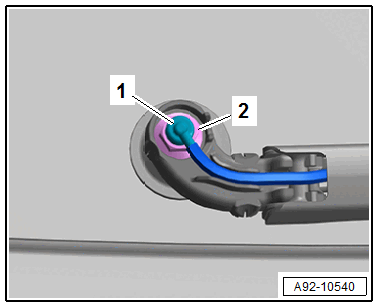

-- Remove the washer nozzle -1- carefully.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nut -2- one turn.

-- Install an M6 nut -4-.

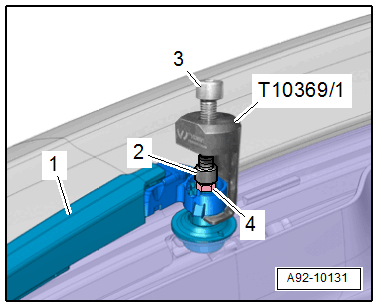

Fig 2: Position The Puller T10369/1 On The Wiper Arm

Courtesy of AUDI OF AMERICA, LLC

-- Position the : T10369/1  on the windshield wiper arm -1- as shown.

-- Position the thrust piece -2- on the windshield wiper axle.

-- Turn the bolt -3- clockwise until the windshield wiper arm is removed from the windshield wiper axle.

-- Remove the nut all the way and remove the windshield wiper arm.
