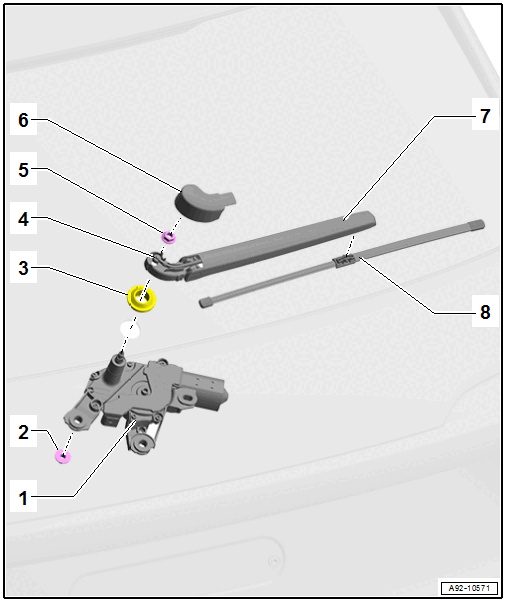

Overview - Rear Window Wiper System
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Window Wiper Motor -V12-
- Removing and installing. Refer to Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Quantity: 3
- Seal
- Replace if damaged.
- Removing and installing. Refer to Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING .
- Spray Nozzle Connection for Windshield Wiper with Integrated Washer Nozzles
- With washer fluid hose and washer nozzle
- Cannot be replaced separately if faulty.
- Replacing. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
- Nut
- 12 Nm
- Rear Window Wiper Cap
- Windshield Wiper Arm with Integrated Washer Nozzles
- Removing and installing. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
- Wiper Blade
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
