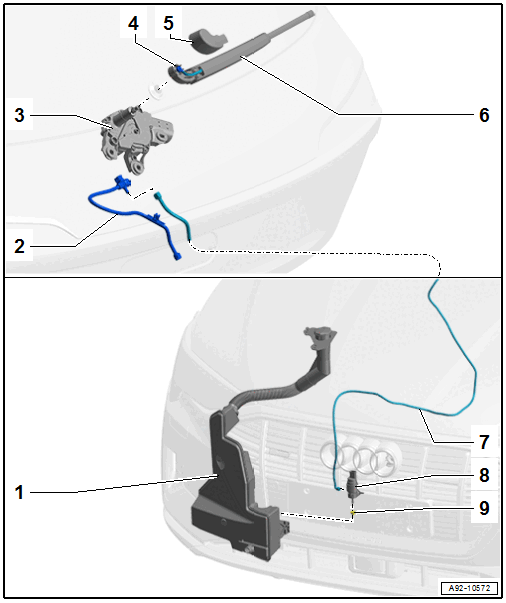

Overview - Rear Window Washer System
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- For the front and rear window washer system
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Washer Fluid Hose
- For the rearview camera/peripheral camera washer nozzle
- Overview. Refer to Auxiliary Washer System .
- Rear Window Wiper Motor -V12-
- Washer Nozzle Connection
- With washer fluid hose and washer nozzle
- Cannot be replaced separately if faulty.
- Replacing. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
- Rear Window Wiper Cap
- Windshield Wiper Arm
- Washer Fluid Hose
- From the rear window washer pump
- Rear Window Washer Pump -V13-
- Removing and installing. Refer to REAR WINDOW WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged.
