Intake Manifold Runner Position Sensor, Checking

Special tools and workshop equipment required

• Multimeter.
• Wiring diagram.

Test requirements

• The Intake Manifold Runner Position Sensor -G336- fuse OK.
• The Engine Component Power Supply Relay -J757- OK.
• The parking brake engaged.
• The battery voltage at least 12.5 V.
• The selector lever of automatic transmission in position "P" or "N".
• All electrical consumers switched off (radiator fan must NOT run during test).
• A/C switched off.
• The fuel tank at least ¹ /₄ filled.
• The ignition switched off.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK .

Start diagnosis

Procedure

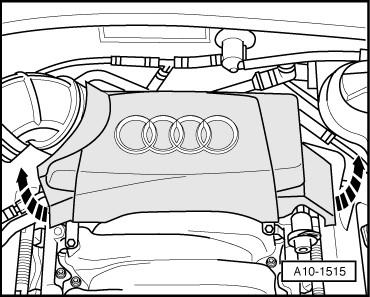

-- Remove the rear engine cover -arrows-.

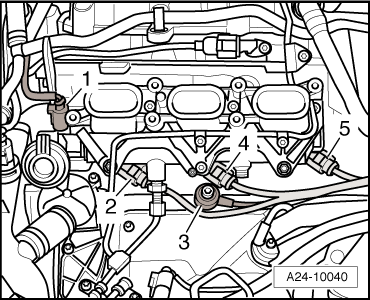

-- Disconnect the Intake Manifold Runner Position Sensor -G336- electrical harness connector -1-.

Checking voltage supply

Switch the ignition on.

-- Using a Multimeter --, check the Intake Manifold Runner Position Sensor -G336- electrical harness connector for voltage.

Intake Manifold Runner Position Sensor -G336- electrical harness connector terminals	Specified value
1 to Ground (GND)	about 5 V
2 to Battery positive (+)	Battery voltage (+)
3 to Ground (GND)	Battery voltage (+)

Switch the ignition off.

If the specified values are obtained:

-- Replace the Intake Manifold Runner Position Sensor -G336-.

If the specified values are not obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

-- Install the test box.

If the manufacturers test box is not being used. Perform the following step.

-- Remove the Motronic Engine Control Module (ECM) -J623-. Refer to ENGINE CONTROL MODULE, REPLACING .

-- Using a multimeter --, check the Intake Manifold Runner Position Sensor -G336- electrical harness connector terminals to the Engine Control Module (ECM) -J623- electrical harness connector T60 terminals for an open circuit.

Intake Manifold Runner Position Sensor -G336- electrical harness connector terminals	Engine Control Module (ECM) -J623- electrical harness connector T60 terminals or test box Socket
1	25
2	22
3	40

Specified value: 1.5 Ω Max.

If the specification was not obtained:

-- Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

-- Erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .

-- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to READINESS CODE .

-- End diagnosis.

If the DTC does return and no malfunction is detected in the wiring and the voltage supply was OK:

-- Replace the Motronic Engine Control Module (ECM) -J623-. Refer to ENGINE CONTROL MODULE, REPLACING .

The Intake Manifold Runner Position Sensor -G336- must be adapted to the Engine Control Module (ECM) -J623-.

To adapt the Intake Manifold Runner Position Sensor -G336- to the Engine Control Module (ECM) -J623- perform the following steps:

• The battery voltage at least 12.5 V.
• Coolant temperature must be between 20° C and 80° C.
• No DTC's stored in DTC memory.

-- Start the engine and let run at idle for at least 70 Seconds.

-- The Engine Control Module (ECM) -J623- will automatically adapt the Intake Manifold Runner Position Sensor -G336-.

-- Assembly is performed in the reverse of the removal.

Final procedures

After repair work, the following work steps must be performed in the mentioned sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
