Antenna Selection Control Module

Removing

Before starting repair work, perform the following:

-- Switch off ignition, switch off all electrical consumers and remove ignition key.

-- Remove molded headliner. Refer to Removal and Installation

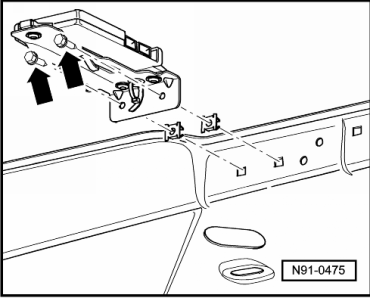

-- Remove both mounting bolts -arrows- and remove control module with bracket from roof reinforcement.

Fig 1: Identifying Mounting Bolts -Arrows- For Module With Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect connectors.

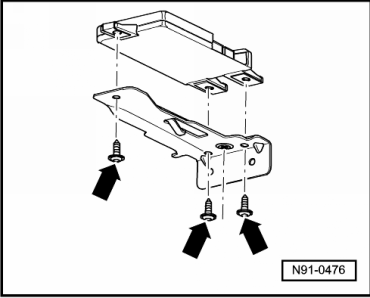

-- Remove the three bolts -arrows- and remove control module from bracket.

Fig 2: Identifying Three Bolts -Arrows- And Module From Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
