Sound Systems Overview

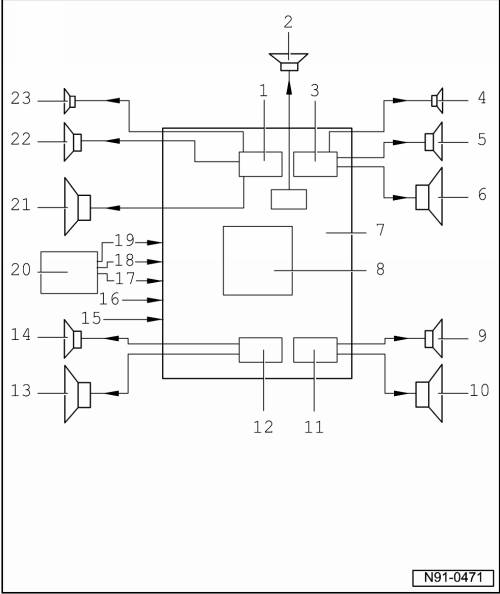

Fig 1: Identifying Sound Systems, Layout
GWWN91-0471Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Amplifier Output Stage For Left Front Speaker
  2. Center Speaker
    • Installed in center of instrument panel
    • Function as center speaker
  3. Amplifier Output Stage For Right Front Speaker
  4. Right Front Treble Speaker
  5. Right Front Midrange Speaker
  6. Right Front Bass Speaker
  7. Complete amplifier, terminal assignment on "Sound 1" system and terminal assignment on "Sound 2" system, refer to MULTI-PIN CONNECTOR A, 24-PIN ON "Sound 1" SYSTEM  and MULTI-PIN CONNECTOR A, 24-PIN ON "Sound 2" SYSTEM .
  8. Source Mix (Volume, Balance, Fade, Treble, Mid-Range And Bass)
  9. Right Rear Midrange Speaker
  10. Right Rear Bass Speaker
  11. Amplifier Output Stage For Right Rear Speaker
  12. Amplifier Output Stage For Left Rear Speaker
  13. Left Rear Bass Speaker
  14. Left Rear Midrange Speaker
  15. CAN bus (for On Board Diagnostic only)
  16. Mono Input Navigation (Language)
  17. Telephone/Language dialog
  18. Right Audio Input Signal
  19. Left Audio Input Signal
  20. Radio Or Radio Navigation System
  21. Left Front Bass Speaker
  22. Left Front Midrange Speaker
  23. Left Front Treble Speaker
