Control Units
CONTROL UNITS LOCATION

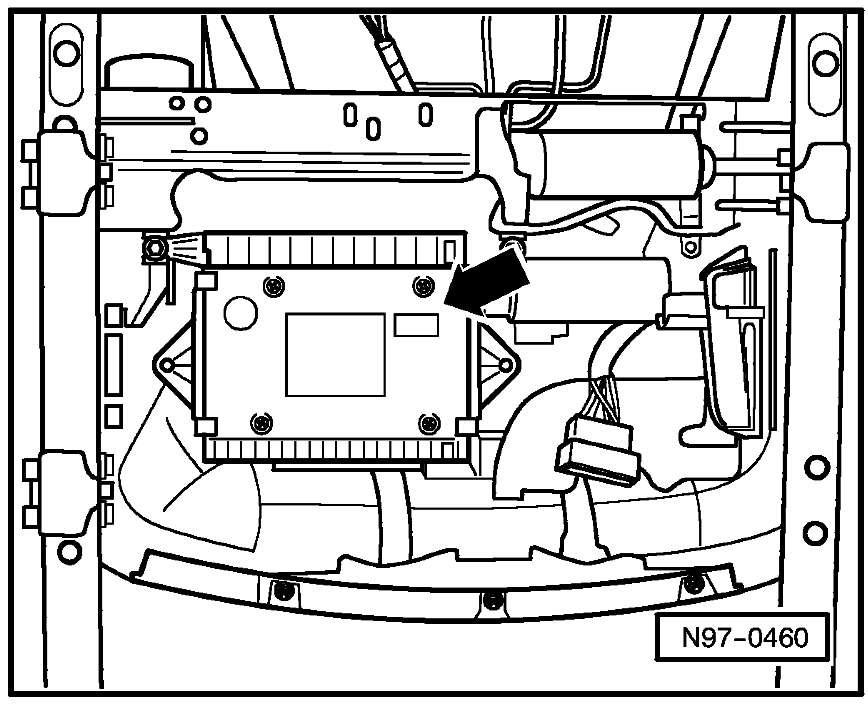

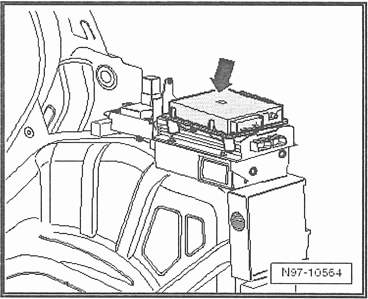

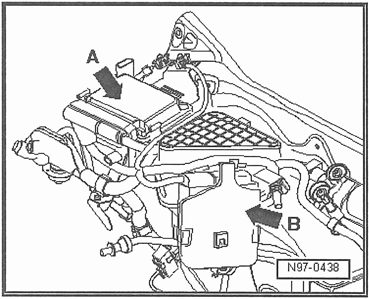

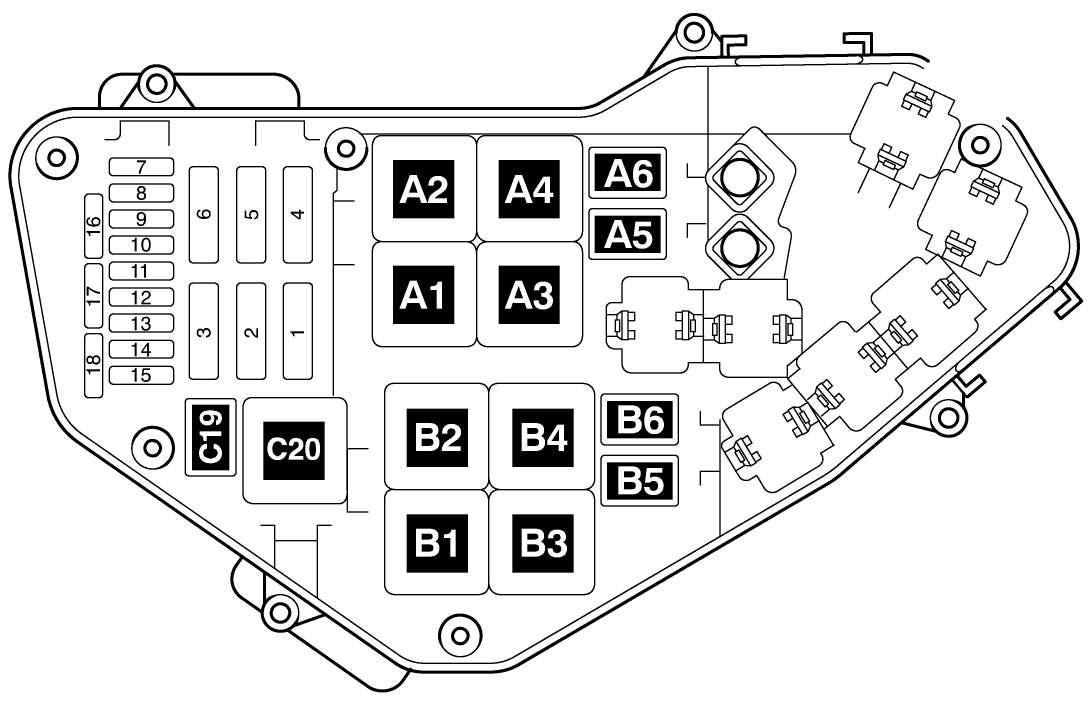

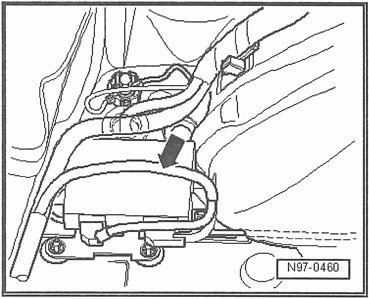

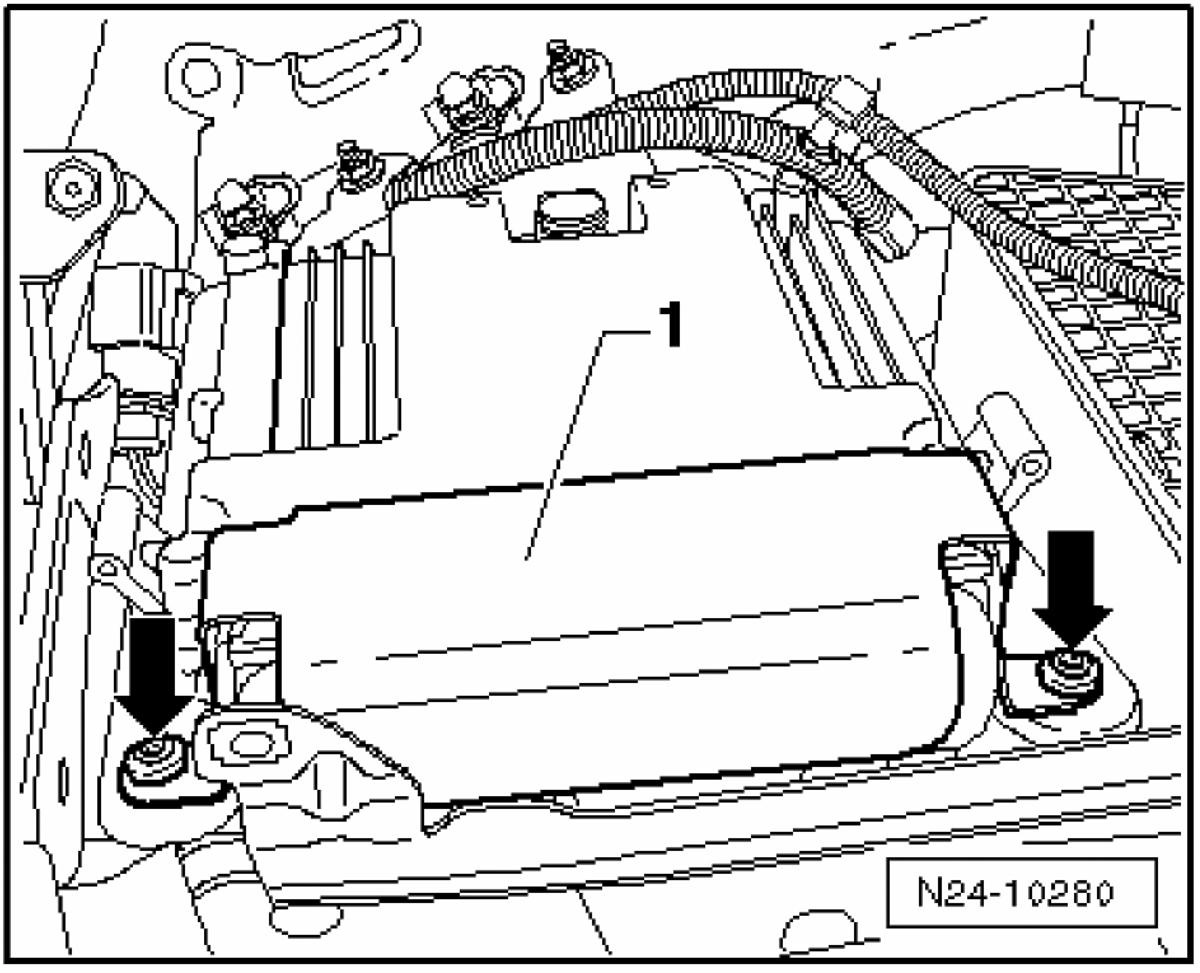

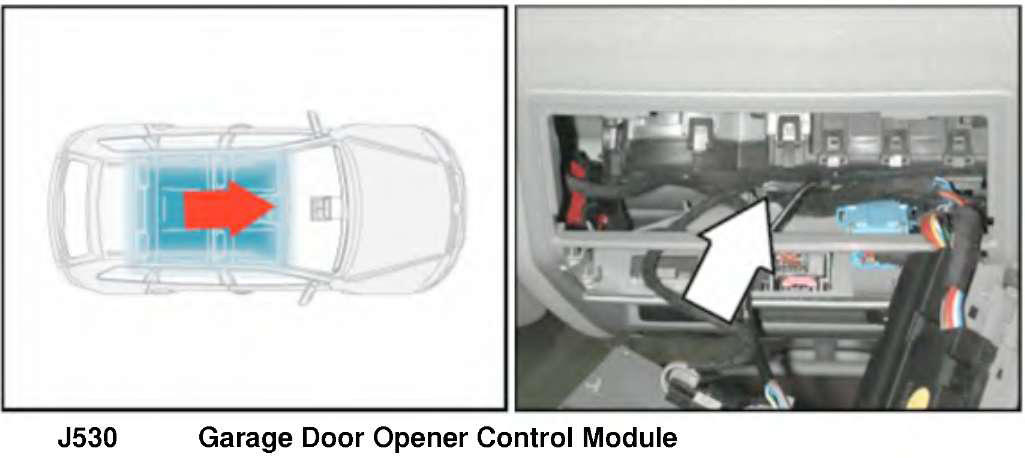

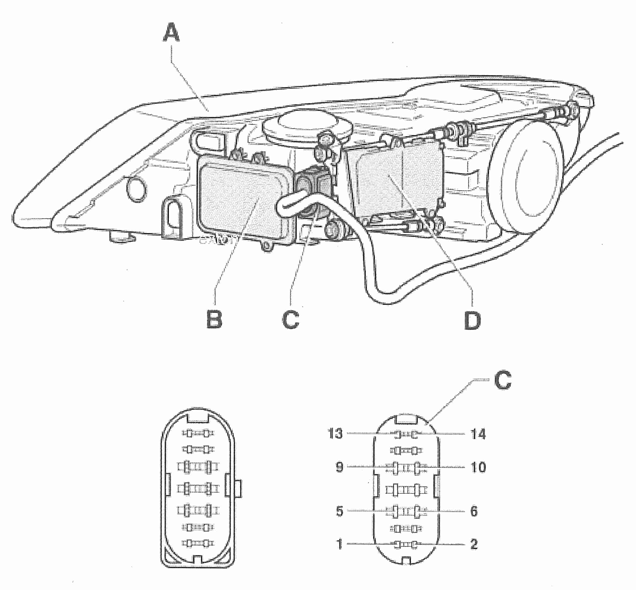

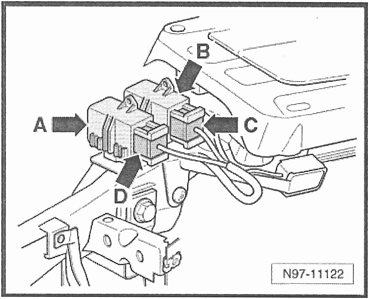

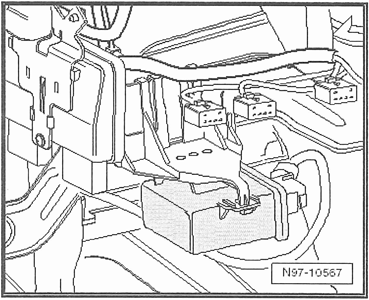

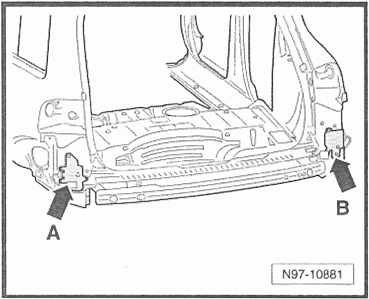

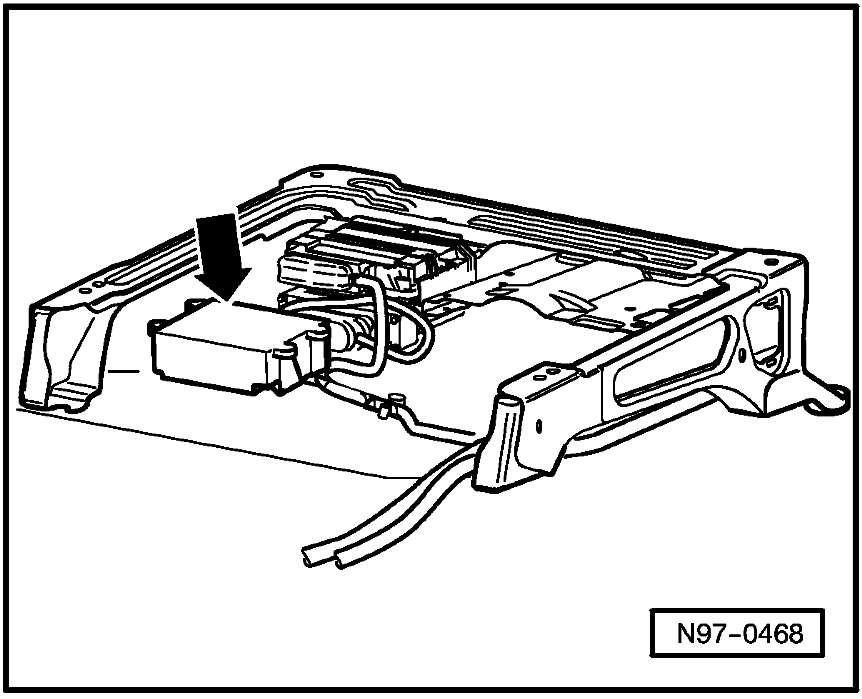

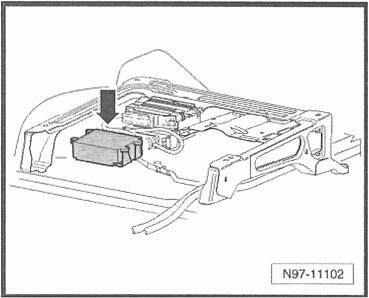

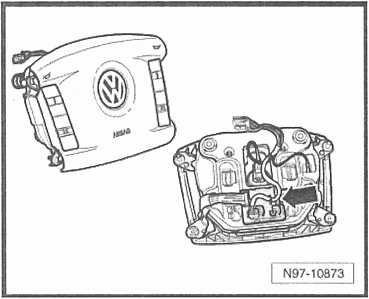

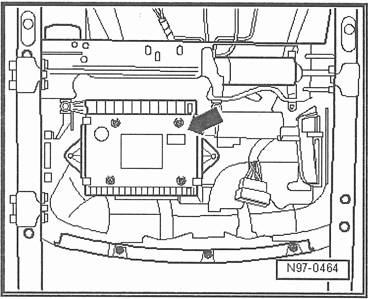

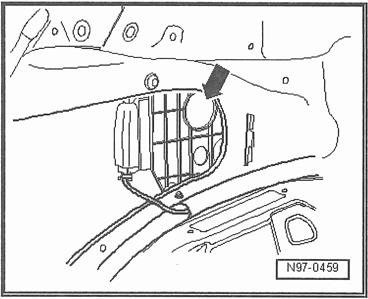

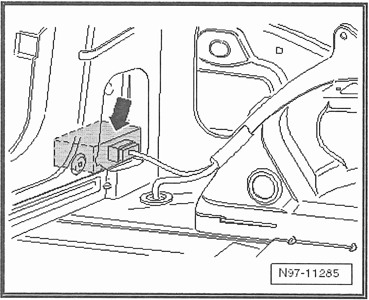

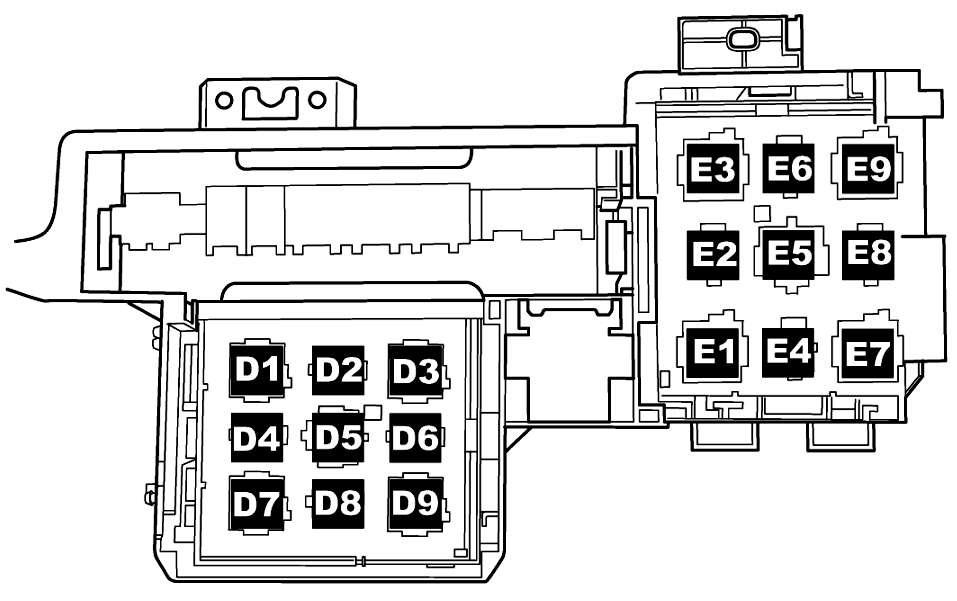

| Component | Location |
|---|---|
| ABS Control Module (W/ELD) | Right rear of engine compartment. See Figure. |
| Access/Start Control Module | Below left side of dash. See Figure. |
| Airbag Control Module | Under center console. See Figure. |
| Antenna Selection Control Module | Center rear of roof. See Figure. |
| Anti-Theft Engine Disable Sensor | At right end of dash. See Figure. |
| Automatic Glow Time Control Module (A3) | In left plenum chamber electronics box. See Figure. |
| Central Control Module For Comfort System | Right rear cargo area. See Figure. |
| Control Module For Multi-Function Steering Wheel | On steering column. See Figure. |
| Coolant Fan Control (FC) Module | Front of engine compartment. See Figure. |
| Coolant Fan Control (FC) Module 2 | Front of engine compartment. See Figure. |
| Diesel Direct Fuel Injection Engine Control Module (A) | In right plenum chamber electronics box. See Figure. |
| Differential Lock Control Module | Left rear wheel housing. See Figure. |
| Door Control Module (Driver's/Front Passenger's) | In respective front door. |
| Door Control Module (Left/Right Rear) | In respective rear door. |
| Engine Control Module (ECM) | In right plenum. See Figure. |
| Garage Door Opener Control Module | Front of roof module. See Figure. |
| Headlamp Power Output Stage (Left/Right) (D) | On respective headlight assembly. See Figure. |
| Headlamp Rang/Cornering Lamp Control Module | Under center of dash. See Figure. |
| Heated Seats Control Module (Front) (B) | Behind right side of dash. See Figure. |
| Heated Seats Control Module (Rear) (A) | Behind right side of dash. See Figure. |
| Heated Windshield Control Module | Under driver's seat, near battery. See Figure. |
| Heater Control Module (Auxiliary Engine Coolant Heater) | Left front wheelwell. |
| High-Intensity Gas Discharge Lamp Control Module (Left/Right) (B) | On respective headlight assembly. See Figure. |
| Lane Change Assistance Control Module (A) | Behind left end of rear bumper. See Figure. |
| Lane Change Assistance Control Module 2 (B) | Behind right end of rear bumper. See Figure. |
| Level Control System Control Module | Right rear of vehicle. See Figure. |
| Memory Seat/Steering Column Control Module | Under driver's seat. See Figure. |
| Motronic Engine Control Module (A) | In right plenum chamber electronics box. See Figure. |
| Multi-Function Steering Wheel Control Module | Center of steering wheel. See Figure. |
| Operating Electronics & Telephone Control Module | Under front passenger's seat. See Figure. |
| Parking Aid Control Module | Base of left "D" pillar. See Figure. |
| Passenger Memory Seat Control Module | Under front passenger's seat. See Figure. |
| Power Sunroof Control Module | Front center of roof. See Figure. |
| Rear Lid Control Module | Base of left "D" pillar. See Figure. |
| Rear View Camera System Control Module | Behind luggage compartment right side trim panel. See Figure. |
| Safety Belt Height Control Module | Under driver's seat. See Figure. |
| Servotronic Control Module (D1) | In left instrument panel electronics box. See Figure. |

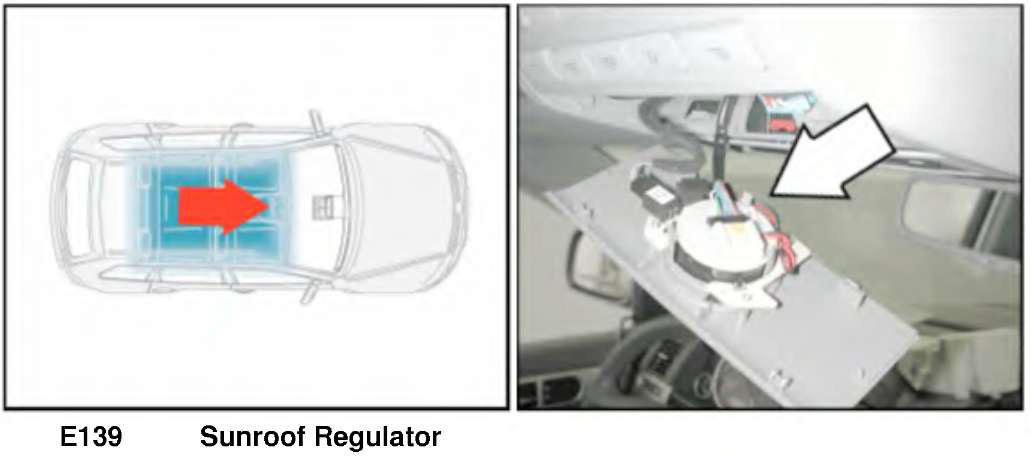

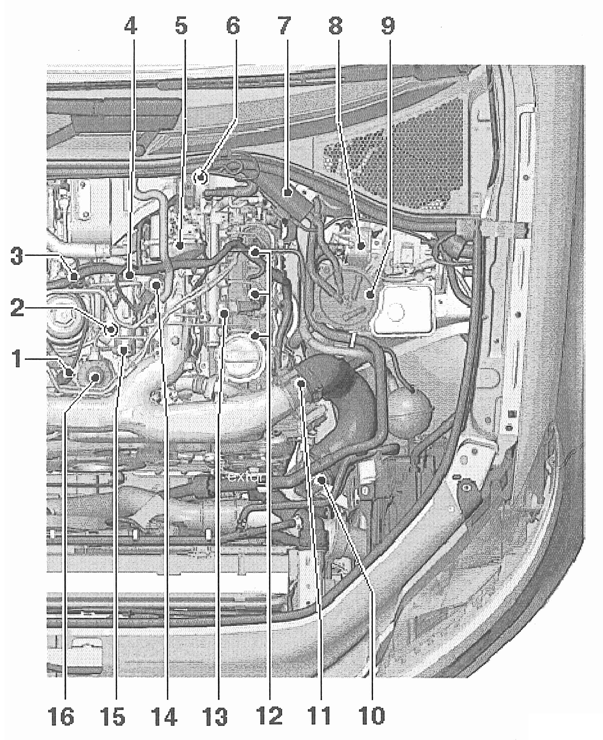

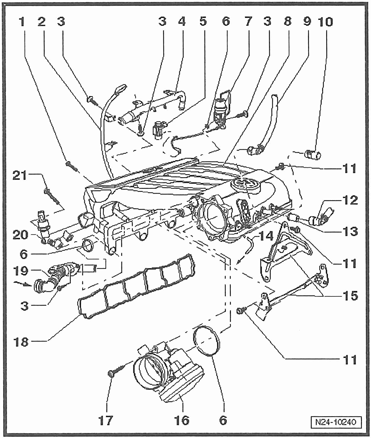

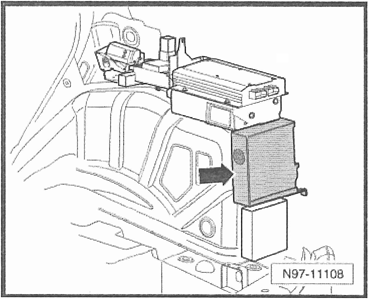

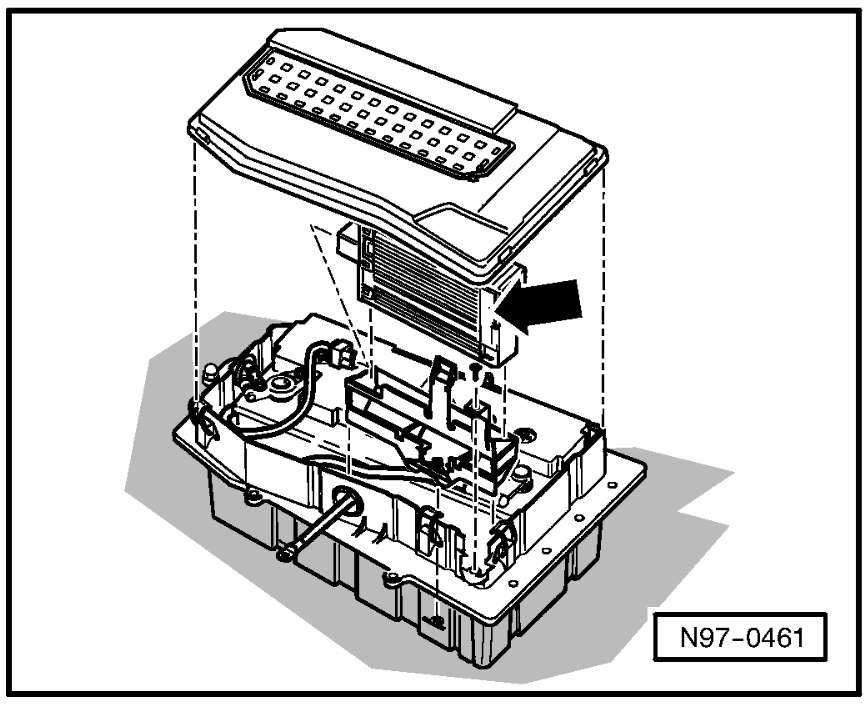

| Sunroof Regulator | Center front of roof. See Figure. |
| Telematic Control Module | Under front passenger's seat. See Figure. |
| Throttle Valve Control Module (3.0L) (11) | On throttle body. See Figure. |
| Throttle Valve Control Module (3.6L) (16) | On throttle body. See Figure. |
| Tire Pressure Monitoring Control Module | Under left side of dash. See Figure. |
| Towing Sensor Control Module | Right side of cargo area. See Figure. |
| Transmission Control Module | Under front passenger's seat. See Figure. |
| Turbocharger 1 Control Module (9) | On turbocharger. See Figure. |
| TV Tuner | Behind luggage compartment right side trim panel. See Figure. |
| Vehicle Electrical System Control Module | Under left side of dash. See Figure. |
| Vehicle Position Recognition Control Module | Left rear of roof. |
