Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

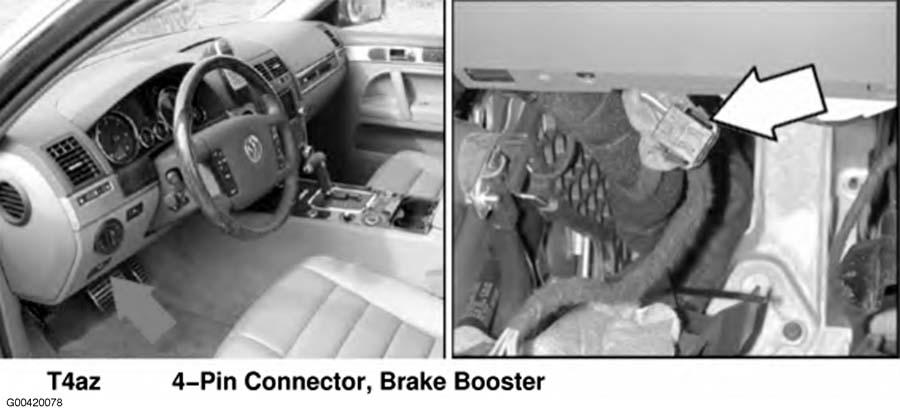

Fig 1: Below Left Side Of Dash

G00420078

Courtesy of VOLKSWAGEN UNITED STATES, INC.

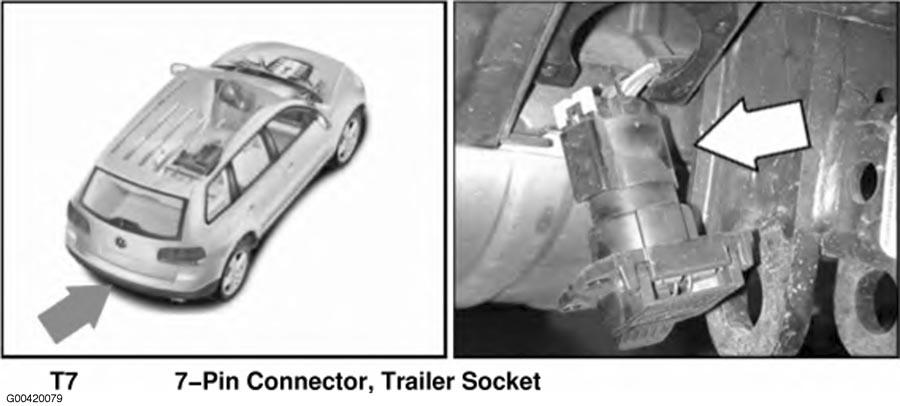

Fig 2: Below Center Of Rear Bumper

G00420079

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Right Rear Of Engine Compartment

G00420081

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Below Left Side Of Dash

G00420082

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Center Console

G00420083

Courtesy of VOLKSWAGEN UNITED STATES, INC.

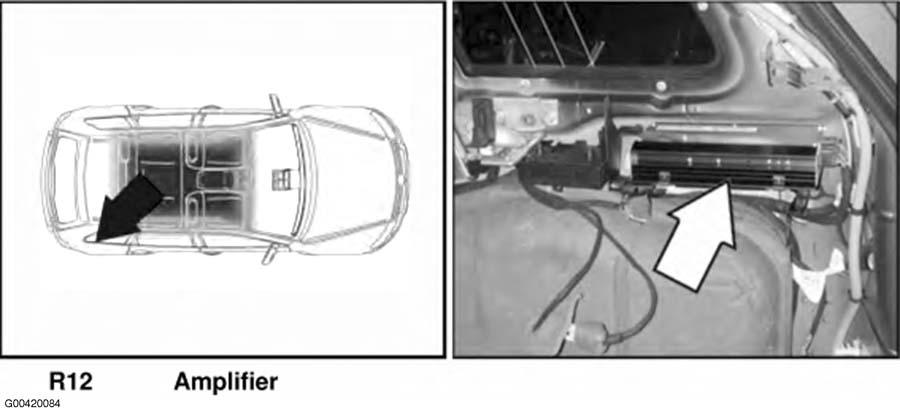

Fig 6: Right Side Of Cargo Area

G00420084

Courtesy of VOLKSWAGEN UNITED STATES, INC.

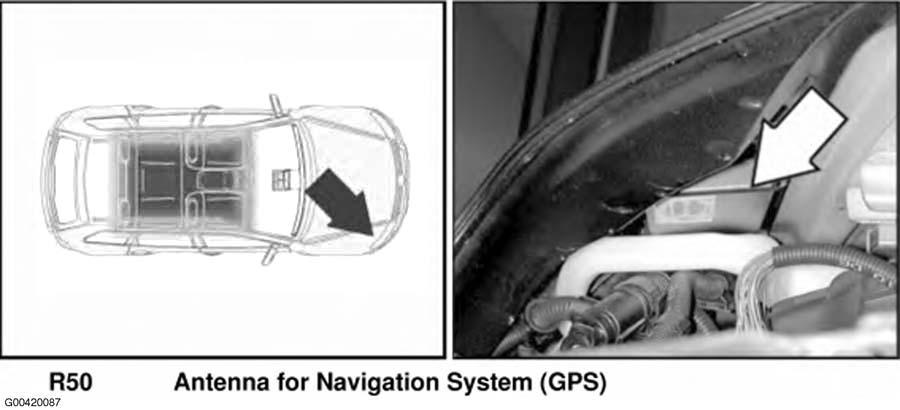

Fig 7: Right Front Of Engine Compartment

G00420087

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 8: Rear Of Vehicle

G00420088

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 9: Right Front Of Vehicle

G00420089

Courtesy of VOLKSWAGEN UNITED STATES, INC.

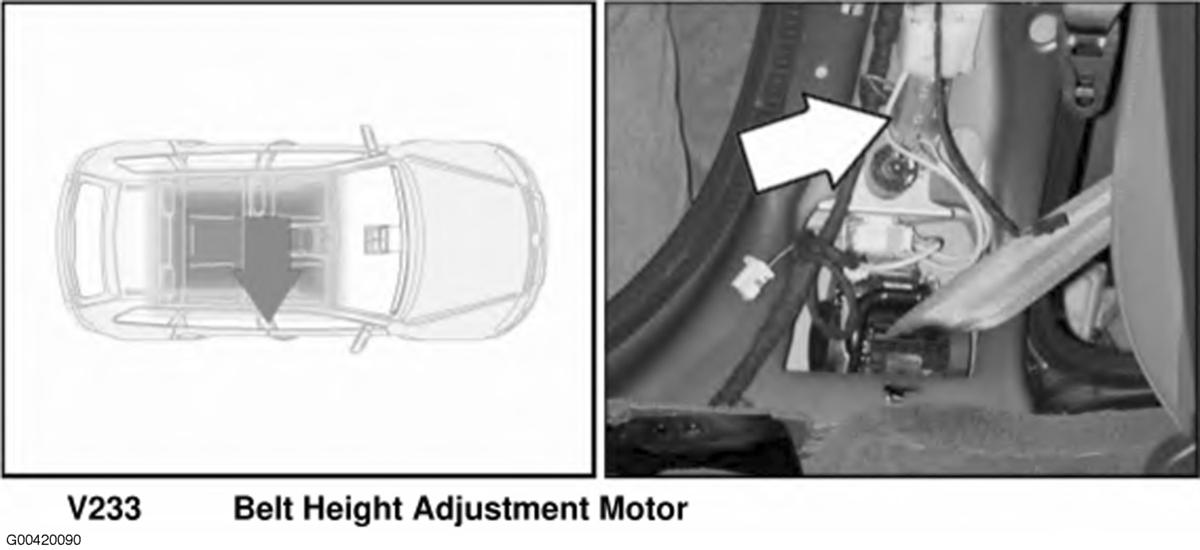

Fig 10: Right "B" Pillar

G00420090

Courtesy of VOLKSWAGEN UNITED STATES, INC.

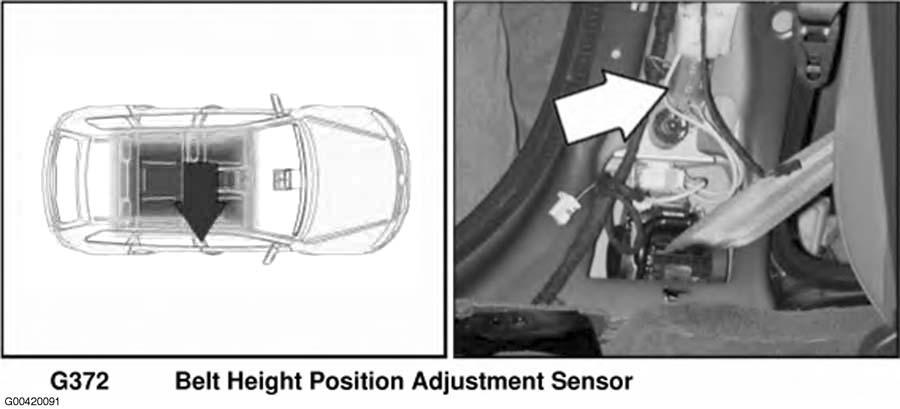

Fig 11: Right "B" Pillar

G00420091

Courtesy of VOLKSWAGEN UNITED STATES, INC.

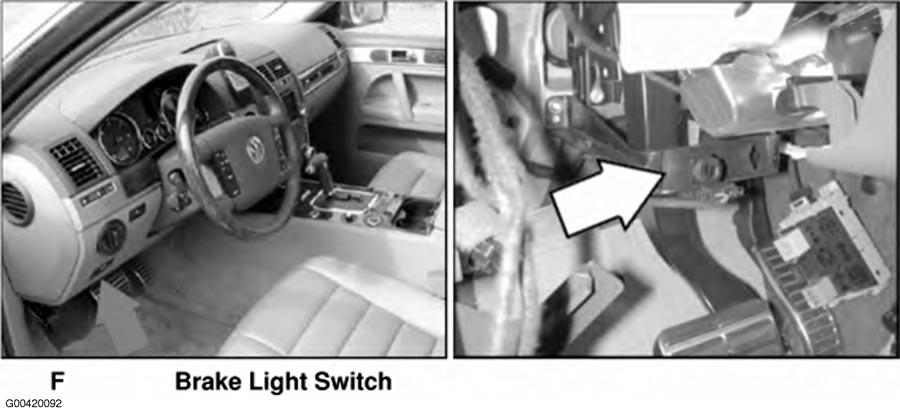

Fig 12: Below Left Side Of Dash

G00420092

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 13: Right Rear Of Vehicle

G00420093

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 14: Left Side Of Dash

G00420094

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 15: Right Rear Of Vehicle

G00420095

Courtesy of VOLKSWAGEN UNITED STATES, INC.

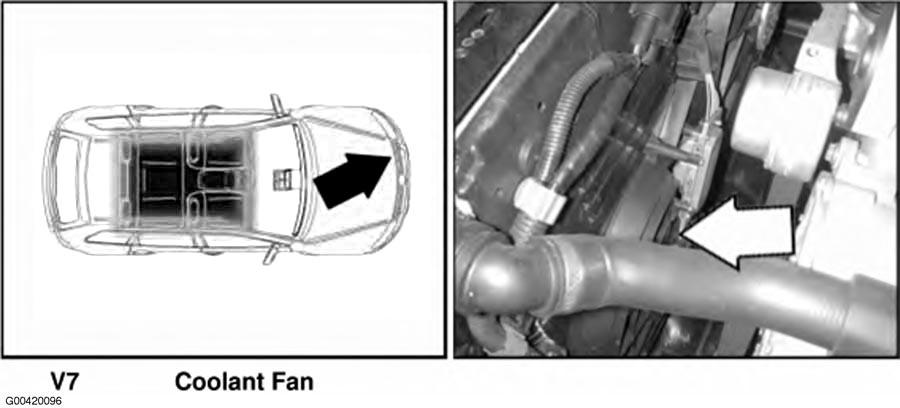

Fig 16: Front Of Vehicle

G00420096

Courtesy of VOLKSWAGEN UNITED STATES, INC.

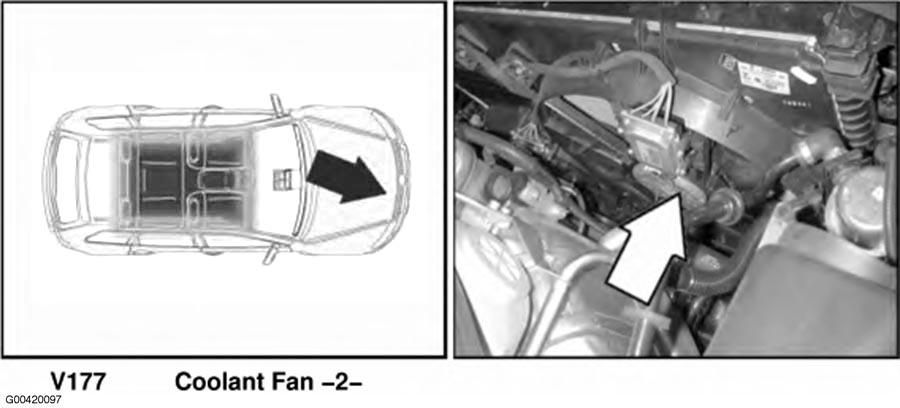

Fig 17: Front Of Vehicle

G00420097

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 18: Front Of Vehicle

G00420098

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 19: Front Of Vehicle

G00420099

Courtesy of VOLKSWAGEN UNITED STATES, INC.

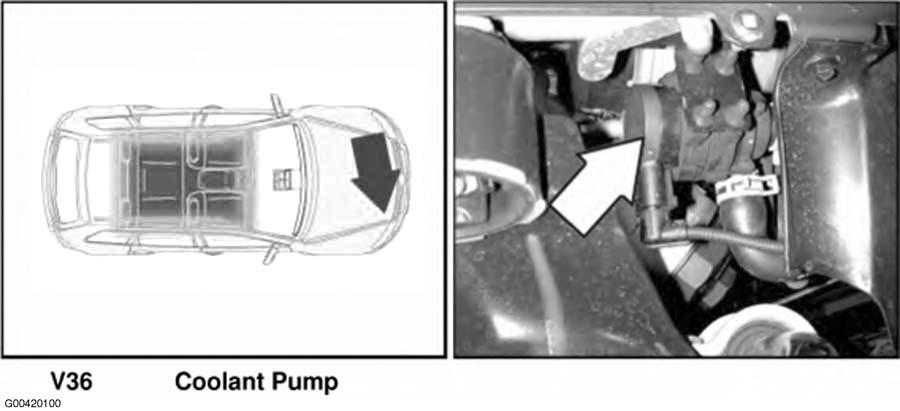

Fig 20: Front Of Vehicle

G00420100

Courtesy of VOLKSWAGEN UNITED STATES, INC.

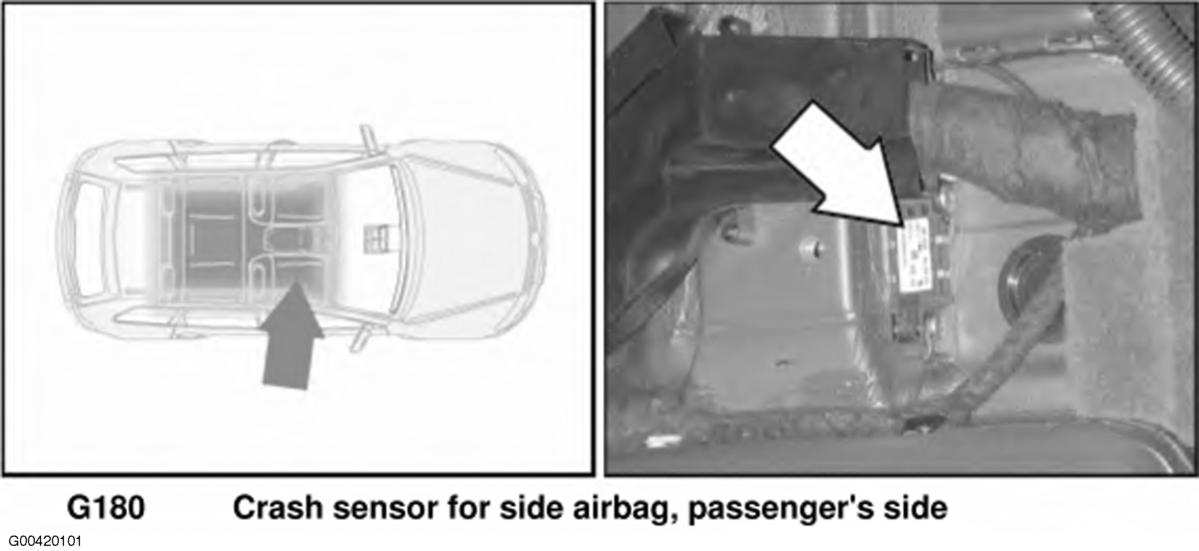

Fig 21: Right Front Floor

G00420101

Courtesy of VOLKSWAGEN UNITED STATES, INC.

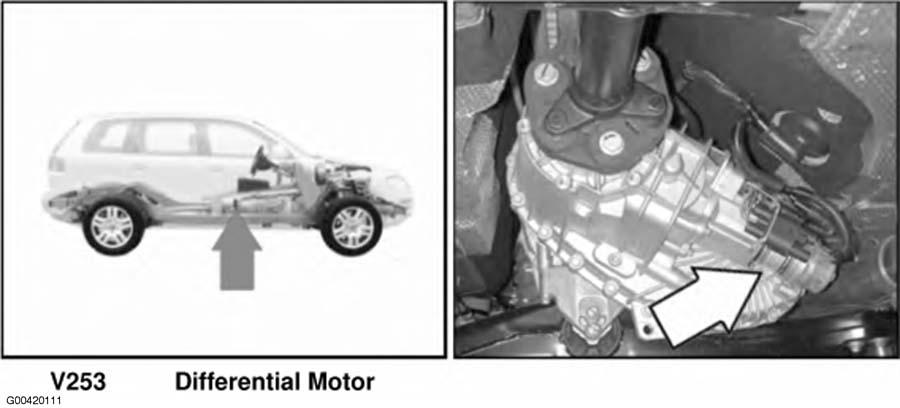

Fig 22: Under Center Of Vehicle

G00420111

Courtesy of VOLKSWAGEN UNITED STATES, INC.

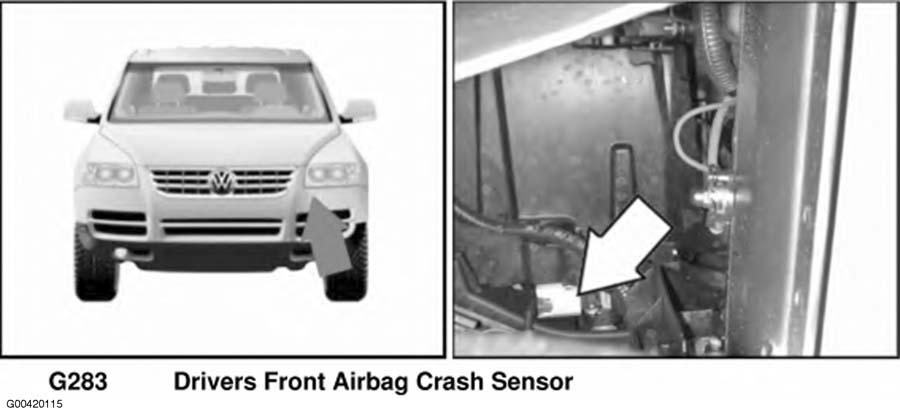

Fig 23: Front Of Vehicle

G00420115

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 24: Center Console

G00420120

Courtesy of VOLKSWAGEN UNITED STATES, INC.

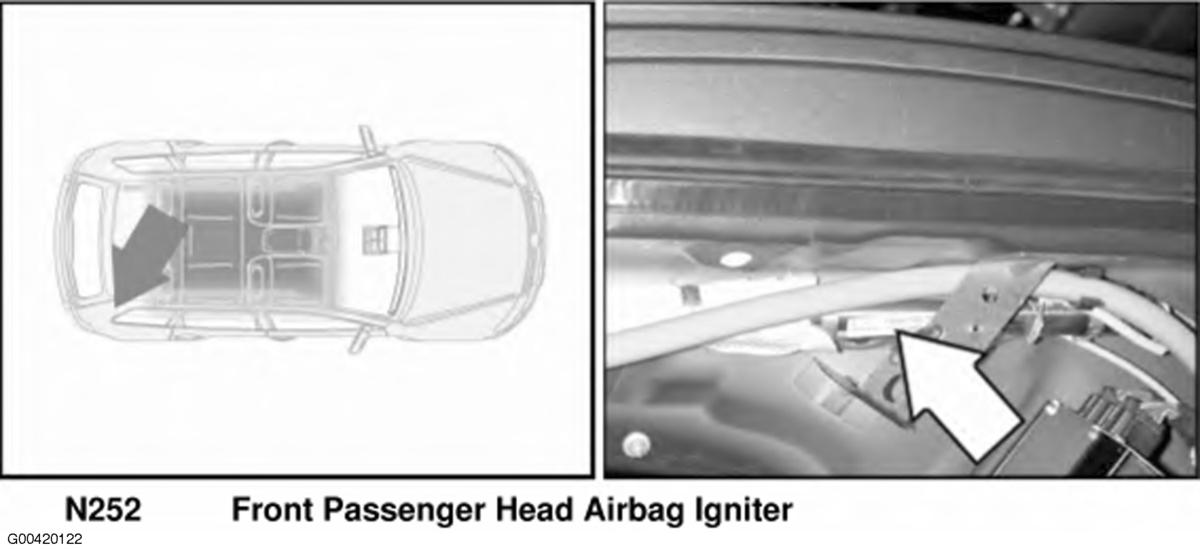

Fig 25: Right Rear Of Vehicle

G00420122

Courtesy of VOLKSWAGEN UNITED STATES, INC.

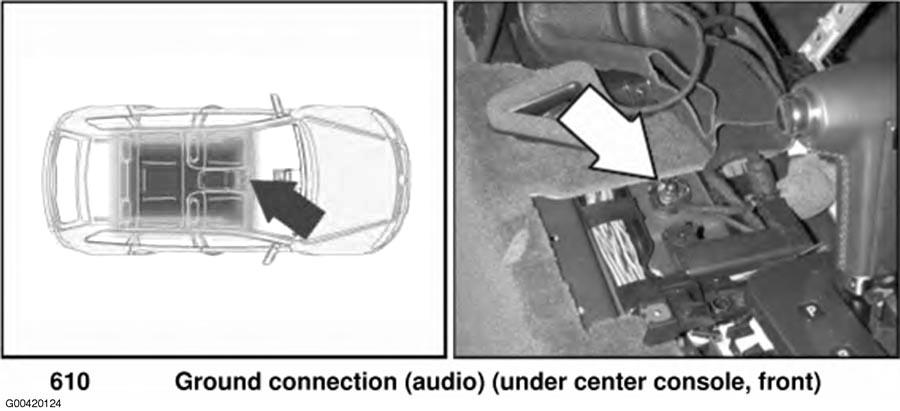

Fig 26: Center Console

G00420124

Courtesy of VOLKSWAGEN UNITED STATES, INC.

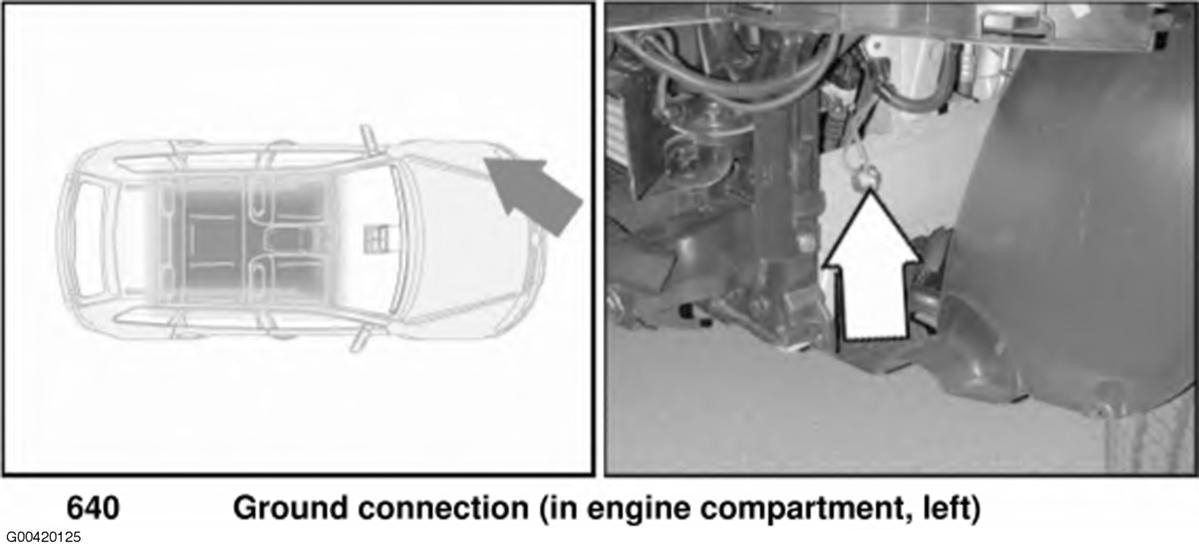

Fig 27: Left Side Of Engine Compartment

G00420125

Courtesy of VOLKSWAGEN UNITED STATES, INC.

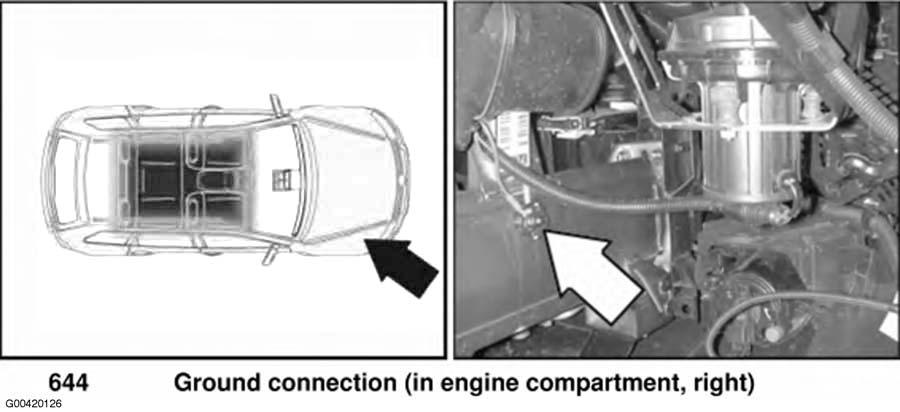

Fig 28: Right Side Of Engine Compartment

G00420126

Courtesy of VOLKSWAGEN UNITED STATES, INC.

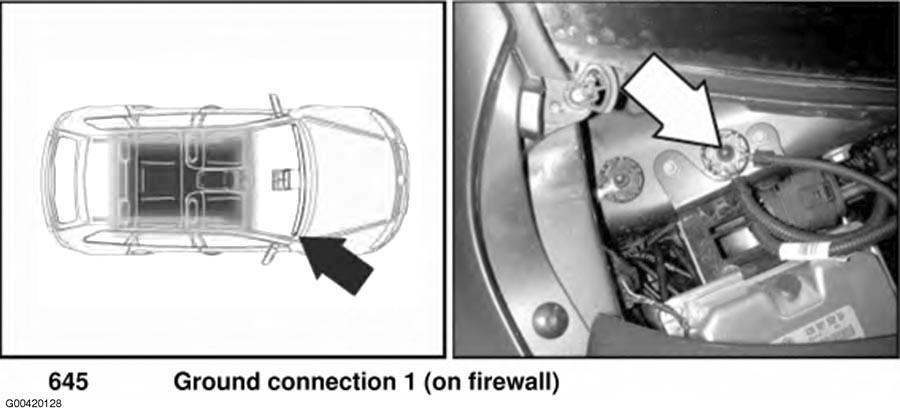

Fig 29: Right Rear Of Engine Compartment

G00420128

Courtesy of VOLKSWAGEN UNITED STATES, INC.

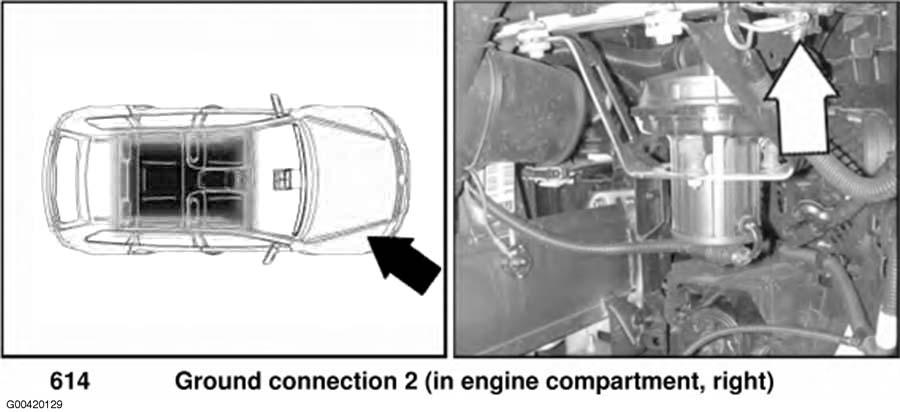

Fig 30: Right Side Of Engine Compartment

G00420129

Courtesy of VOLKSWAGEN UNITED STATES, INC.

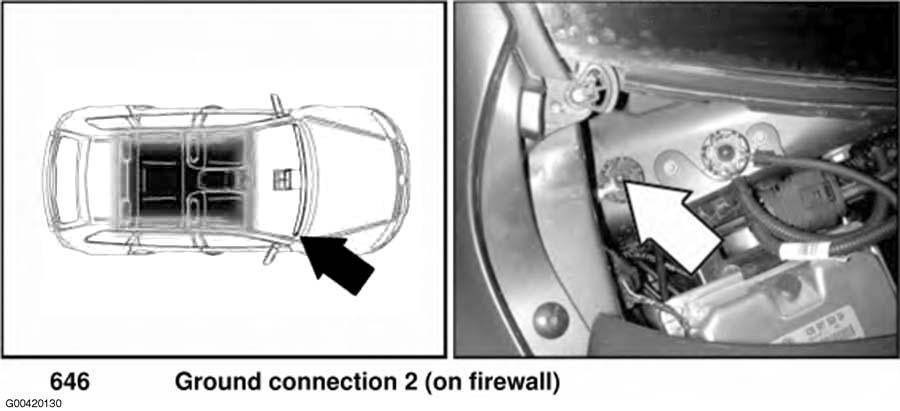

Fig 31: Right Rear Of Engine Compartment

G00420130

Courtesy of VOLKSWAGEN UNITED STATES, INC.

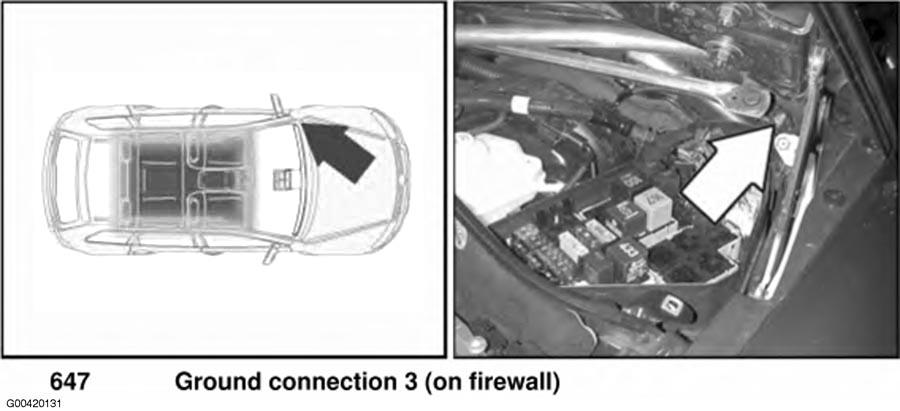

Fig 32: Left Rear Of Engine Compartment

G00420131

Courtesy of VOLKSWAGEN UNITED STATES, INC.

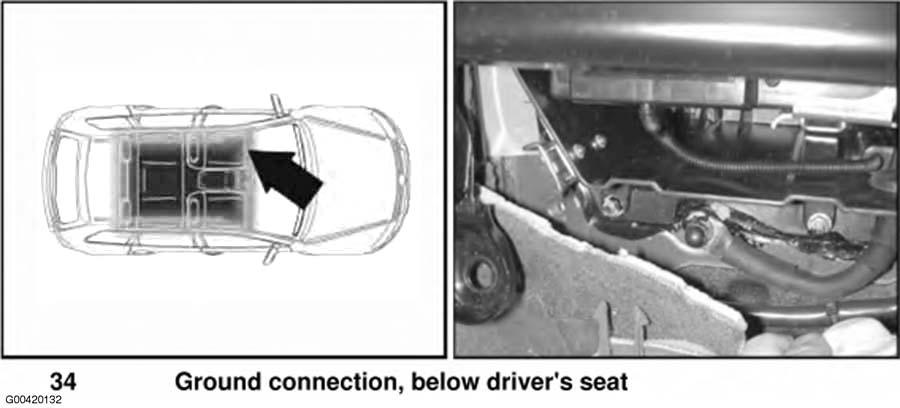

Fig 33: Left Front Floor

G00420132

Courtesy of VOLKSWAGEN UNITED STATES, INC.

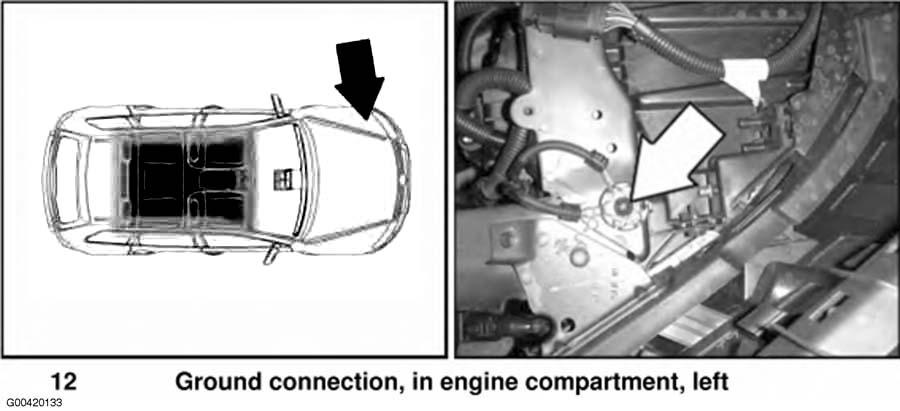

Fig 34: Left Side Of Engine Compartment

G00420133

Courtesy of VOLKSWAGEN UNITED STATES, INC.

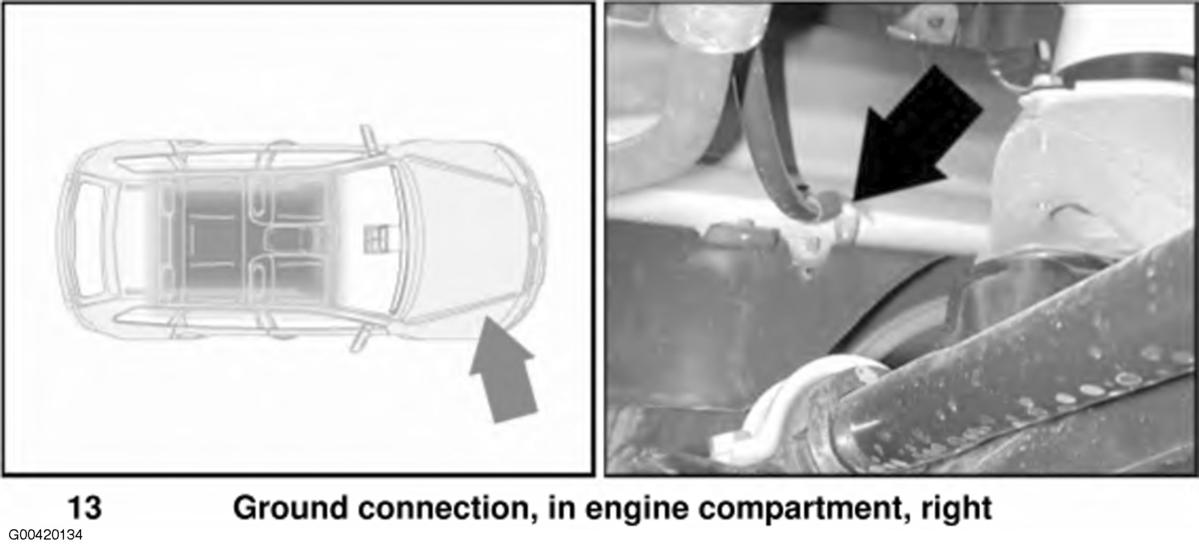

Fig 35: Right Side Of Engine Compartment

G00420134

Courtesy of VOLKSWAGEN UNITED STATES, INC.

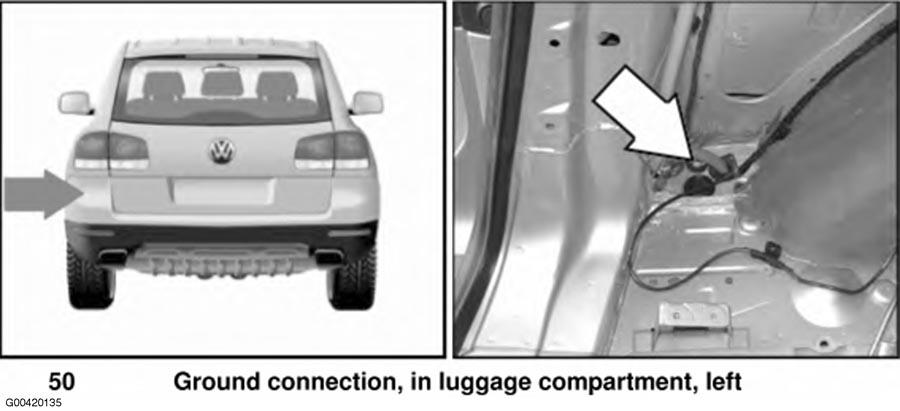

Fig 36: Rear Of Vehicle

G00420135

Courtesy of VOLKSWAGEN UNITED STATES, INC.

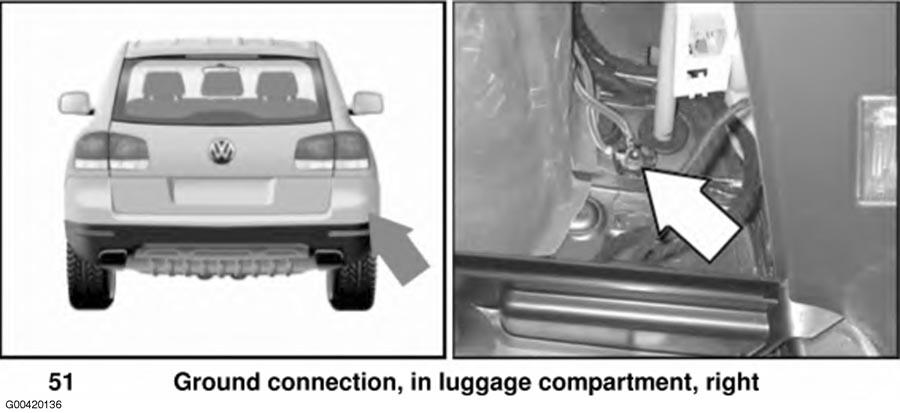

Fig 37: Rear Of Vehicle

G00420136

Courtesy of VOLKSWAGEN UNITED STATES, INC.

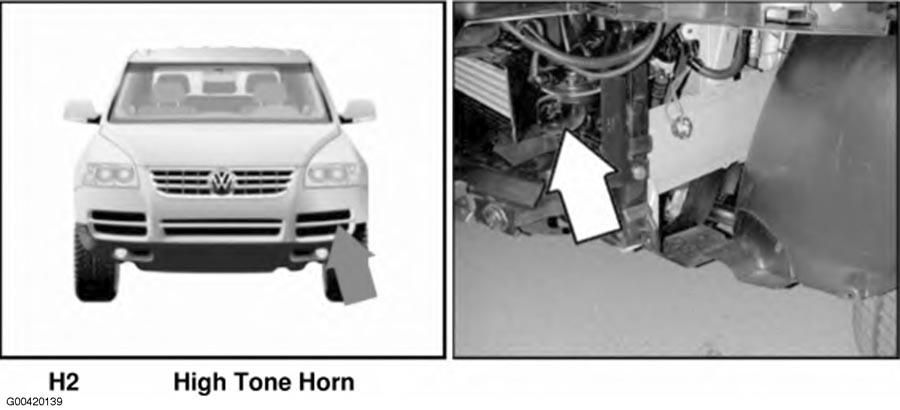

Fig 38: Left Front Of Vehicle

G00420139

Courtesy of VOLKSWAGEN UNITED STATES, INC.

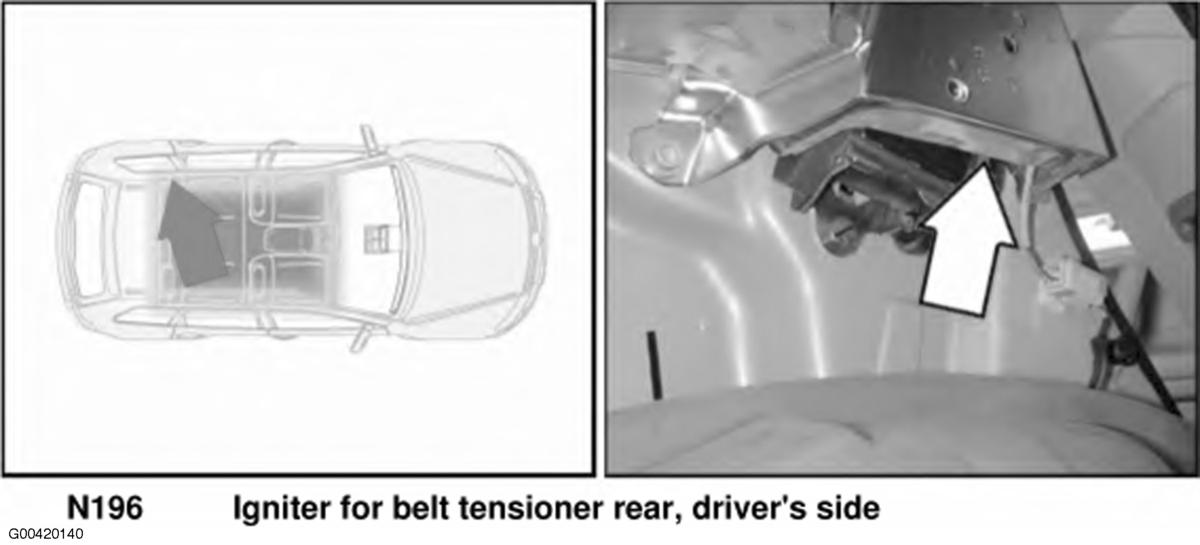

Fig 39: Left "C" Pillar

G00420140

Courtesy of VOLKSWAGEN UNITED STATES, INC.

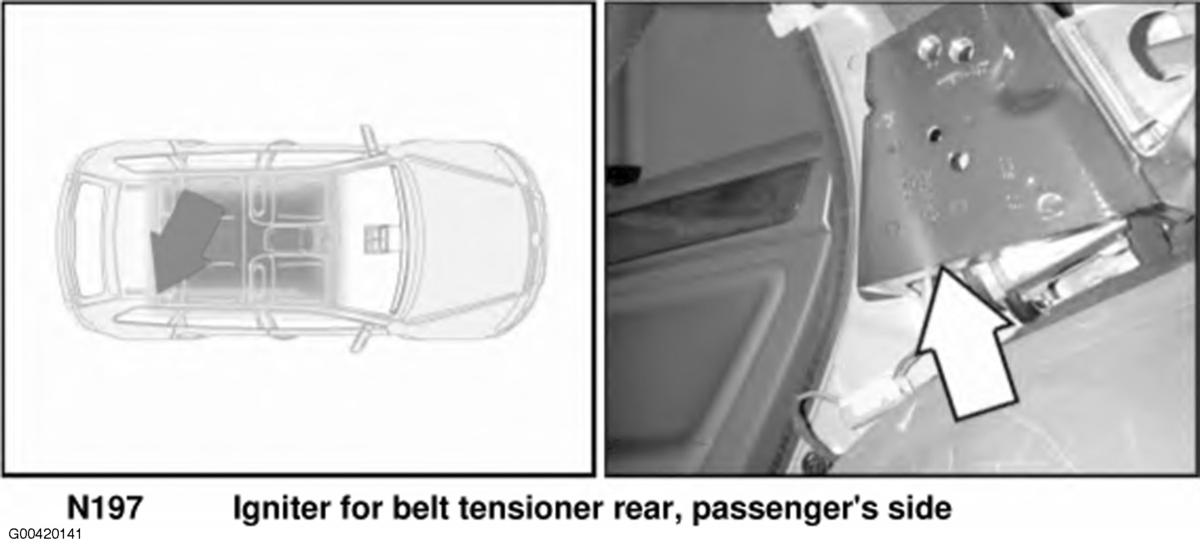

Fig 40: Right "C" Pillar

G00420141

Courtesy of VOLKSWAGEN UNITED STATES, INC.

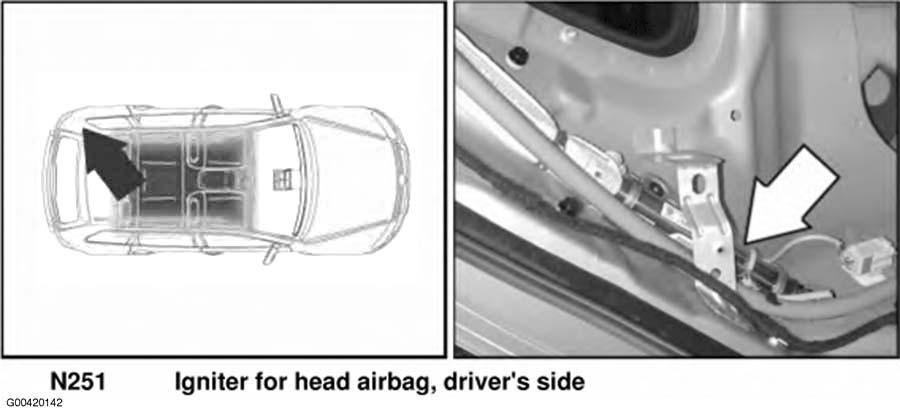

Fig 41: Left Side Of Luggage Compartment

G00420142

Courtesy of VOLKSWAGEN UNITED STATES, INC.

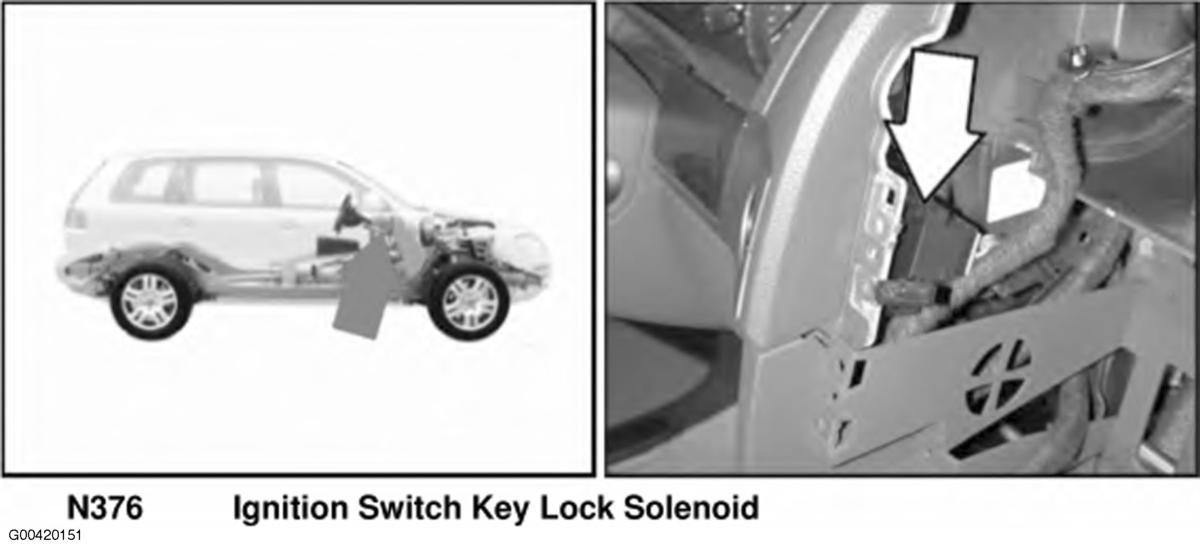

Fig 42: Right Side Of Dash

G00420151

Courtesy of VOLKSWAGEN UNITED STATES, INC.

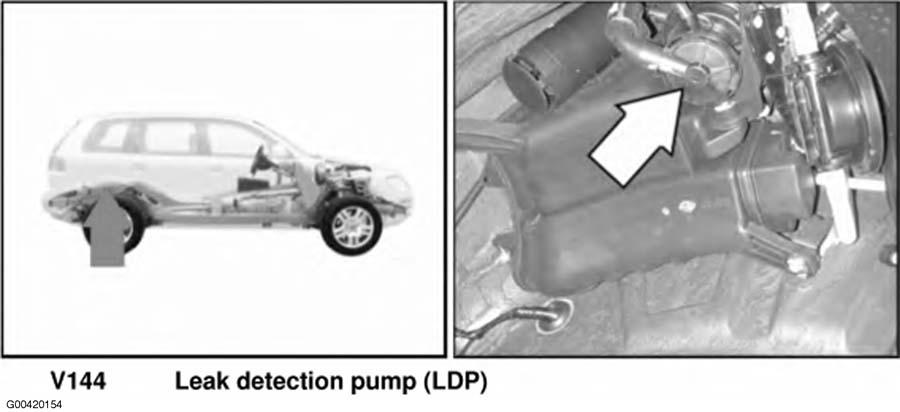

Fig 43: Right Rear Of Vehicle

G00420154

Courtesy of VOLKSWAGEN UNITED STATES, INC.

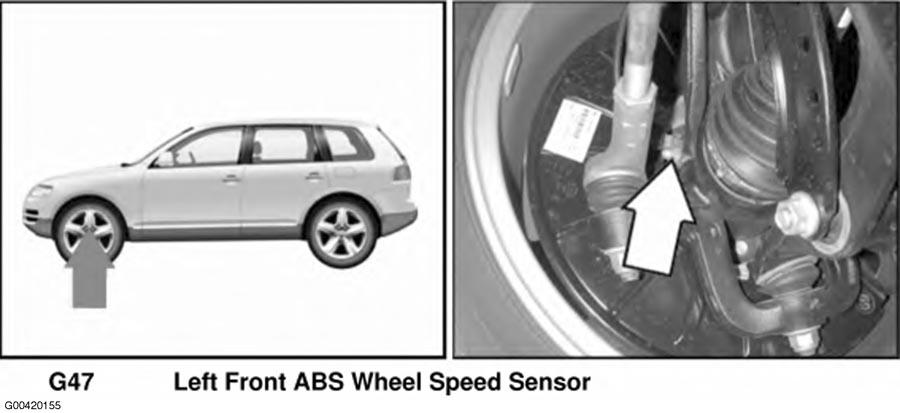

Fig 44: Left Front Wheel

G00420155

Courtesy of VOLKSWAGEN UNITED STATES, INC.

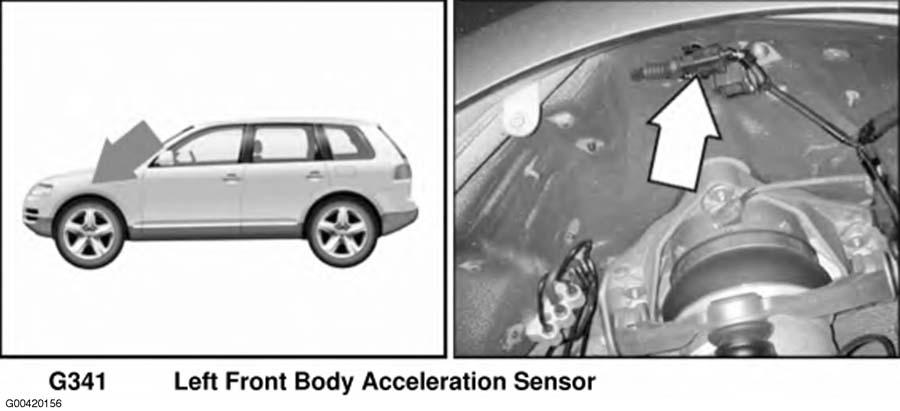

Fig 45: Left Front Of Vehicle

G00420156

Courtesy of VOLKSWAGEN UNITED STATES, INC.

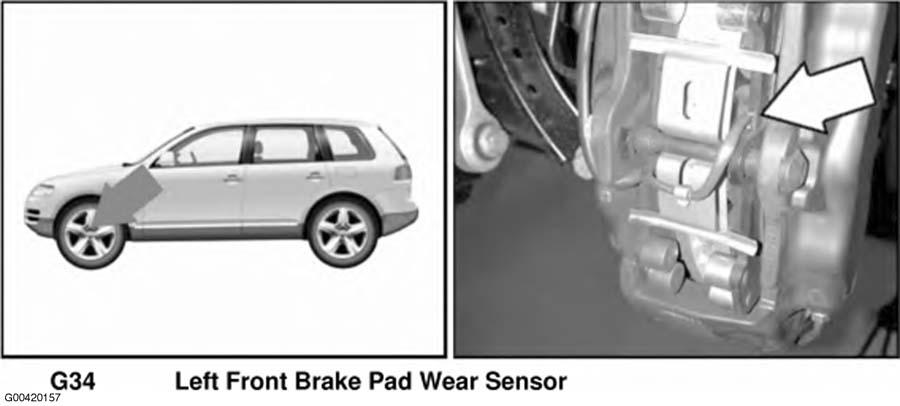

Fig 46: Left Front Wheel

G00420157

Courtesy of VOLKSWAGEN UNITED STATES, INC.

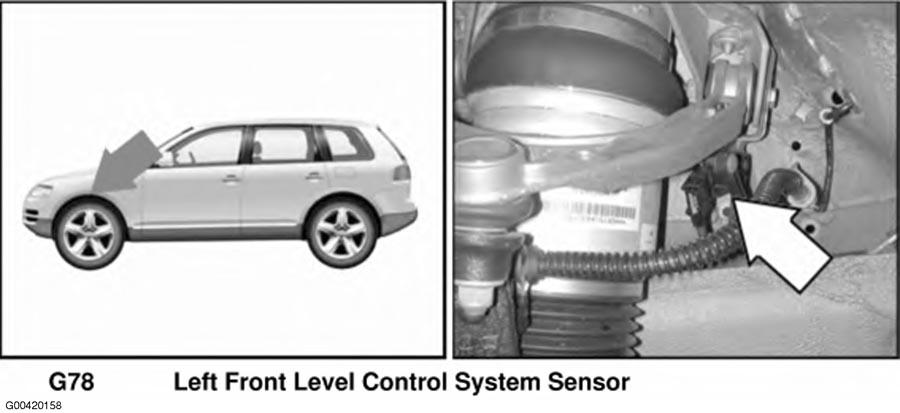

Fig 47: Left Front Of Vehicle

G00420158

Courtesy of VOLKSWAGEN UNITED STATES, INC.

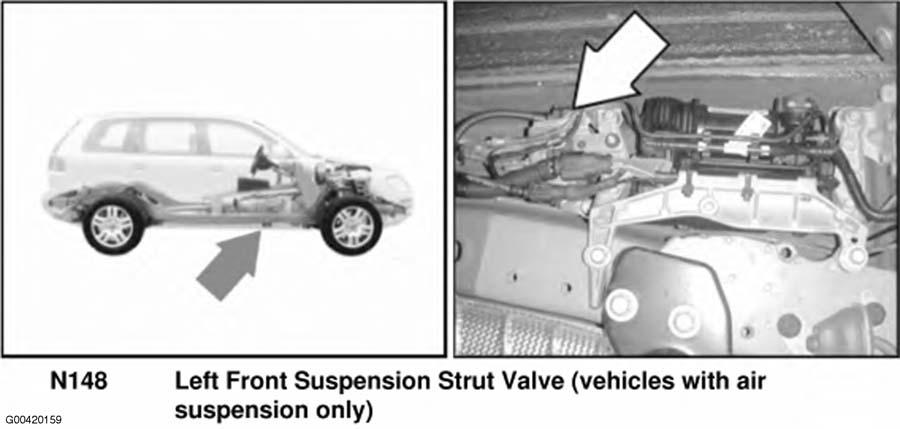

Fig 48: Under Vehicle

G00420159

Courtesy of VOLKSWAGEN UNITED STATES, INC.

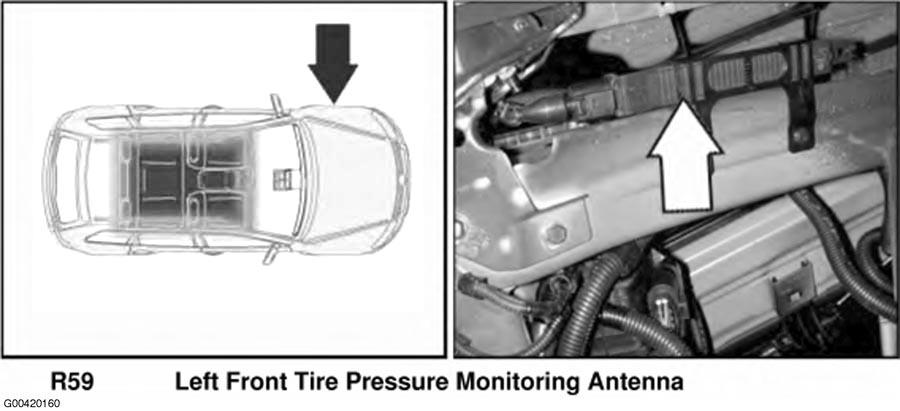

Fig 49: Left Front Of Vehicle

G00420160

Courtesy of VOLKSWAGEN UNITED STATES, INC.

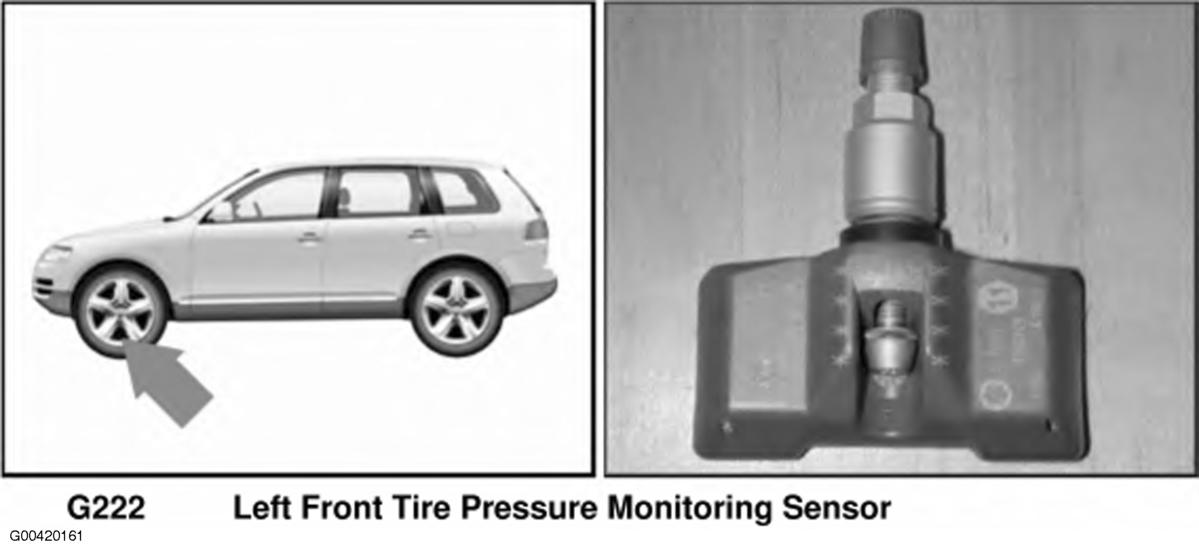

Fig 50: Left Front Wheel

G00420161

Courtesy of VOLKSWAGEN UNITED STATES, INC.

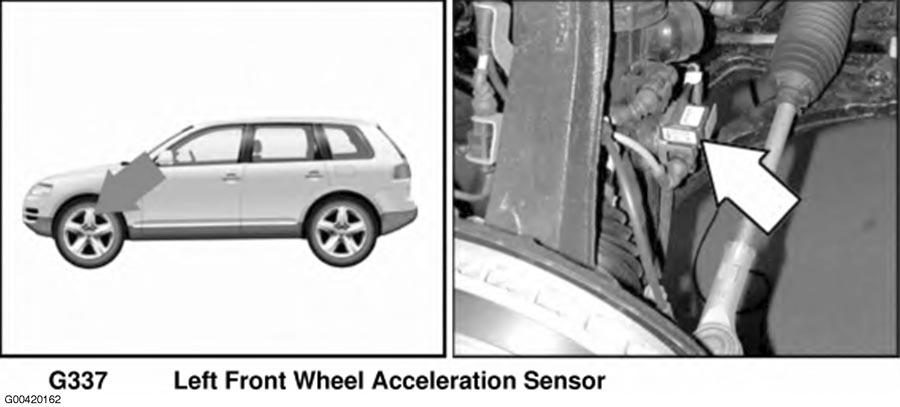

Fig 51: Left Front Of Vehicle

G00420162

Courtesy of VOLKSWAGEN UNITED STATES, INC.

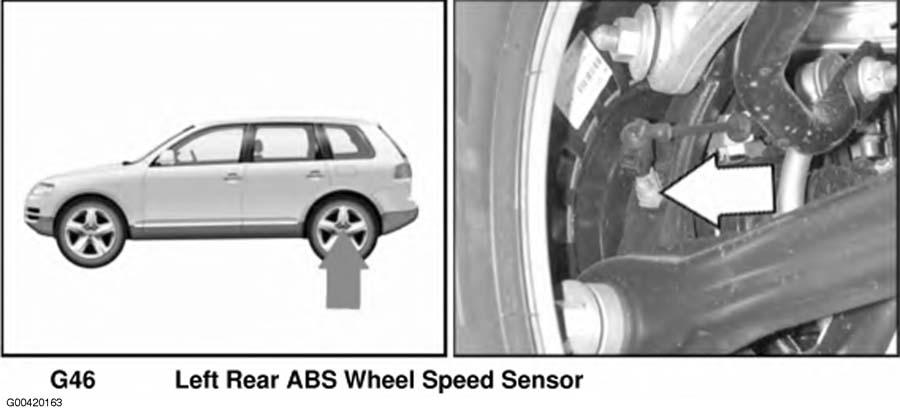

Fig 52: Left Rear Wheel

G00420163

Courtesy of VOLKSWAGEN UNITED STATES, INC.

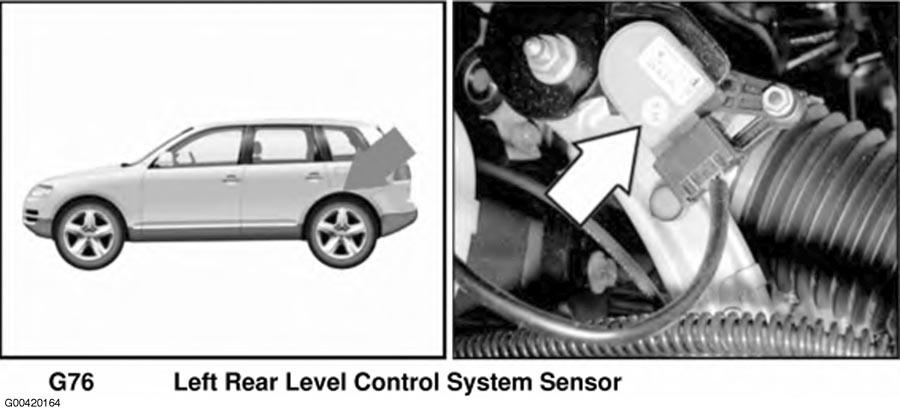

Fig 53: Left Rear Wheel

G00420164

Courtesy of VOLKSWAGEN UNITED STATES, INC.

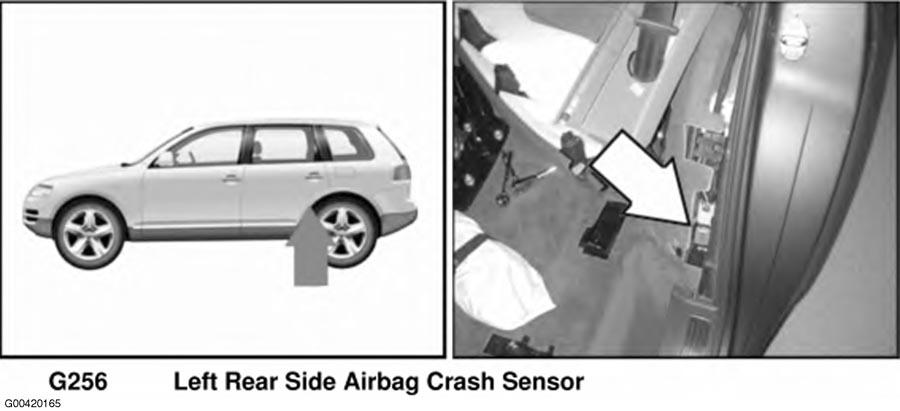

Fig 54: Left Side Of Vehicle

G00420165

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 55: Under Vehicle

G00420166

Courtesy of VOLKSWAGEN UNITED STATES, INC.

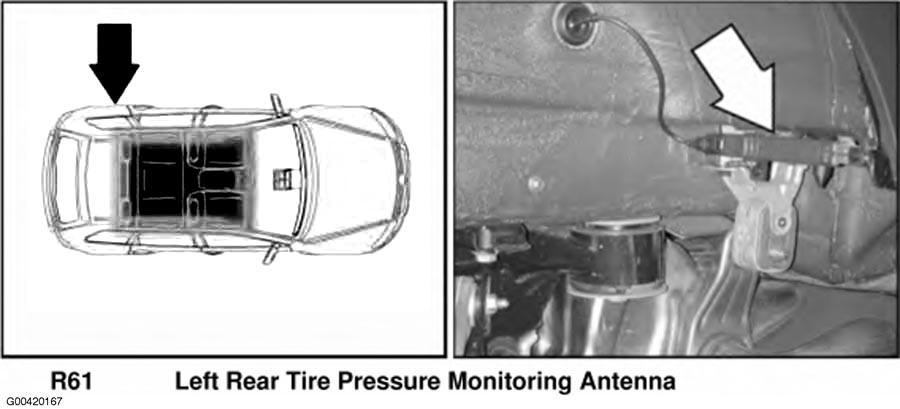

Fig 56: Left Rear Of Vehicle

G00420167

Courtesy of VOLKSWAGEN UNITED STATES, INC.

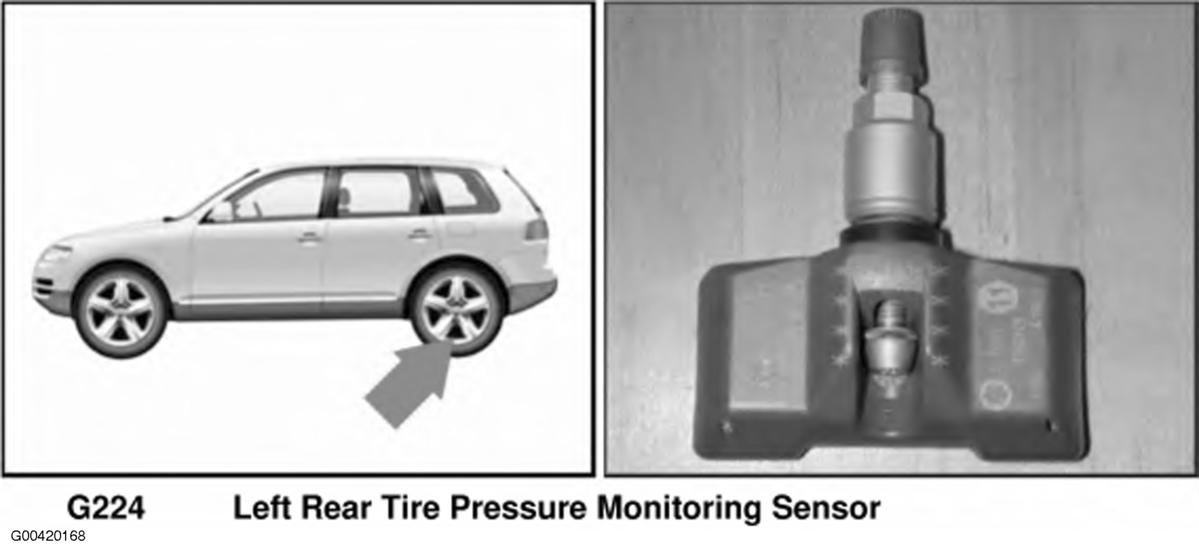

Fig 57: Left Rear Of Vehicle

G00420168

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 58: Under Vehicle

G00420169

Courtesy of VOLKSWAGEN UNITED STATES, INC.

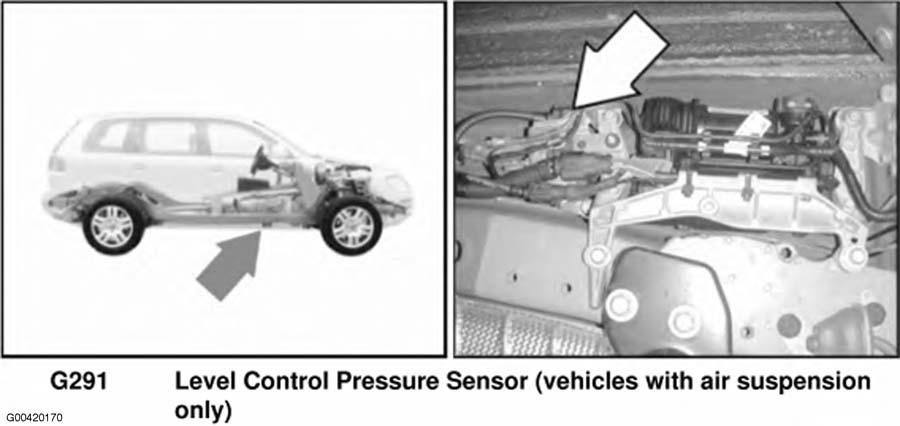

Fig 59: Under Vehicle

G00420170

Courtesy of VOLKSWAGEN UNITED STATES, INC.

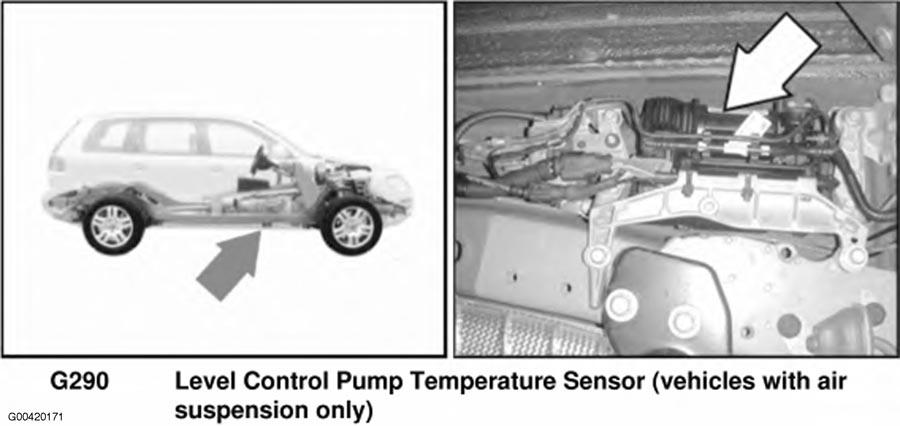

Fig 60: Under Vehicle

G00420171

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 61: Right Rear Of Vehicle

G00420172

Courtesy of VOLKSWAGEN UNITED STATES, INC.

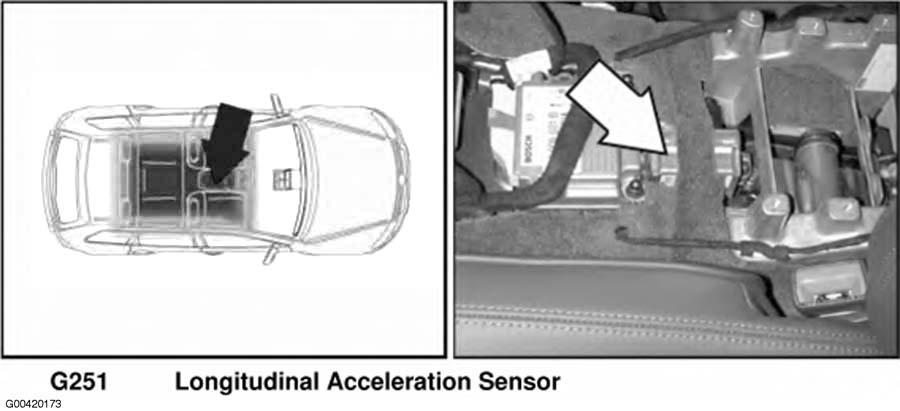

Fig 62: Center Console

G00420173

Courtesy of VOLKSWAGEN UNITED STATES, INC.

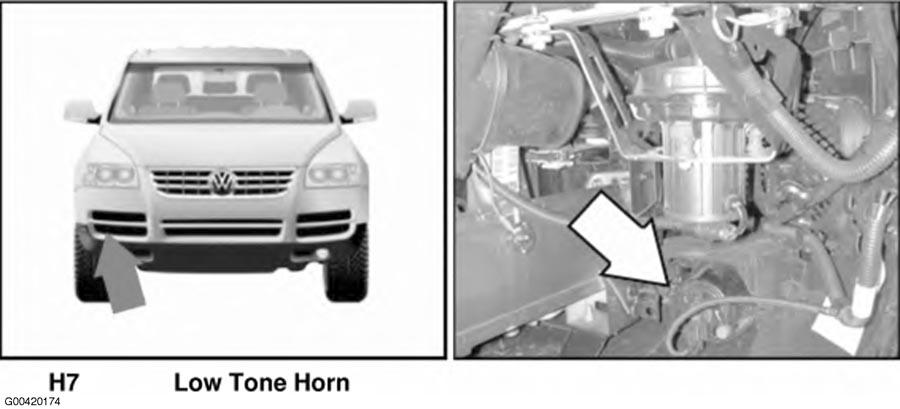

Fig 63: Right Front Of Vehicle

G00420174

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 64: Below Driver's Seat

G00478940

Courtesy of VOLKSWAGEN UNITED STATES, INC.

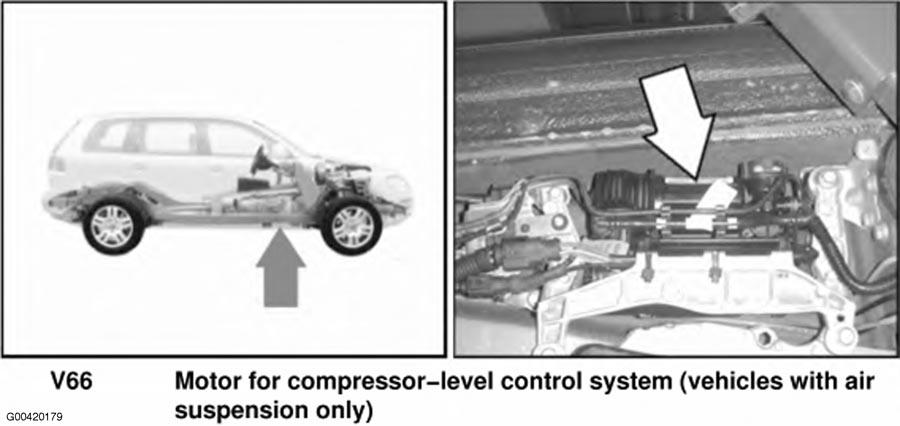

Fig 65: Under Vehicle

G00420179

Courtesy of VOLKSWAGEN UNITED STATES, INC.

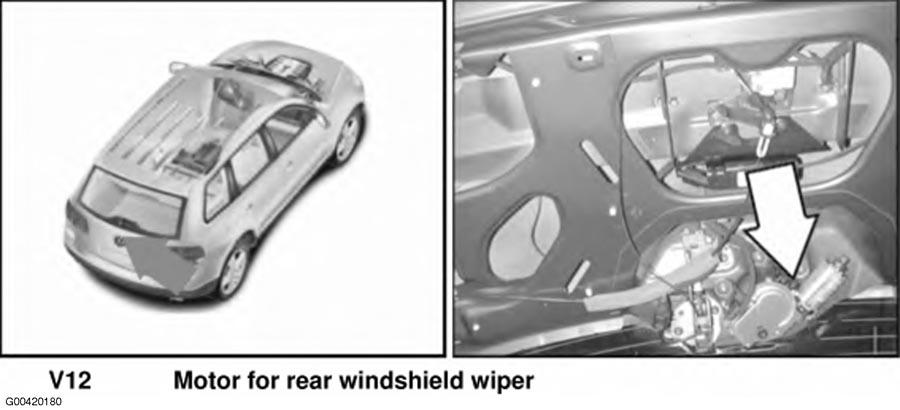

Fig 66: Tailgate

G00420180

Courtesy of VOLKSWAGEN UNITED STATES, INC.

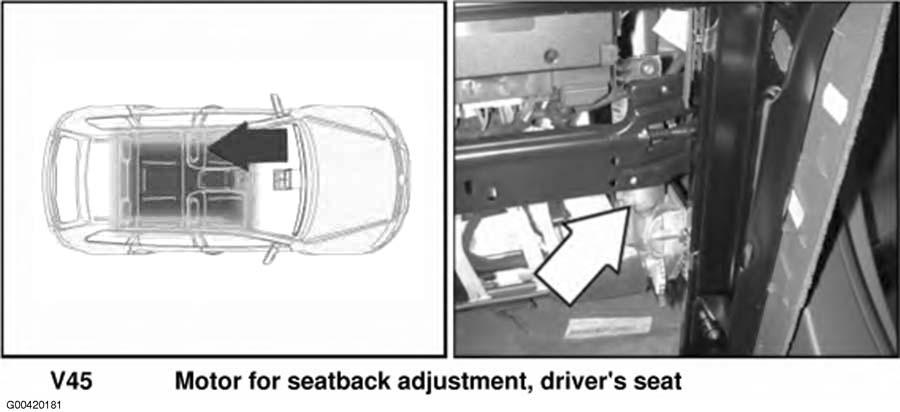

Fig 67: Driver's Seat

G00420181

Courtesy of VOLKSWAGEN UNITED STATES, INC.

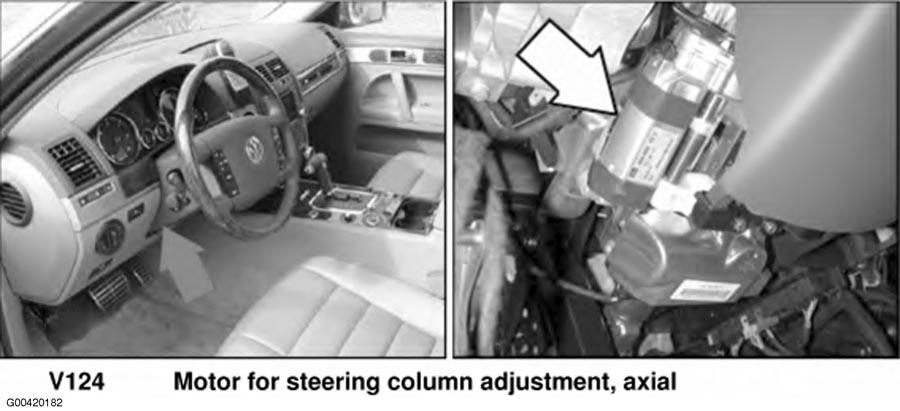

Fig 68: Steering Column

G00420182

Courtesy of VOLKSWAGEN UNITED STATES, INC.

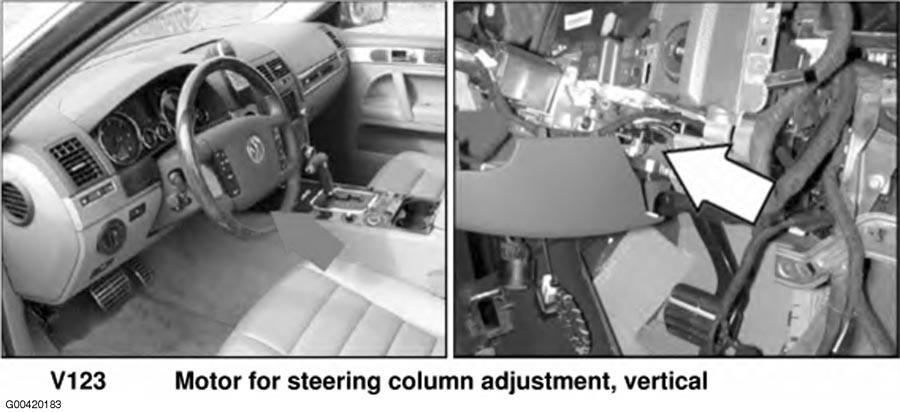

Fig 69: Steering Column

G00420183

Courtesy of VOLKSWAGEN UNITED STATES, INC.

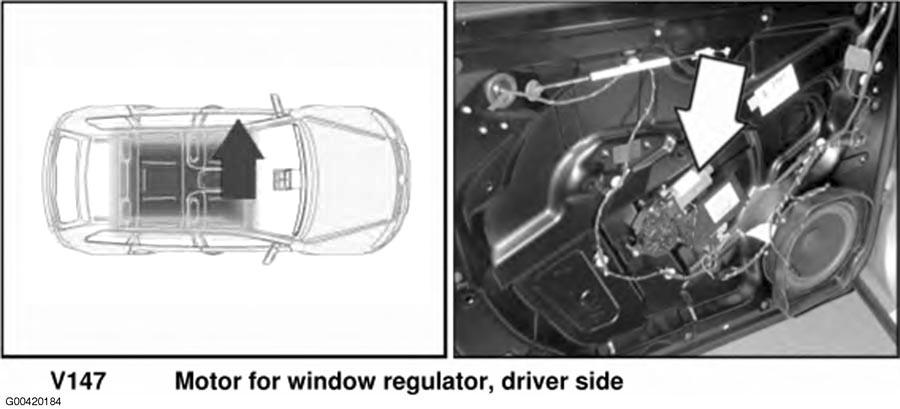

Fig 70: Driver's Door

G00420184

Courtesy of VOLKSWAGEN UNITED STATES, INC.

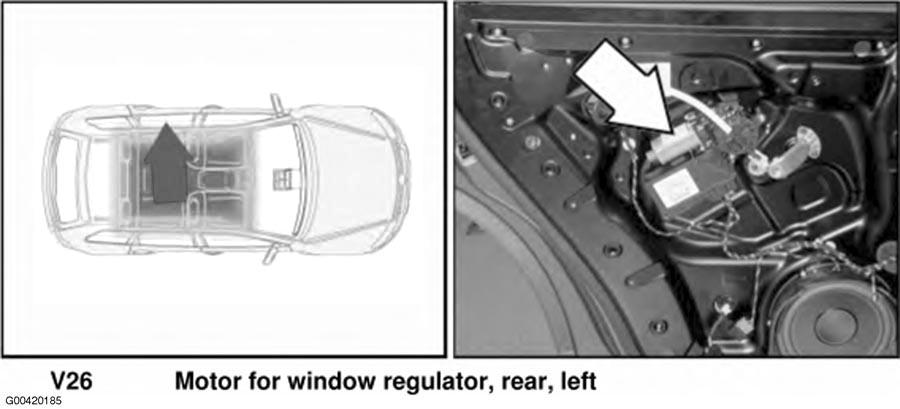

Fig 71: Left Rear Door

G00420185

Courtesy of VOLKSWAGEN UNITED STATES, INC.

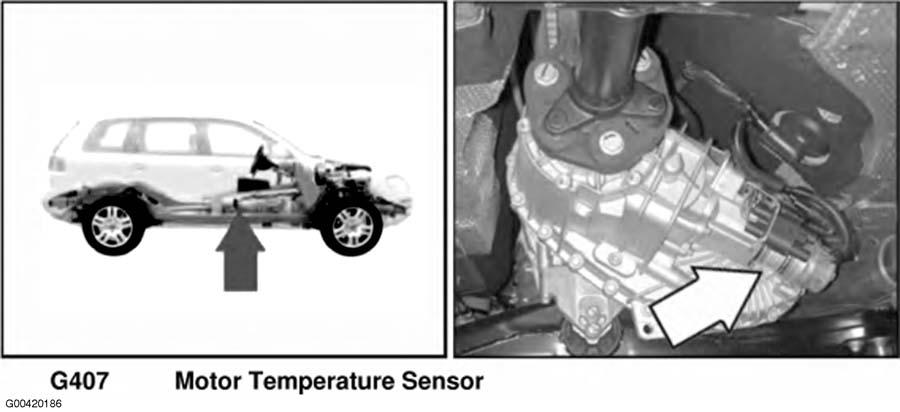

Fig 72: Center Differential

G00420186

Courtesy of VOLKSWAGEN UNITED STATES, INC.

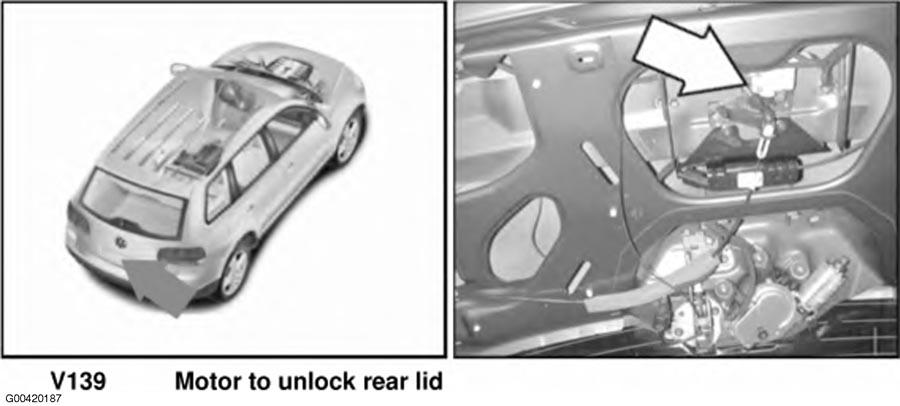

Fig 73: Tailgate

G00420187

Courtesy of VOLKSWAGEN UNITED STATES, INC.

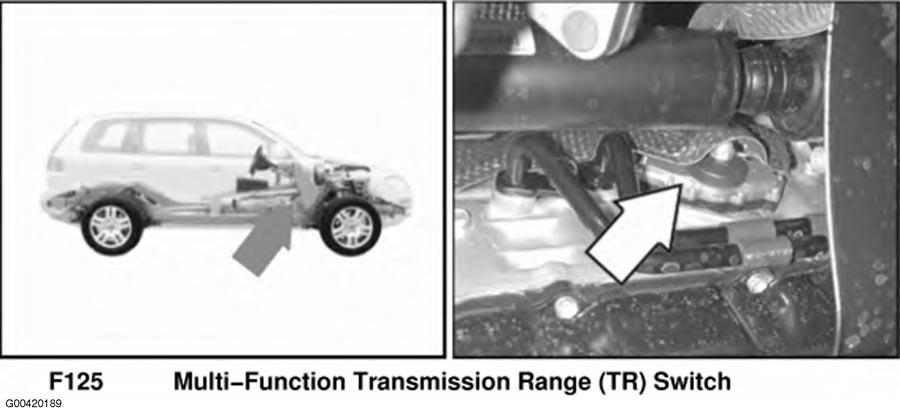

Fig 74: Under Vehicle

G00420189

Courtesy of VOLKSWAGEN UNITED STATES, INC.

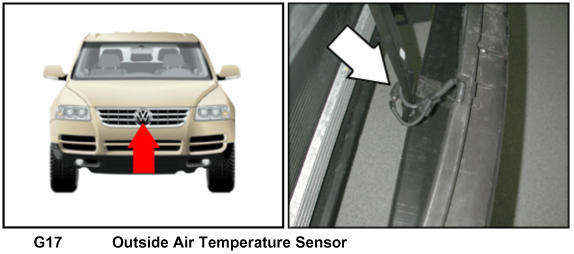

Fig 75: Front Of Vehicle

G00460057

Courtesy of VOLKSWAGEN UNITED STATES, INC.

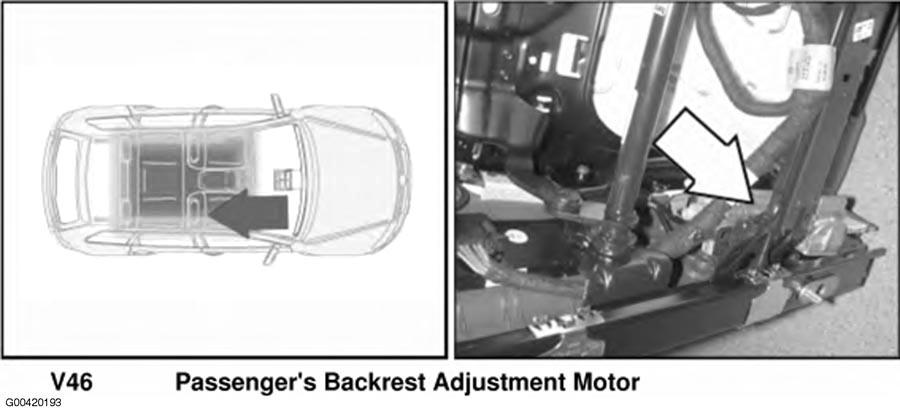

Fig 76: Passenger's Seat

G00420193

Courtesy of VOLKSWAGEN UNITED STATES, INC.

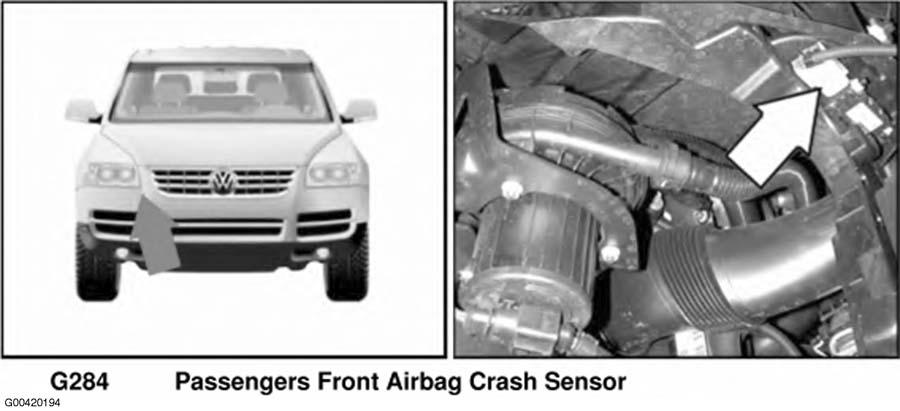

Fig 77: Right Front Of Vehicle

G00420194

Courtesy of VOLKSWAGEN UNITED STATES, INC.

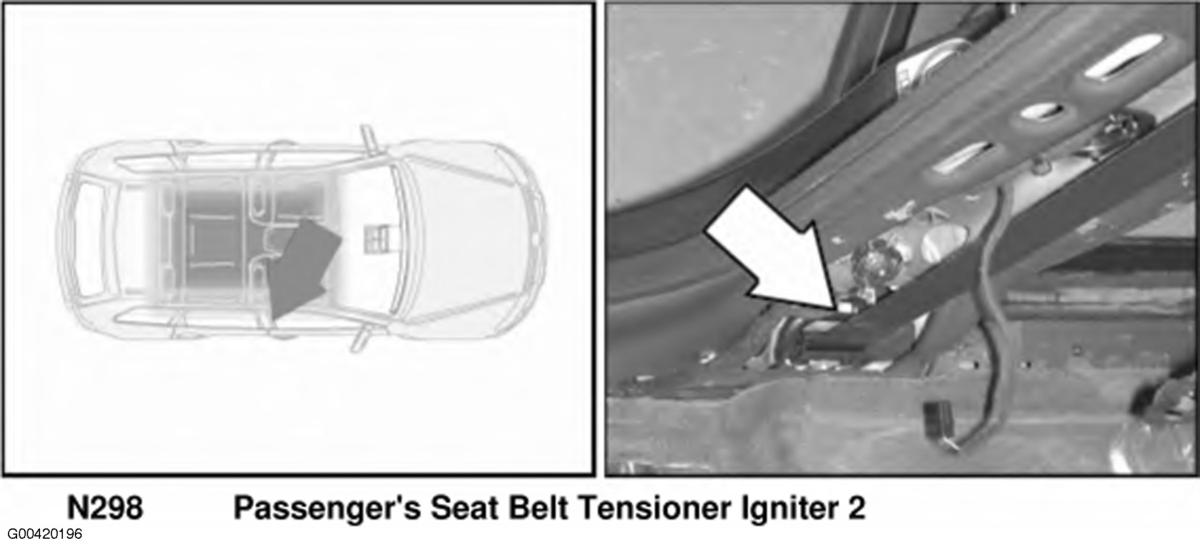

Fig 78: Right "B" Pillar

G00420196

Courtesy of VOLKSWAGEN UNITED STATES, INC.

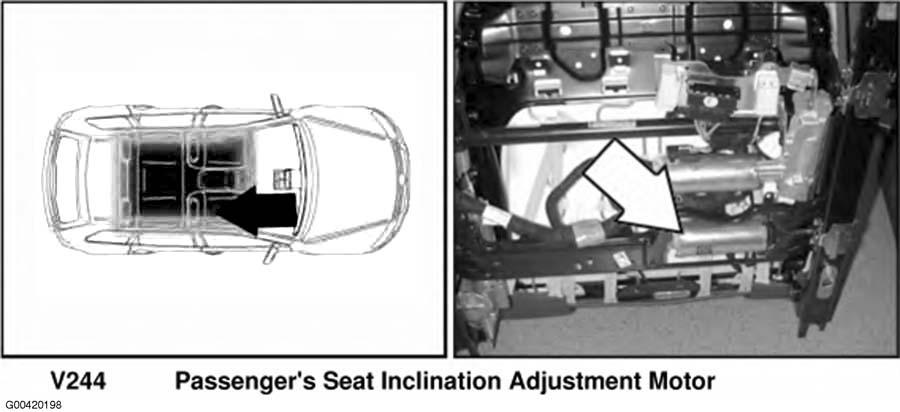

Fig 79: Below Passenger's Seat

G00420198

Courtesy of VOLKSWAGEN UNITED STATES, INC.

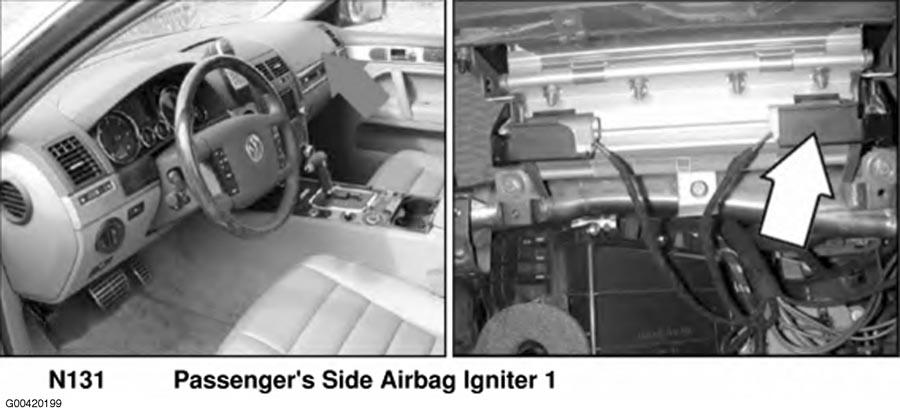

Fig 80: Right Side Of Dash

G00420199

Courtesy of VOLKSWAGEN UNITED STATES, INC.

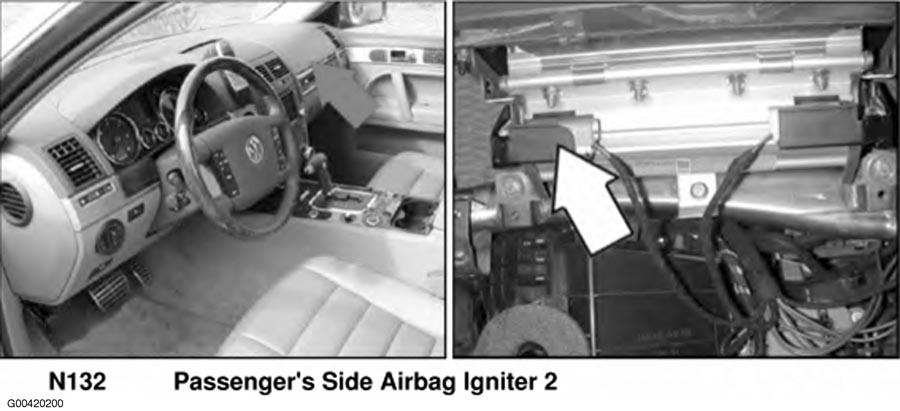

Fig 81: Right Side Of Dash

G00420200

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 82: Center Of Roof

G00420202

Courtesy of VOLKSWAGEN UNITED STATES, INC.

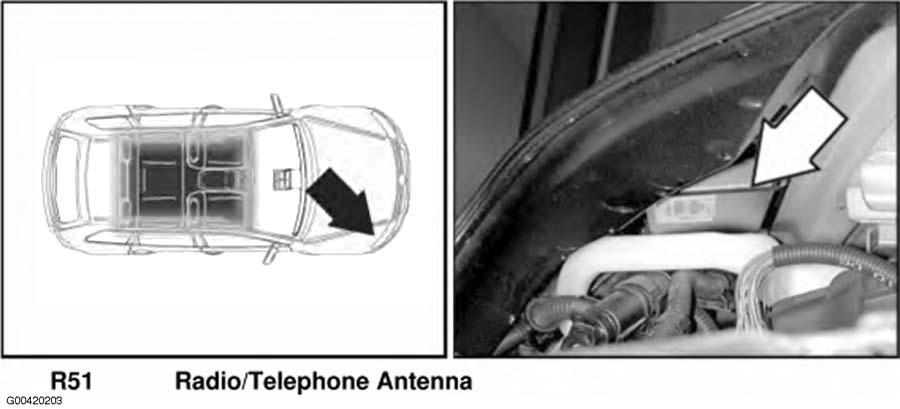

Fig 83: Right Front Of Vehicle

G00420203

Courtesy of VOLKSWAGEN UNITED STATES, INC.

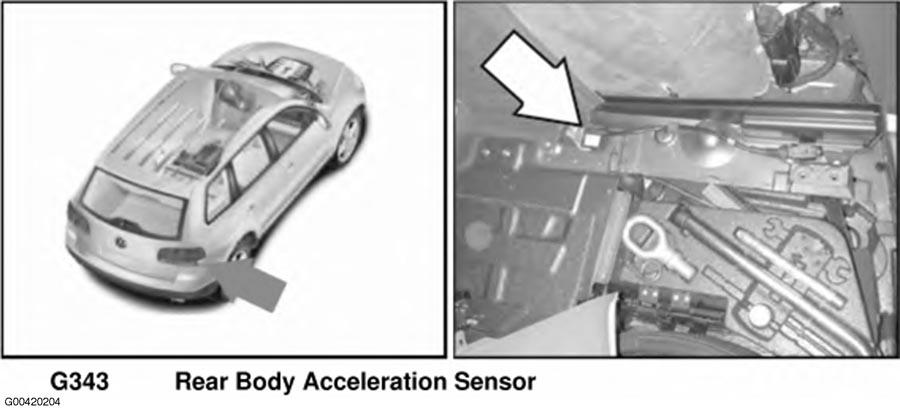

Fig 84: Right Rear Of Vehicle

G00420204

Courtesy of VOLKSWAGEN UNITED STATES, INC.

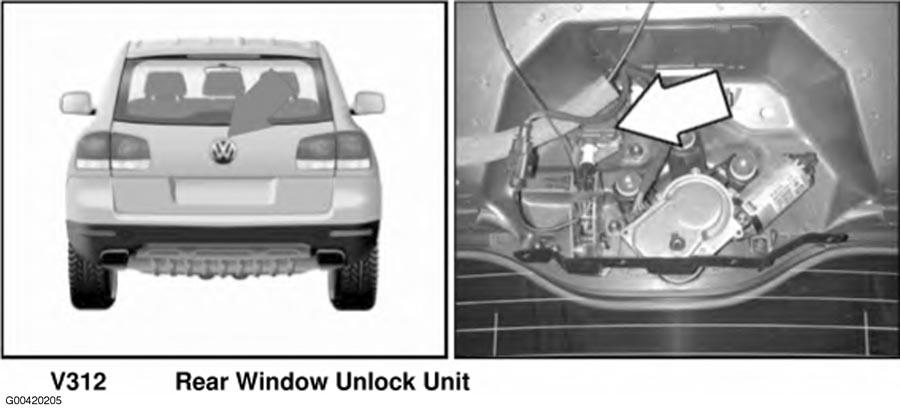

Fig 85: Tailgate

G00420205

Courtesy of VOLKSWAGEN UNITED STATES, INC.

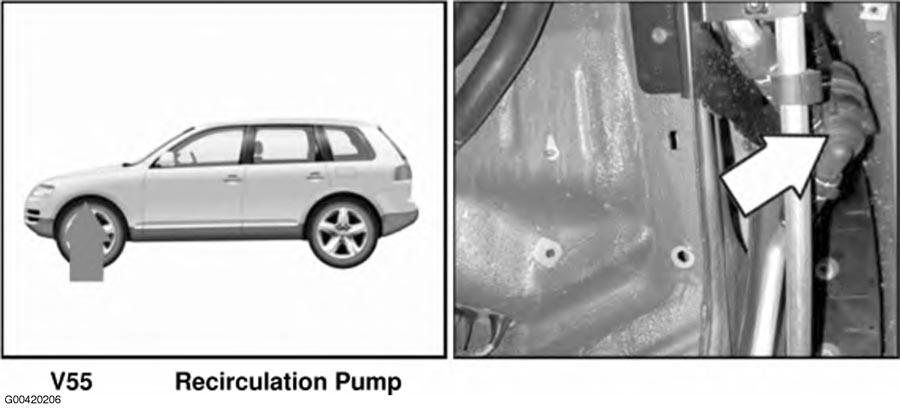

Fig 86: Left Front Fender

G00420206

Courtesy of VOLKSWAGEN UNITED STATES, INC.

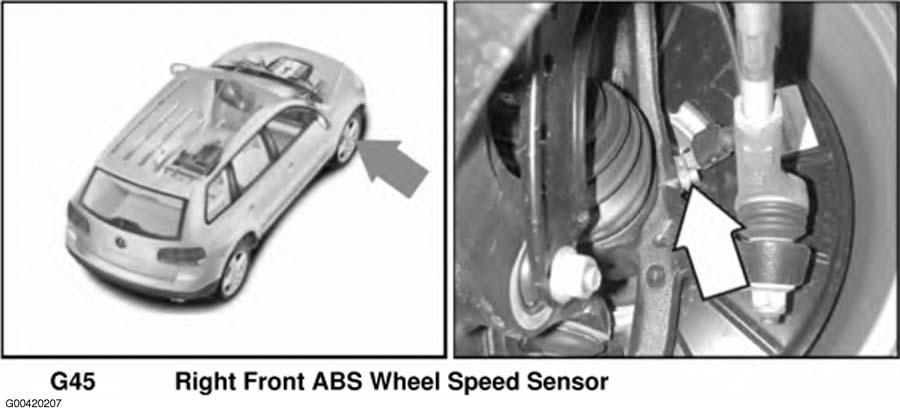

Fig 87: Right Front Wheel

G00420207

Courtesy of VOLKSWAGEN UNITED STATES, INC.

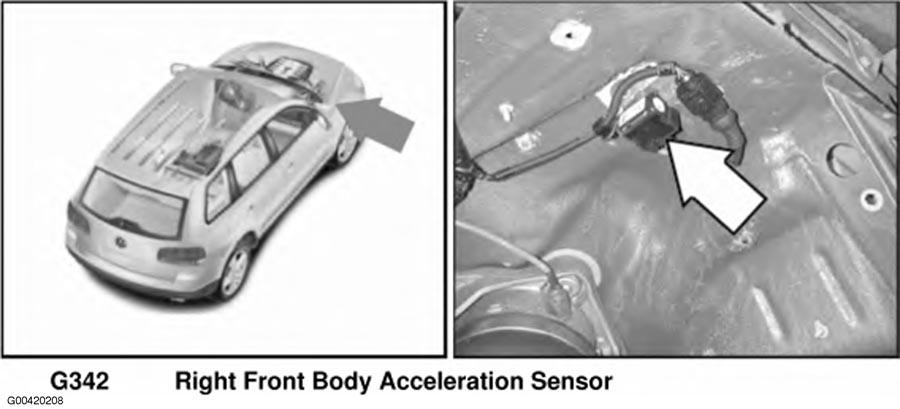

Fig 88: Right Front Of Vehicle

G00420208

Courtesy of VOLKSWAGEN UNITED STATES, INC.

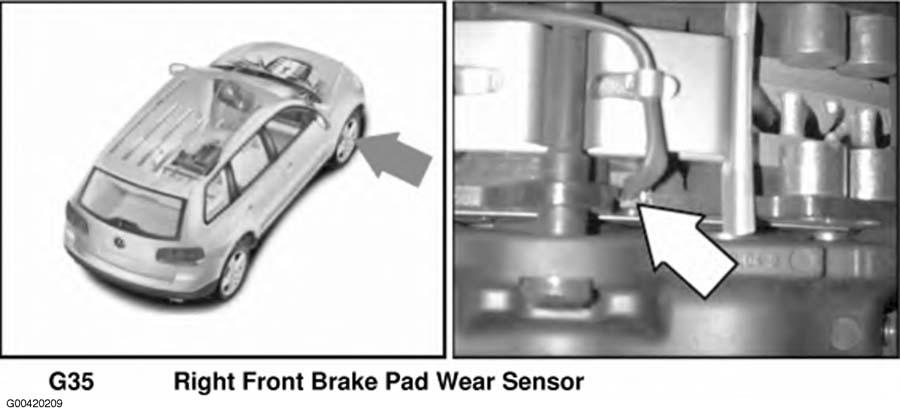

Fig 89: Right Front Wheel

G00420209

Courtesy of VOLKSWAGEN UNITED STATES, INC.

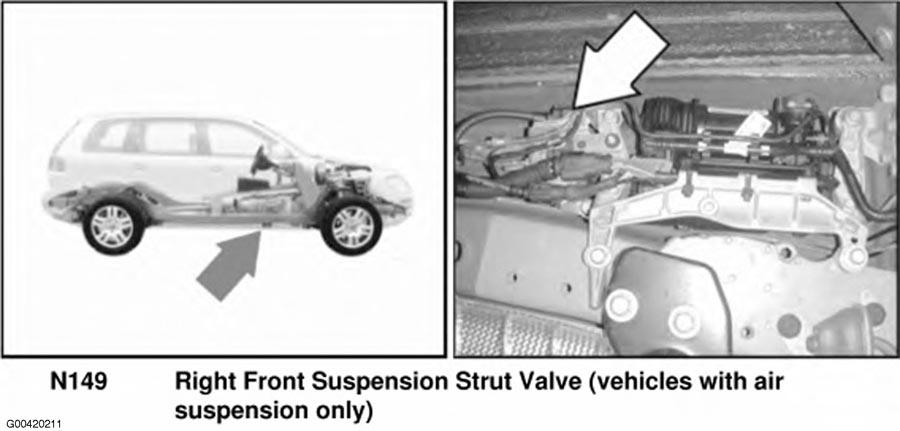

Fig 90: Under Vehicle

G00420211

Courtesy of VOLKSWAGEN UNITED STATES, INC.

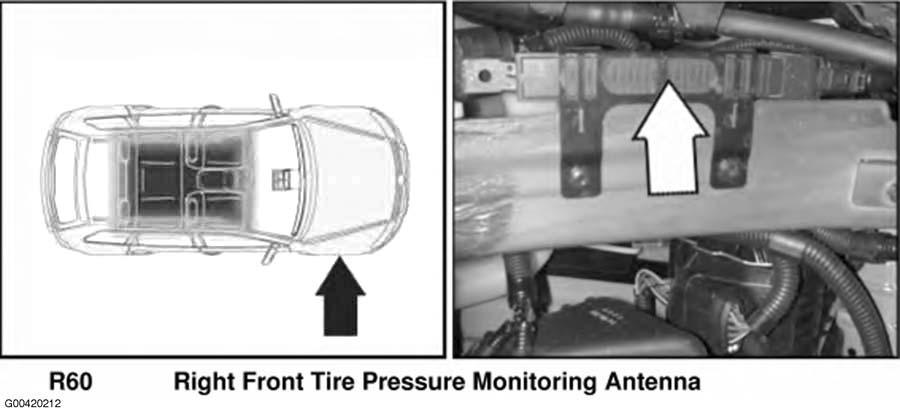

Fig 91: Right Front Of Vehicle

G00420212

Courtesy of VOLKSWAGEN UNITED STATES, INC.

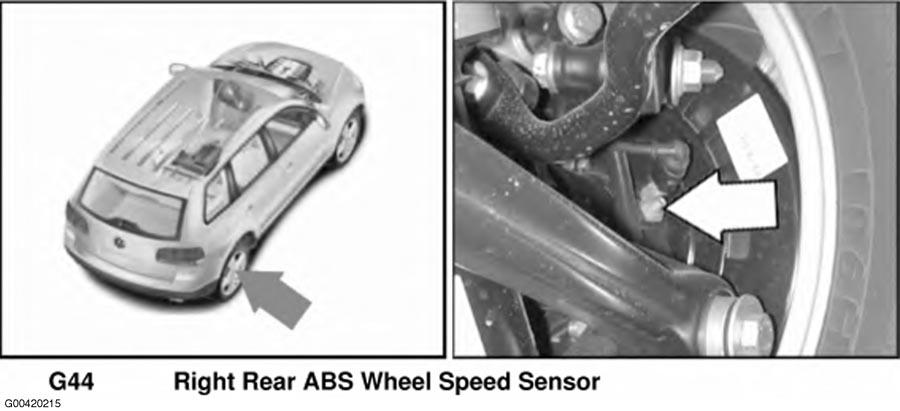

Fig 92: Right Rear Wheel

G00420215

Courtesy of VOLKSWAGEN UNITED STATES, INC.

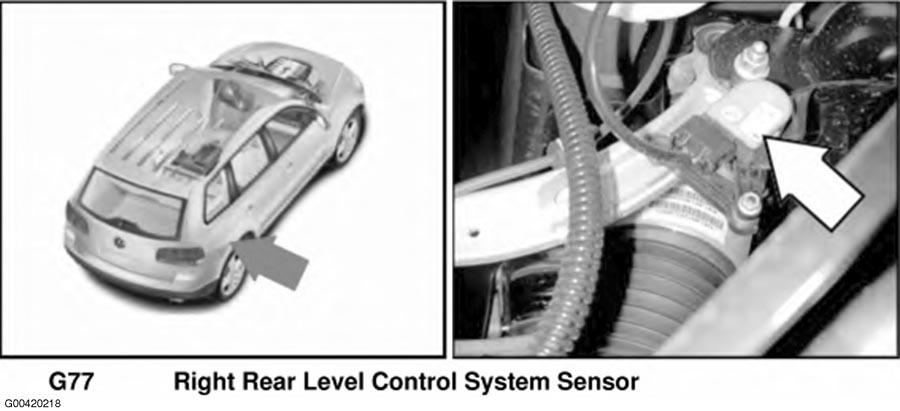

Fig 93: Right Rear Of Vehicle

G00420218

Courtesy of VOLKSWAGEN UNITED STATES, INC.

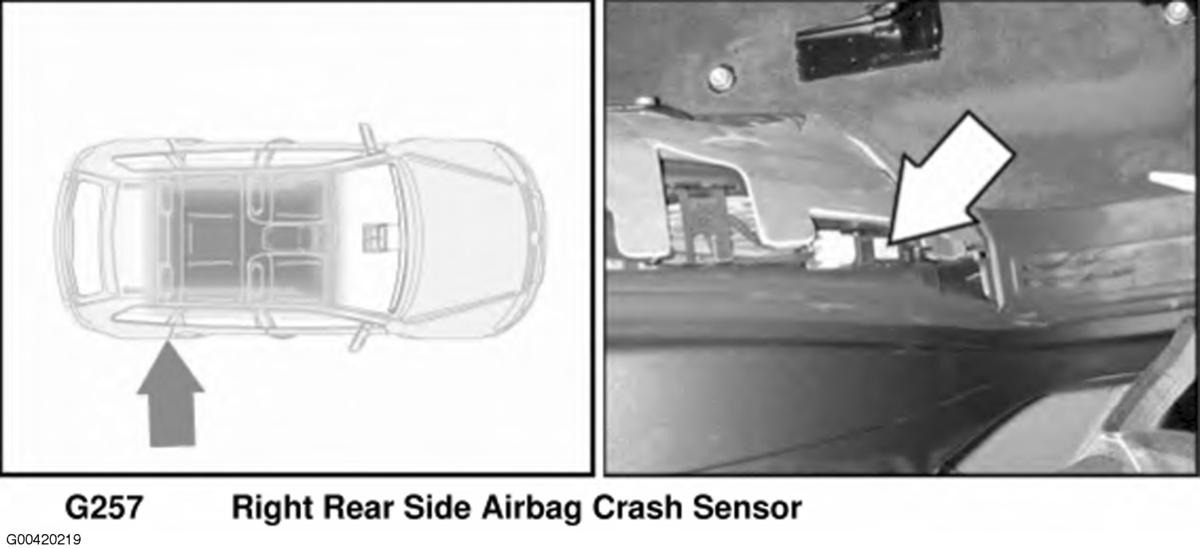

Fig 94: Right Rear Of Vehicle

G00420219

Courtesy of VOLKSWAGEN UNITED STATES, INC.

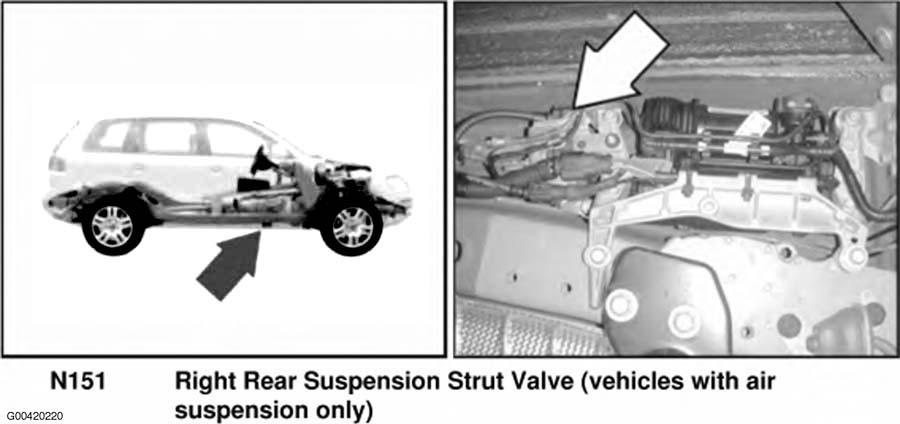

Fig 95: Under Vehicle

G00420220

Courtesy of VOLKSWAGEN UNITED STATES, INC.

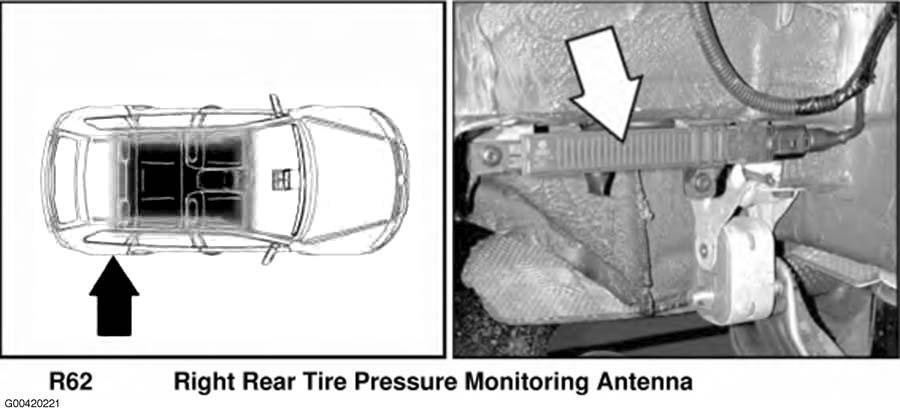

Fig 96: Right Rear Of Vehicle

G00420221

Courtesy of VOLKSWAGEN UNITED STATES, INC.

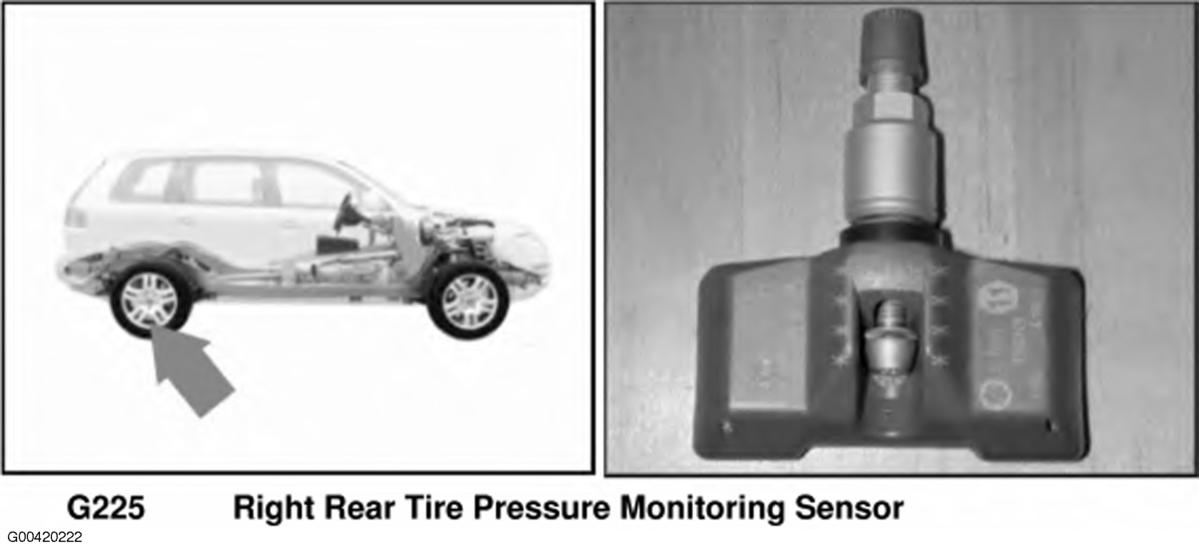

Fig 97: Right Rear Wheel

G00420222

Courtesy of VOLKSWAGEN UNITED STATES, INC.

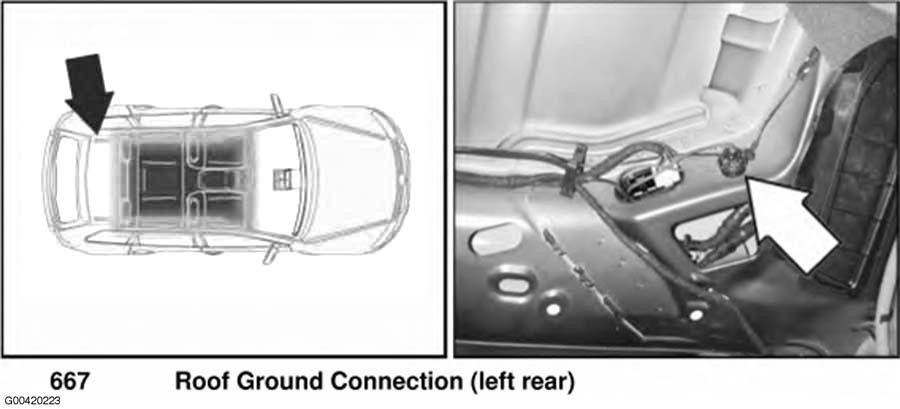

Fig 98: Left Rear Of Roof

G00420223

Courtesy of VOLKSWAGEN UNITED STATES, INC.

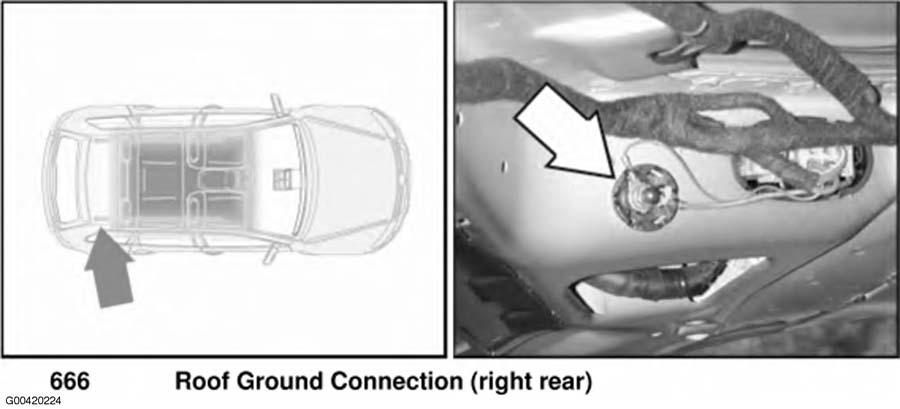

Fig 99: Right Rear Of Roof

G00420224

Courtesy of VOLKSWAGEN UNITED STATES, INC.

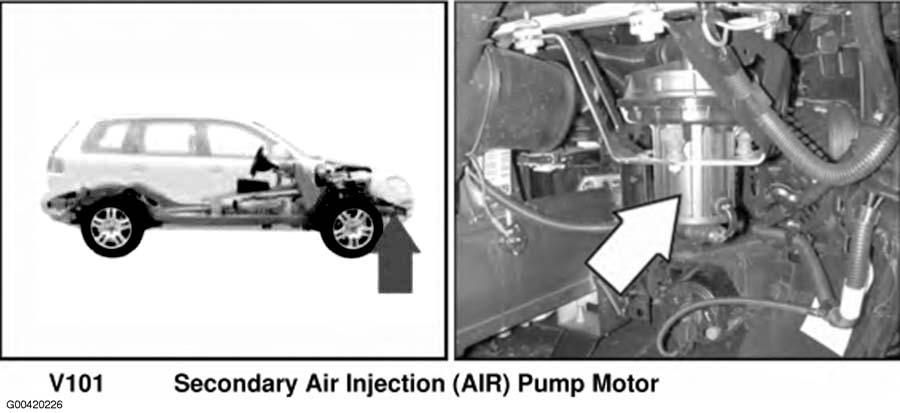

Fig 100: Right Front Of Vehicle

G00420226

Courtesy of VOLKSWAGEN UNITED STATES, INC.

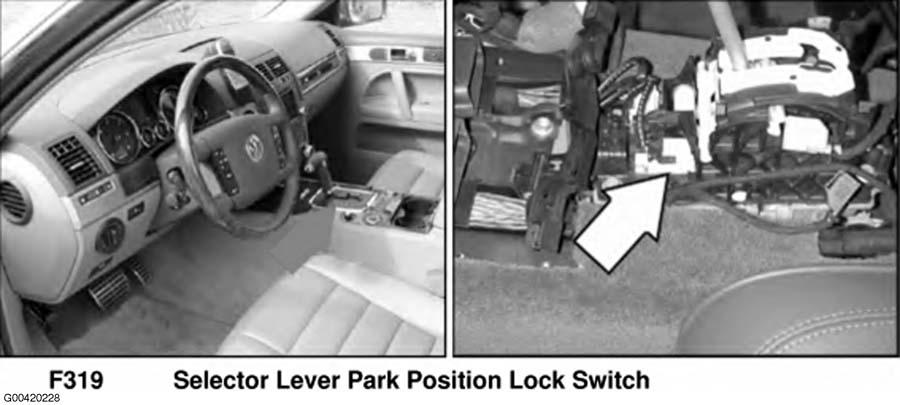

Fig 101: Center Console

G00420228

Courtesy of VOLKSWAGEN UNITED STATES, INC.

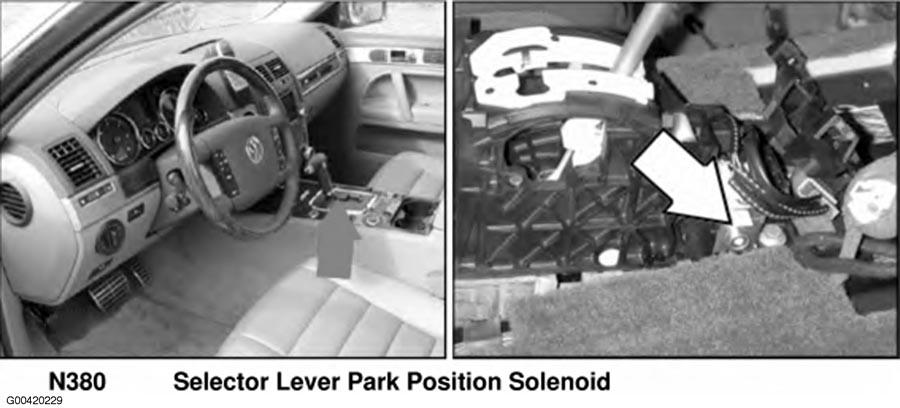

Fig 102: Center Console

G00420229

Courtesy of VOLKSWAGEN UNITED STATES, INC.

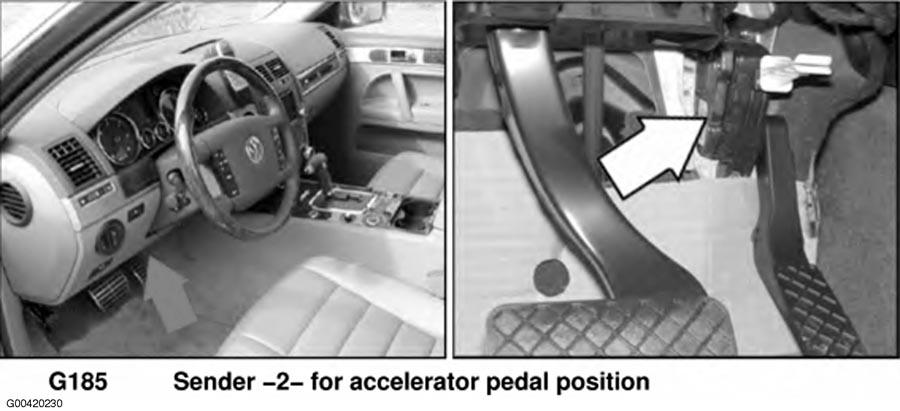

Fig 103: Below Left Side Of Dash

G00420230

Courtesy of VOLKSWAGEN UNITED STATES, INC.

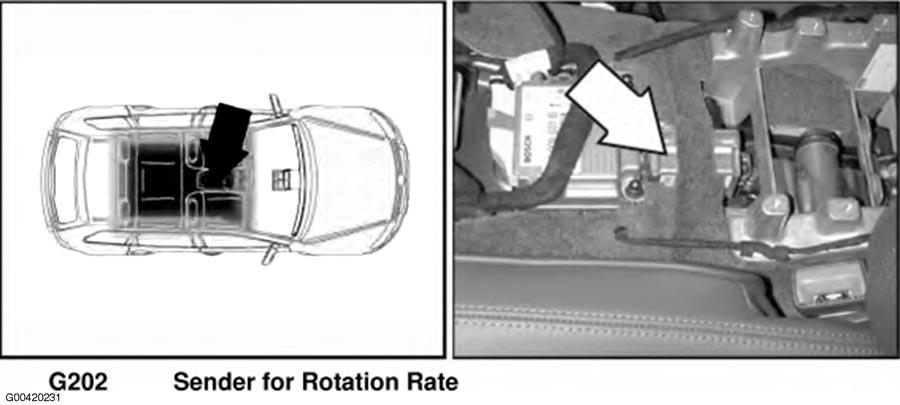

Fig 104: Center Console

G00420231

Courtesy of VOLKSWAGEN UNITED STATES, INC.

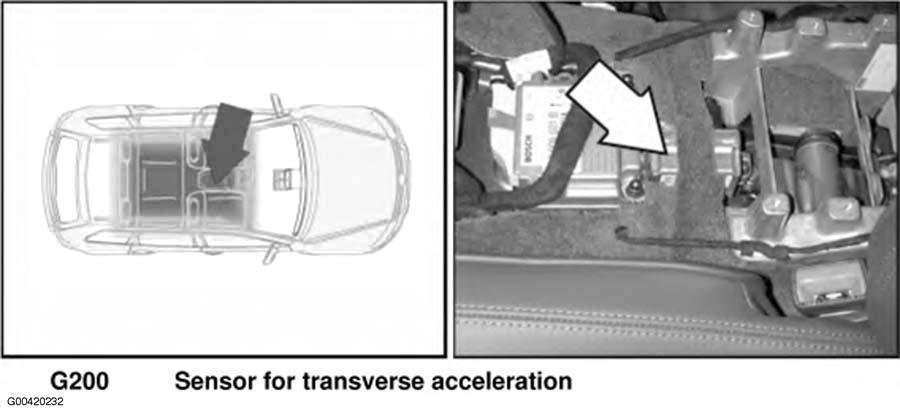

Fig 105: Center Console

G00420232

Courtesy of VOLKSWAGEN UNITED STATES, INC.

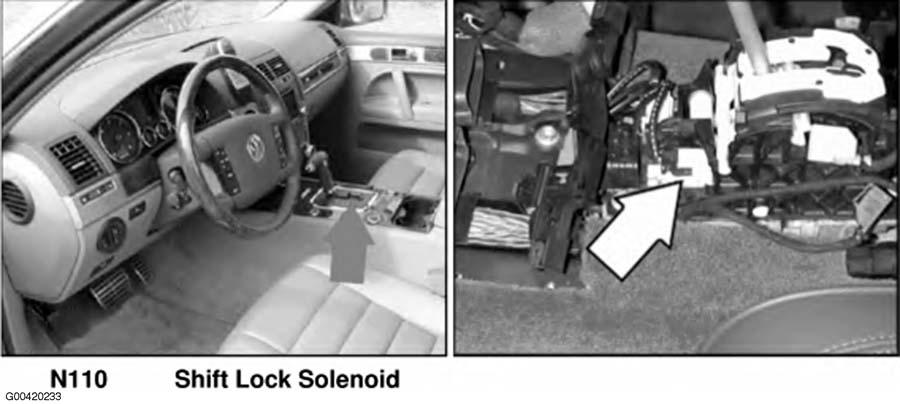

Fig 106: Center Console

G00420233

Courtesy of VOLKSWAGEN UNITED STATES, INC.

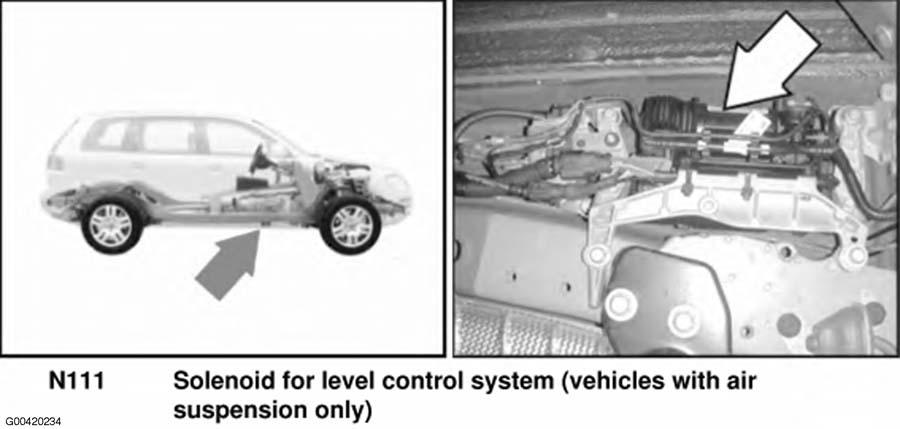

Fig 107: Under Vehicle

G00420234

Courtesy of VOLKSWAGEN UNITED STATES, INC.

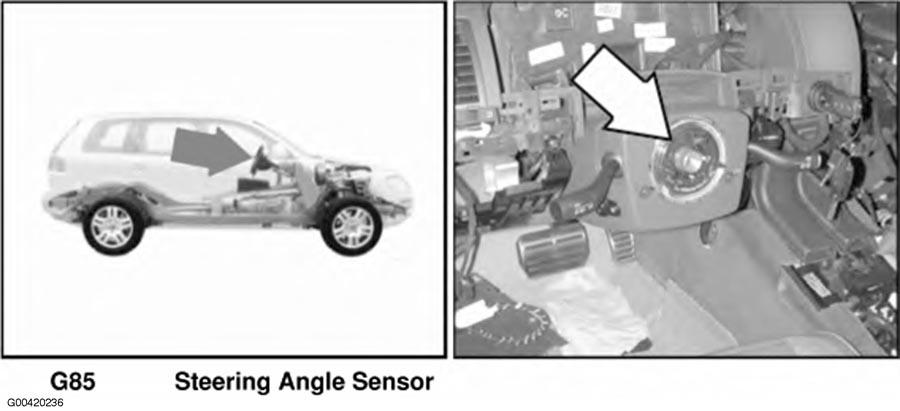

Fig 108: Steering Column

G00420236

Courtesy of VOLKSWAGEN UNITED STATES, INC.

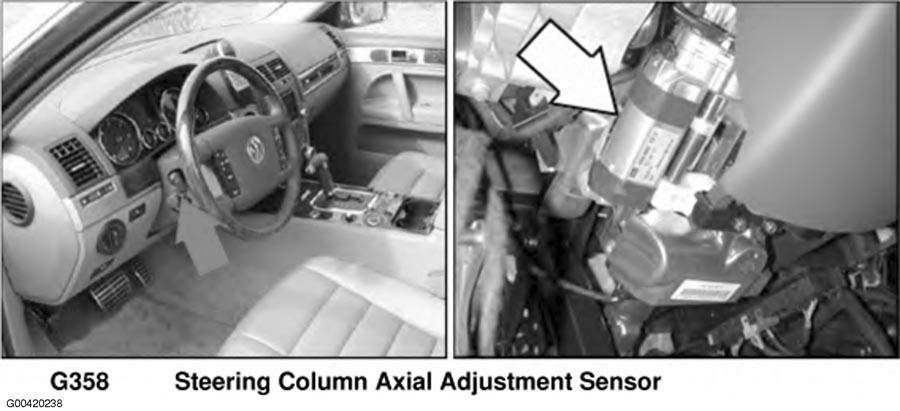

Fig 109: Steering Column

G00420238

Courtesy of VOLKSWAGEN UNITED STATES, INC.

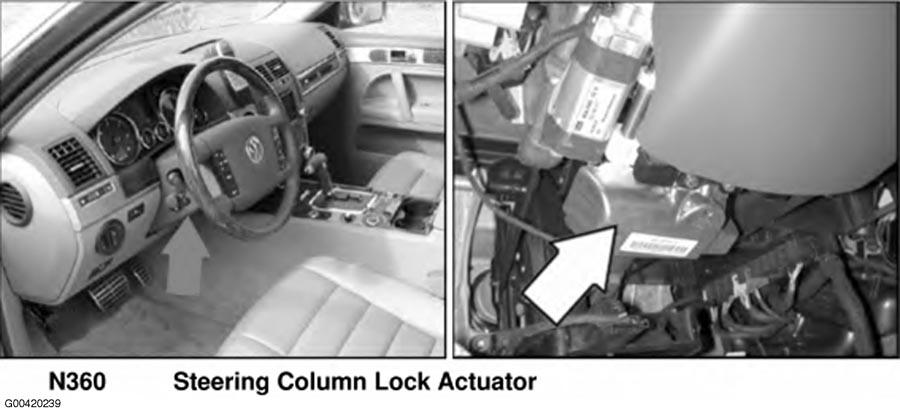

Fig 110: Steering Column

G00420239

Courtesy of VOLKSWAGEN UNITED STATES, INC.

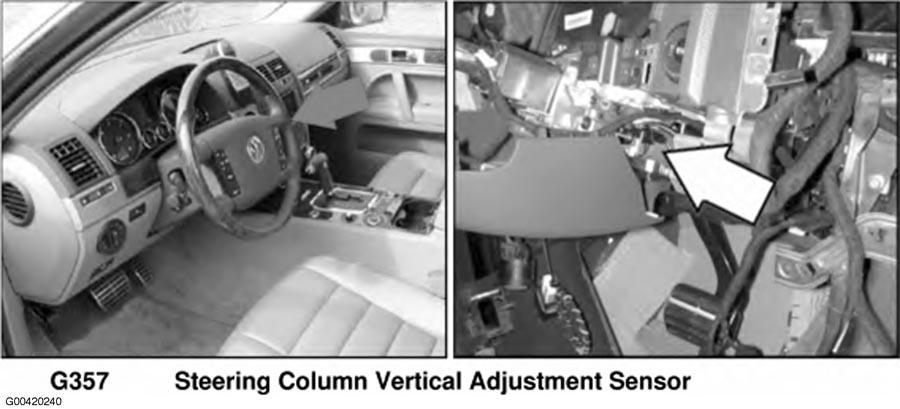

Fig 111: Steering Column

G00420240

Courtesy of VOLKSWAGEN UNITED STATES, INC.

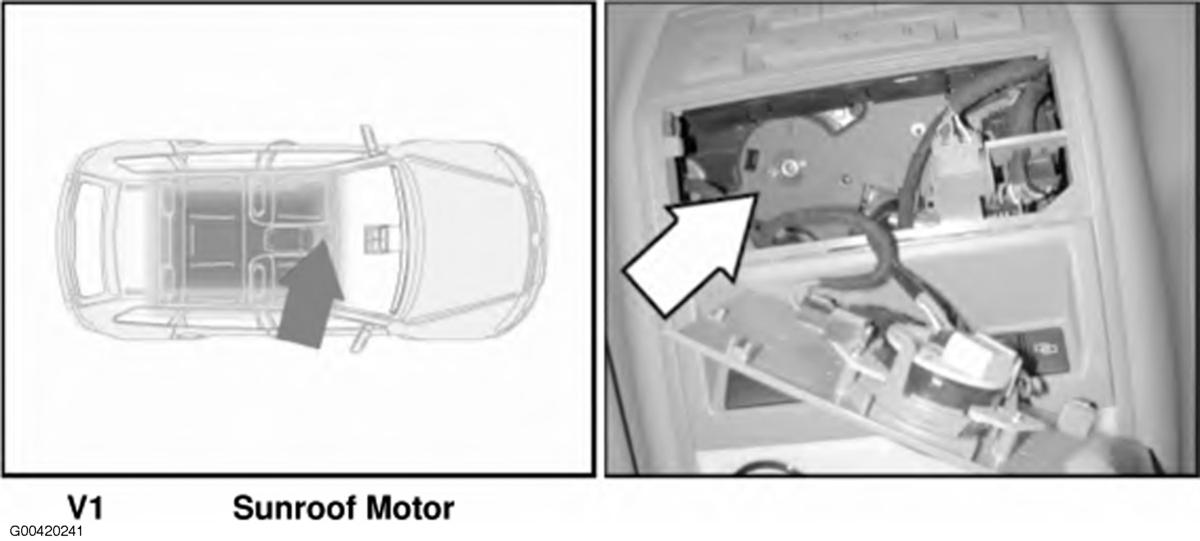

Fig 112: Center Of Roof

G00420241

Courtesy of VOLKSWAGEN UNITED STATES, INC.

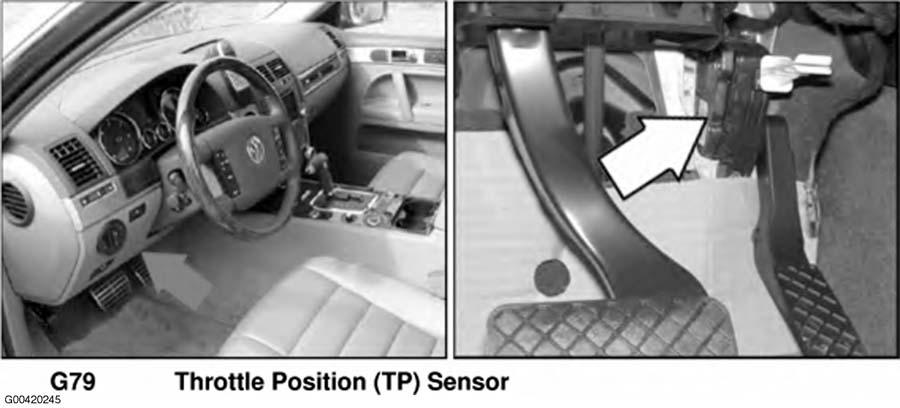

Fig 113: Below Left Side Of Dash

G00420245

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 114: Under Left Side Of Dash

G00420247

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 115: Right Front Floor

G00420248

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 116: Below Left Side Of Dash

G00420251

Courtesy of VOLKSWAGEN UNITED STATES, INC.

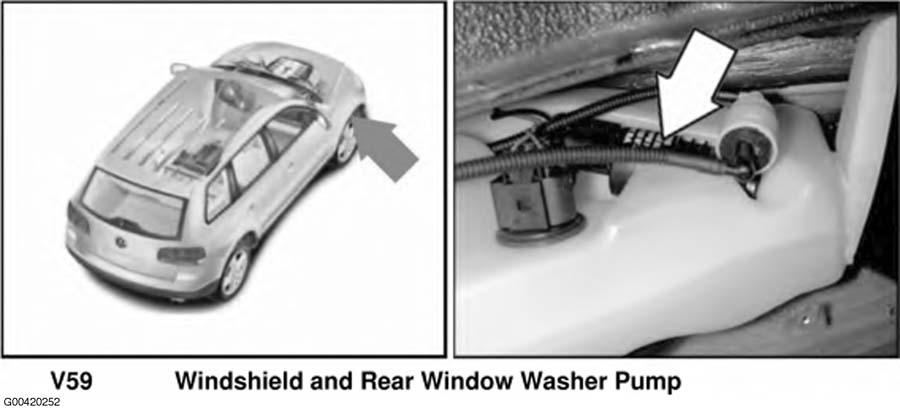

Fig 117: Right Side Of Engine Compartment

G00420252

Courtesy of VOLKSWAGEN UNITED STATES, INC.

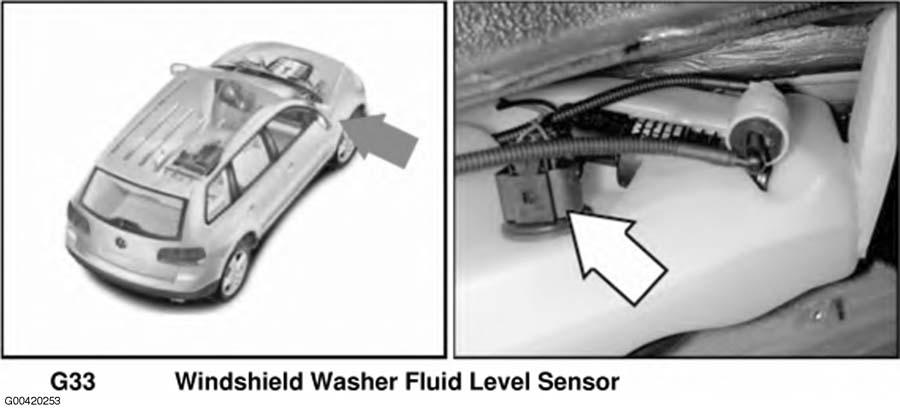

Fig 118: Right Side Of Engine Compartment

G00420253

Courtesy of VOLKSWAGEN UNITED STATES, INC.

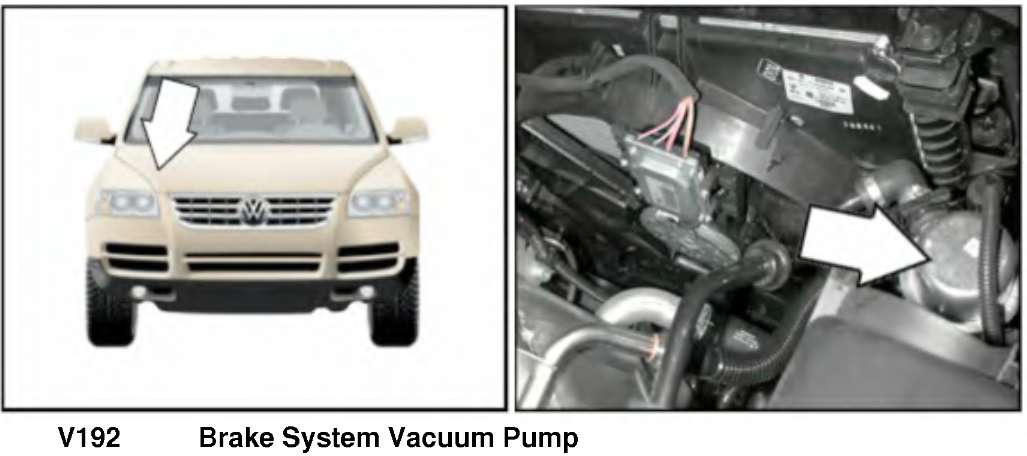

Fig 119: Right Front Of Engine Compartment

G00447962

Courtesy of VOLKSWAGEN UNITED STATES, INC.

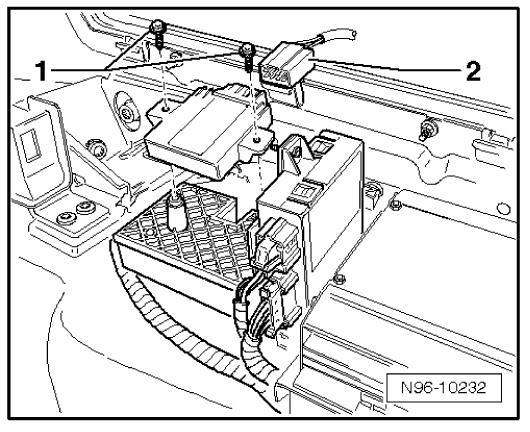

Fig 120: Right Side Panel Trim, In Luggage Compartment

G00460054

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 121: Under Front Passenger's Seat

G00447964

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 122: Under Driver's Seat

G00447965

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 123: Under Front Passenger's Seat

G00447966

Courtesy of VOLKSWAGEN UNITED STATES, INC.

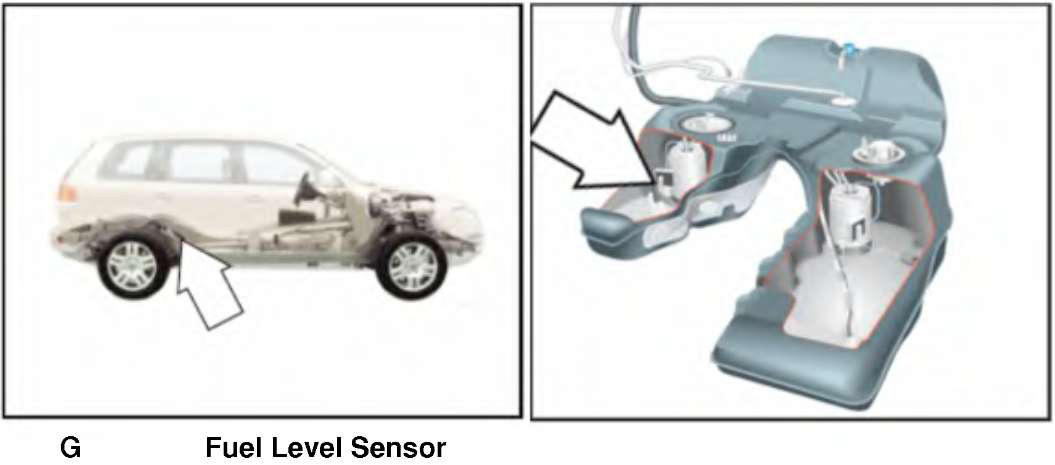

Fig 124: Under Right Rear Of Vehicle

G00447976

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 125: Under Left Rear Of Vehicle

G00447977

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 126: Center Front Of Roof

G00447981

Courtesy of VOLKSWAGEN UNITED STATES, INC.

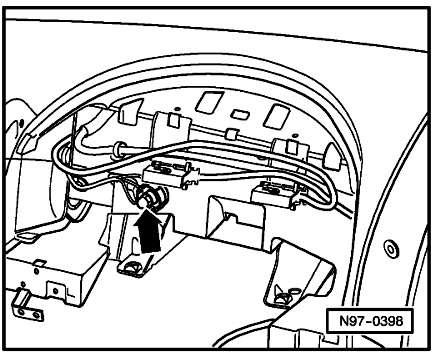

Fig 127: Behind Left Side Of Dash

G00447984

Courtesy of VOLKSWAGEN UNITED STATES, INC.

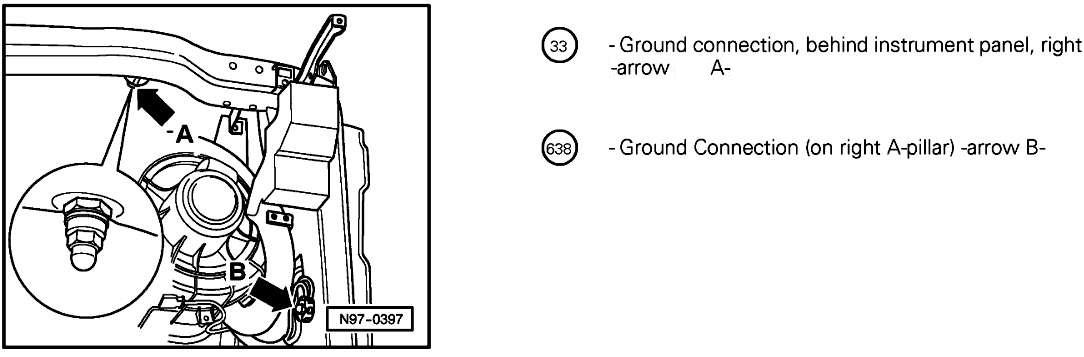

Fig 128: Right End Of Dash

G00447985

Courtesy of VOLKSWAGEN UNITED STATES, INC.

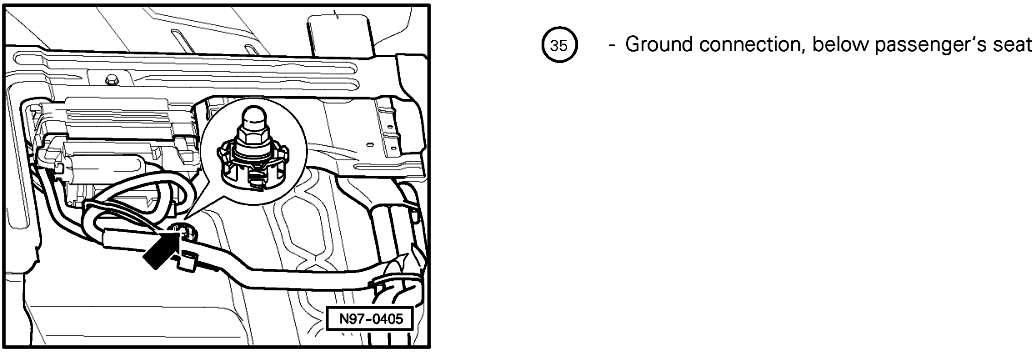

Fig 129: Under Front Passenger's Seat

G00447986

Courtesy of VOLKSWAGEN UNITED STATES, INC.

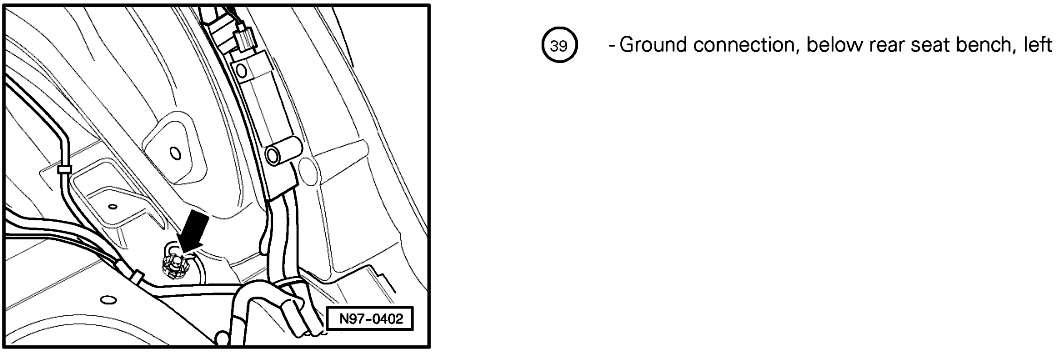

Fig 130: Under Left Side Of Rear Bench Seat

G00447987

Courtesy of VOLKSWAGEN UNITED STATES, INC.

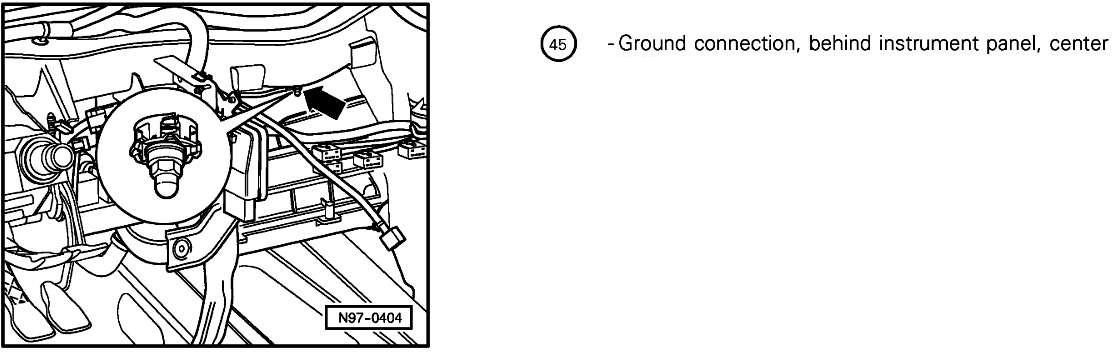

Fig 131: Behind Center Of Dash

G00447988

Courtesy of VOLKSWAGEN UNITED STATES, INC.

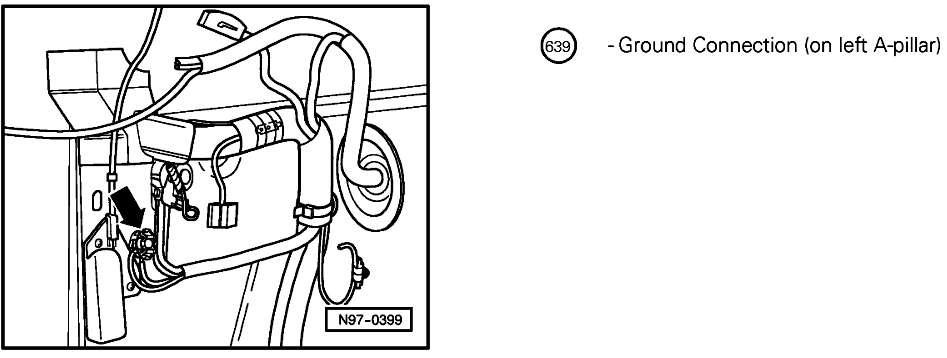

Fig 132: Behind Left Kick Panel

G00450531

Courtesy of VOLKSWAGEN UNITED STATES, INC.

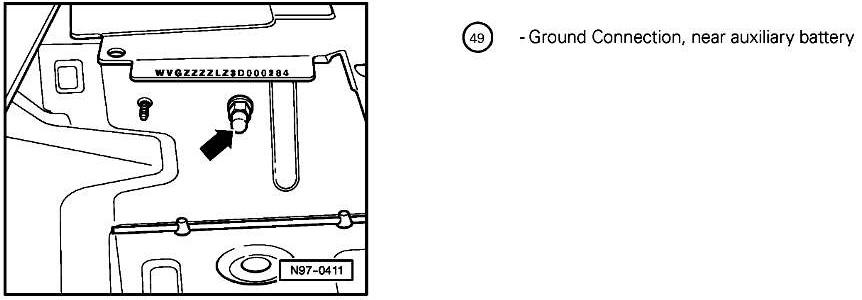

Fig 133: Right Side Of Luggage Compartment

G00450532

Courtesy of VOLKSWAGEN UNITED STATES, INC.

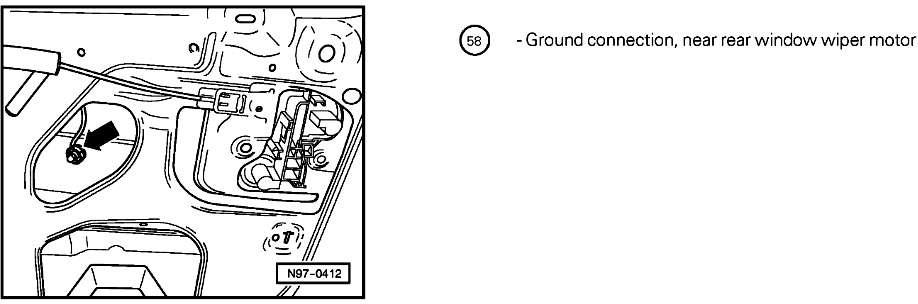

Fig 134: Center Of Tailgate

G00450533

Courtesy of VOLKSWAGEN UNITED STATES, INC.

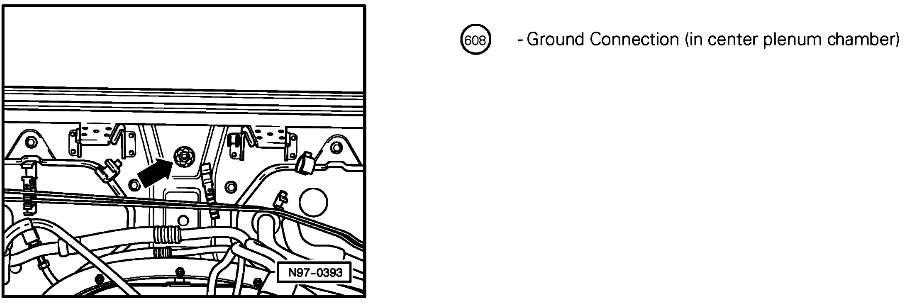

Fig 135: Center Rear Of Engine Compartment

G00450536

Courtesy of VOLKSWAGEN UNITED STATES, INC.

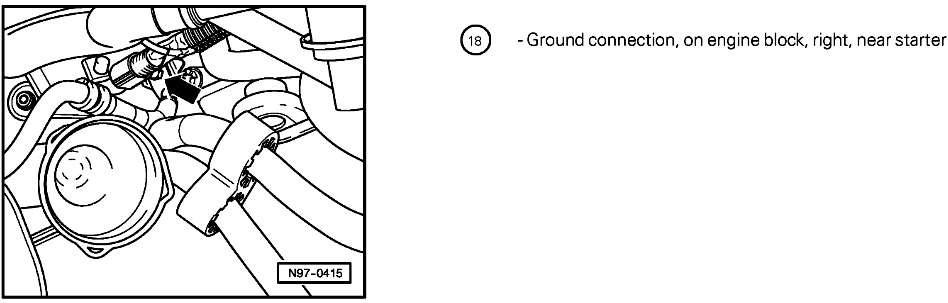

Fig 136: Right Rear Of Engine

G00450537

Courtesy of VOLKSWAGEN UNITED STATES, INC.

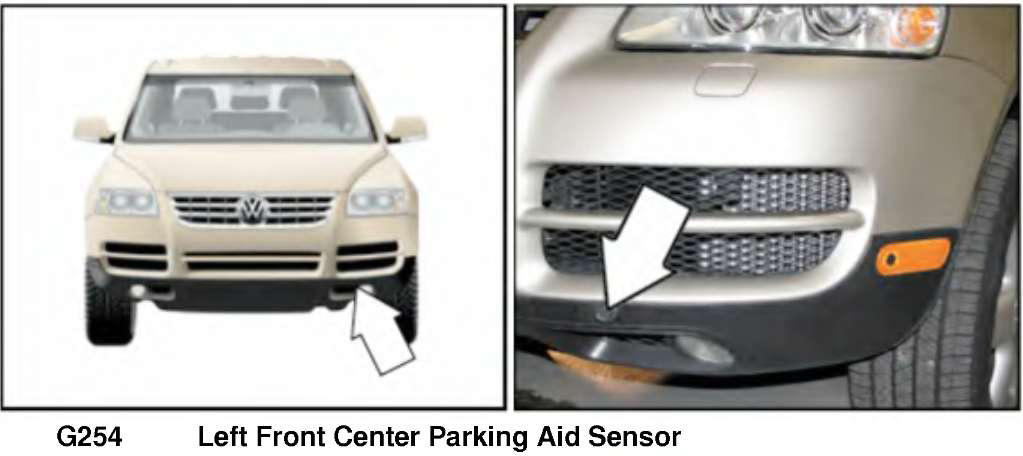

Fig 137: Left Side Of Front Bumper (Right Similar)

G00451612

Courtesy of VOLKSWAGEN UNITED STATES, INC.

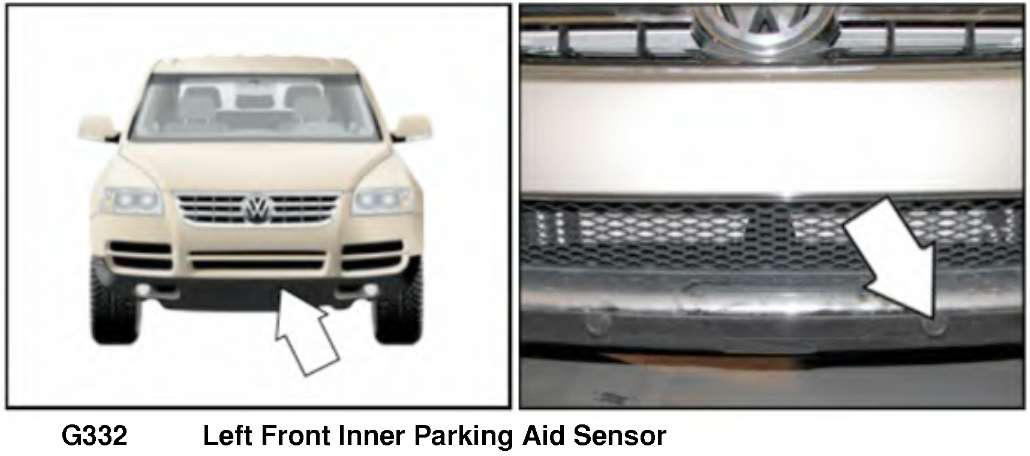

Fig 138: Left Side Of Front Bumper (Right Similar)

G00451613

Courtesy of VOLKSWAGEN UNITED STATES, INC.

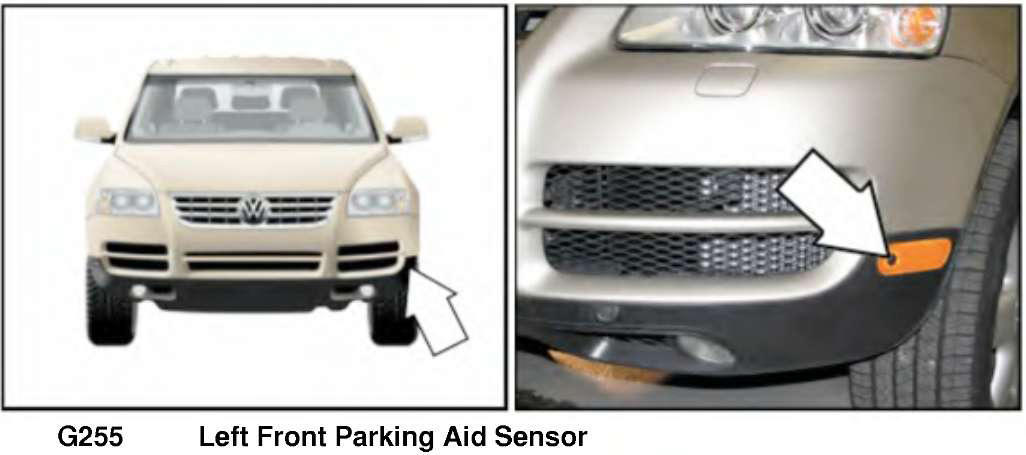

Fig 139: Left Side Of Front Bumper (Right Similar)

G00451614

Courtesy of VOLKSWAGEN UNITED STATES, INC.

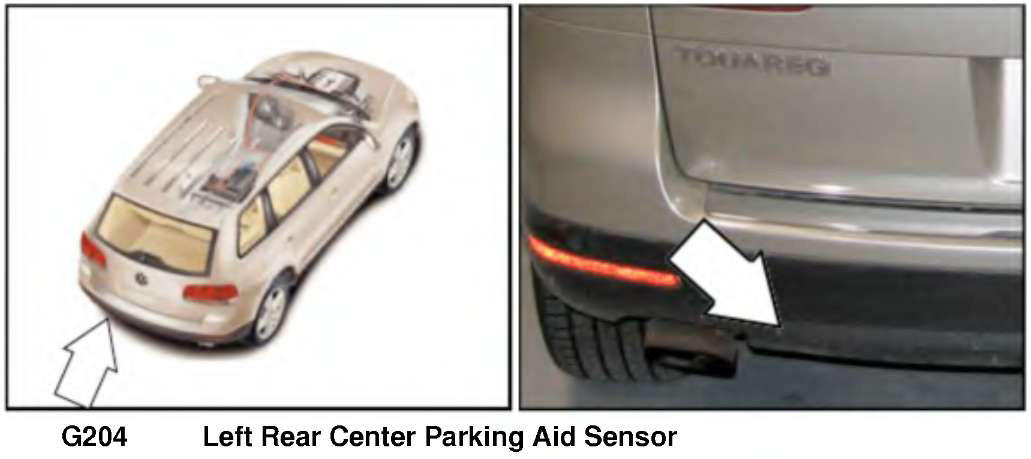

Fig 140: Left Side Of Rear Bumper (Right Similar)

G00451615

Courtesy of VOLKSWAGEN UNITED STATES, INC.

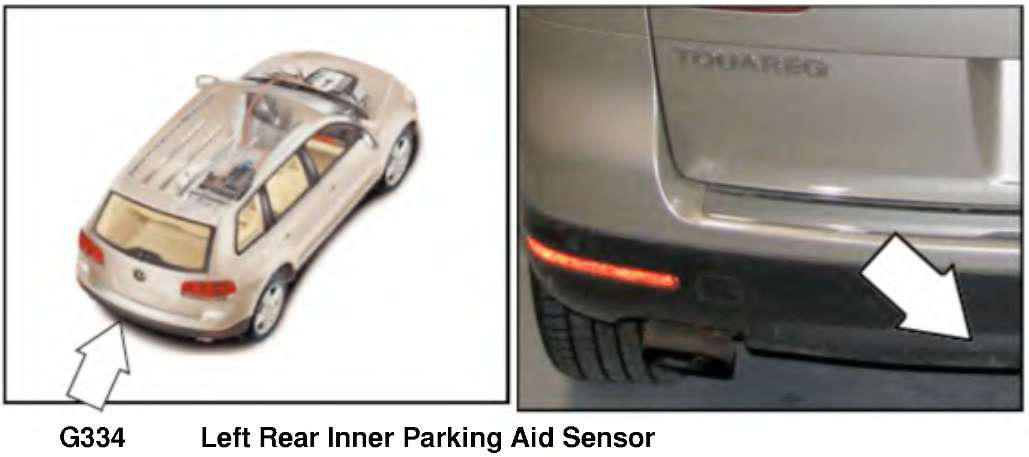

Fig 141: Left Side Of Rear Bumper (Right Similar)

G00451616

Courtesy of VOLKSWAGEN UNITED STATES, INC.

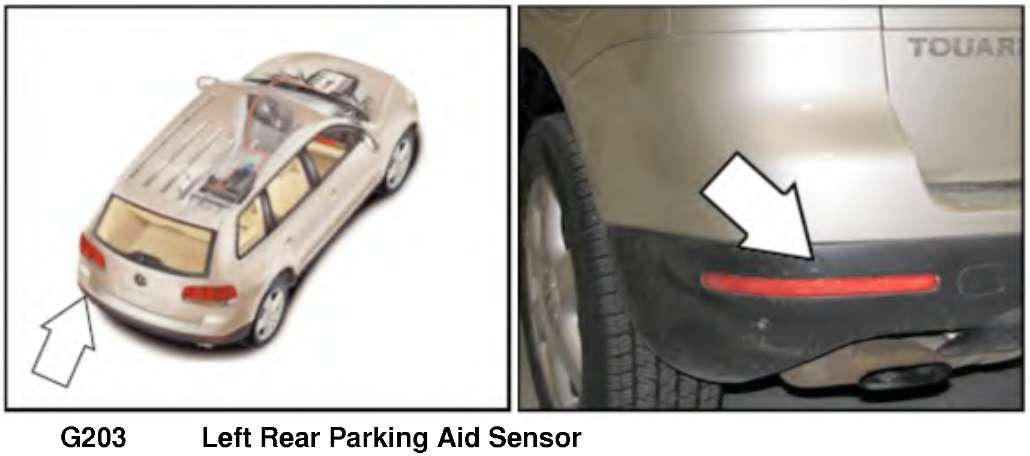

Fig 142: Left Side Of Rear Bumper (Right Similar)

G00451617

Courtesy of VOLKSWAGEN UNITED STATES, INC.

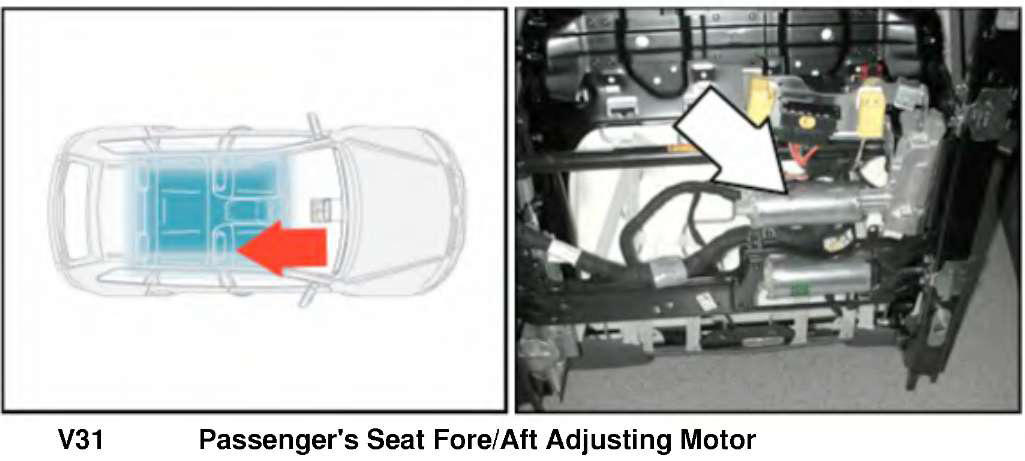

Fig 143: Under Front Passenger's Seat

G00451628

Courtesy of VOLKSWAGEN UNITED STATES, INC.

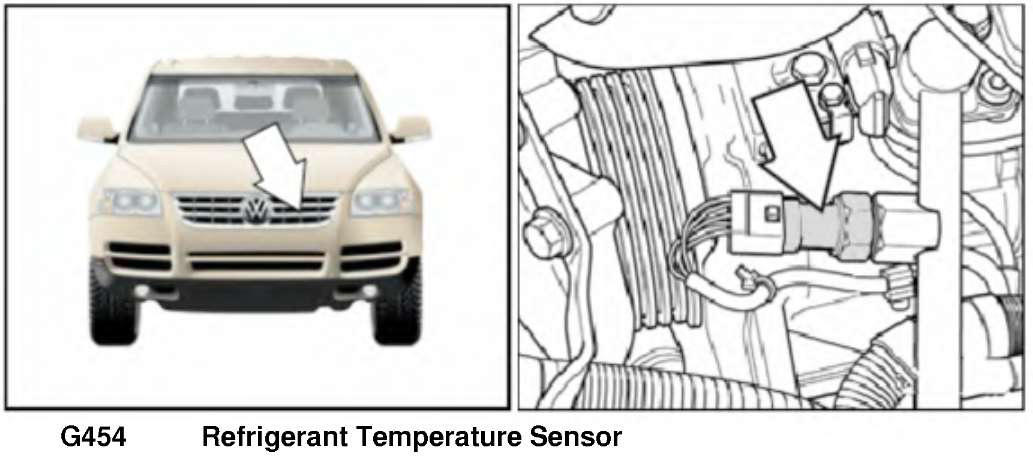

Fig 144: Left Front Of Engine Compartment

G00451629

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 145: Behind Left Side Of Dash

G00451630

Courtesy of VOLKSWAGEN UNITED STATES, INC.

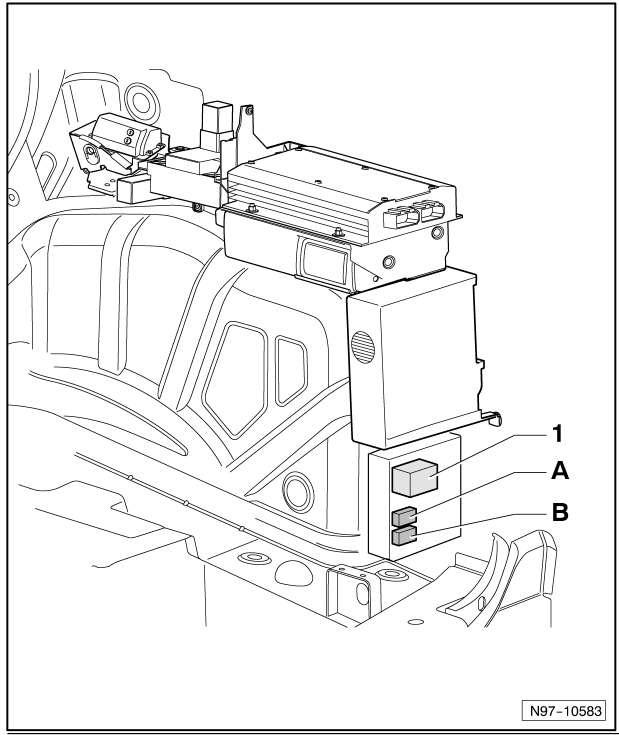

Fig 146: Right Side Of Luggage Compartment

G00451635

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 147: Luggage Compartment

G00451636

Courtesy of VOLKSWAGEN UNITED STATES, INC.

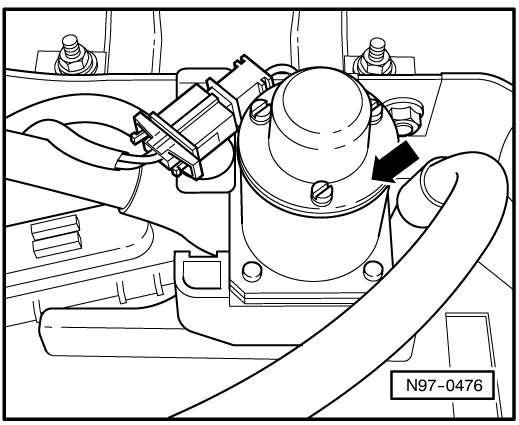

Fig 148: Luggage Compartment

G00451637

Courtesy of VOLKSWAGEN UNITED STATES, INC.

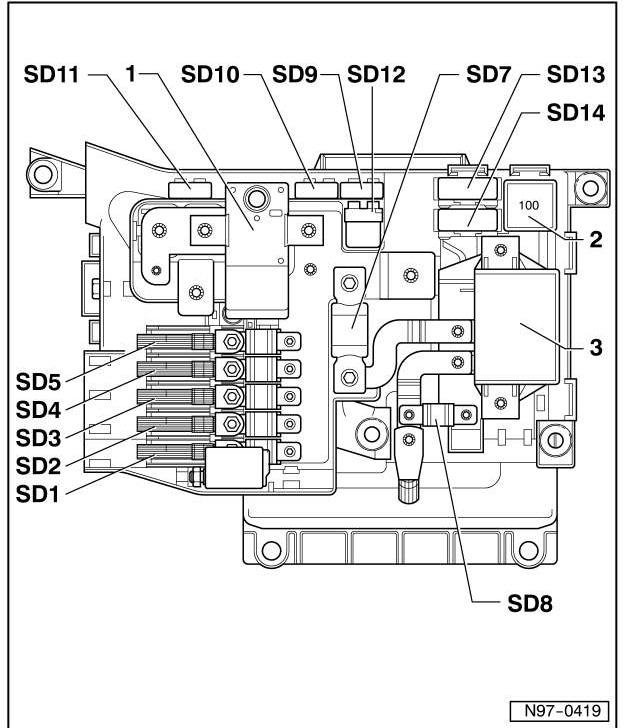

Fig 149: Under Driver's Seat

G00451638

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 150: Center Front Of Roof

G00451639

Courtesy of VOLKSWAGEN UNITED STATES, INC.

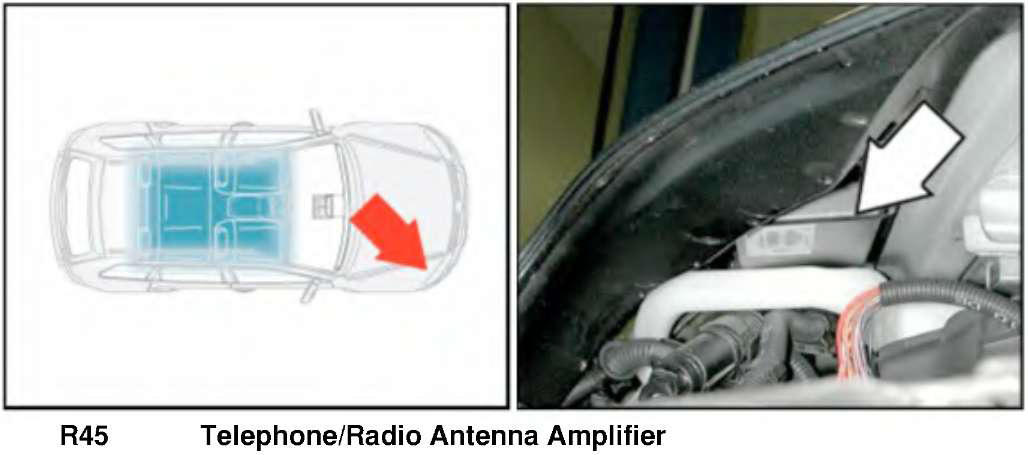

Fig 151: Right Front Of Engine Compartment

G00451640

Courtesy of VOLKSWAGEN UNITED STATES, INC.

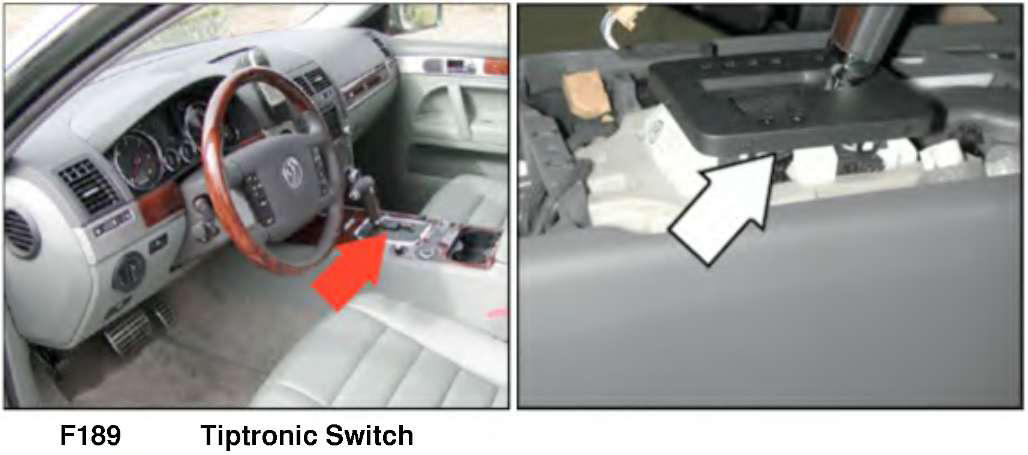

Fig 152: Under Center Console

G00451641

Courtesy of VOLKSWAGEN UNITED STATES, INC.

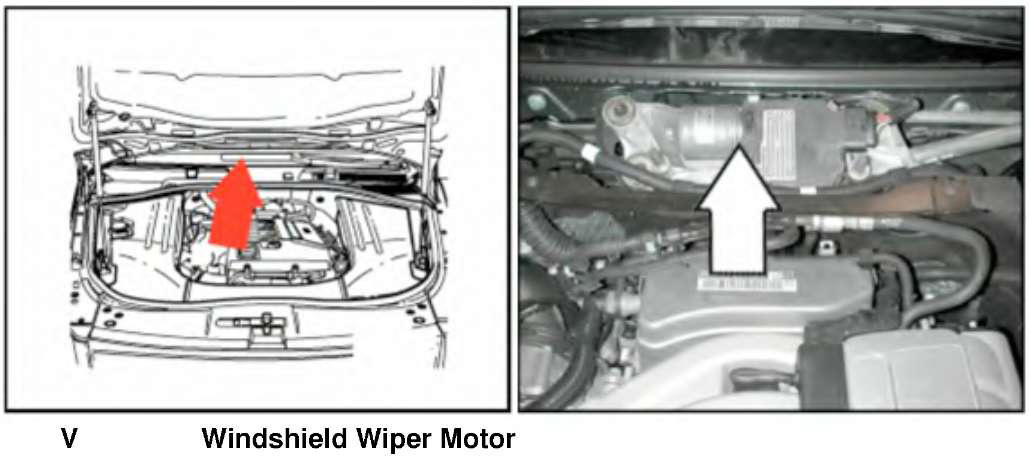

Fig 153: Center Rear Of Engine Compartment

G00451644

Courtesy of VOLKSWAGEN UNITED STATES, INC.

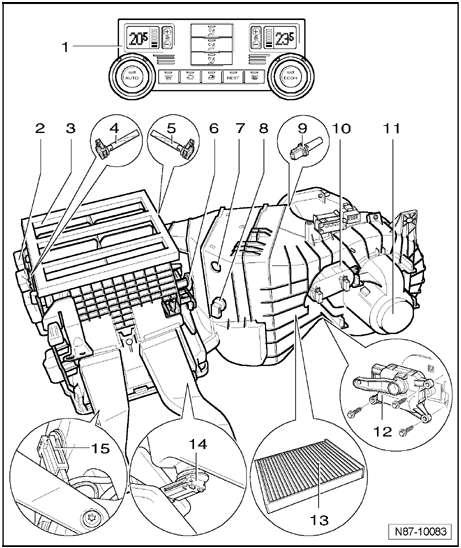

Fig 154: Front HVAC Unit

G00451645

Courtesy of VOLKSWAGEN UNITED STATES, INC.

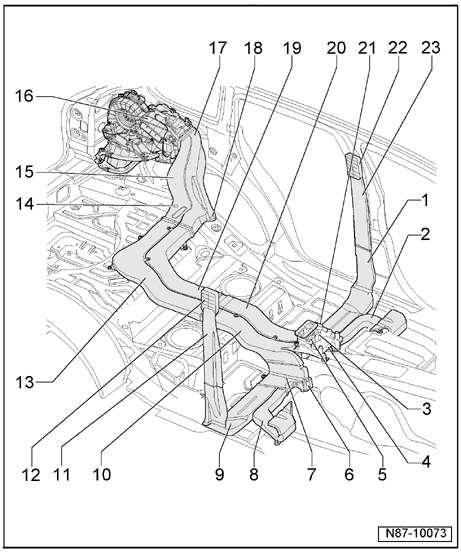

Fig 155: Rear Heating & A/C Unit

G00451646

Courtesy of VOLKSWAGEN UNITED STATES, INC.

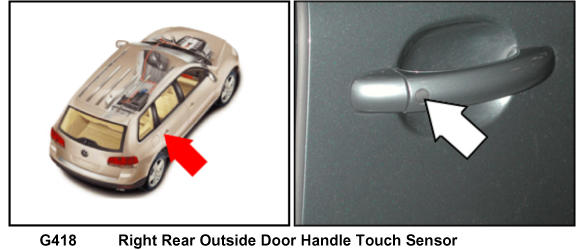

Fig 156: On Right Rear Door Handle

G00460055

Courtesy of VOLKSWAGEN UNITED STATES, INC.

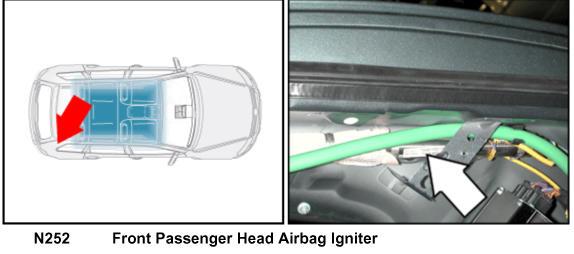

Fig 157: Right Rear, In Luggage Compartment

G00460059

Courtesy of VOLKSWAGEN UNITED STATES, INC.

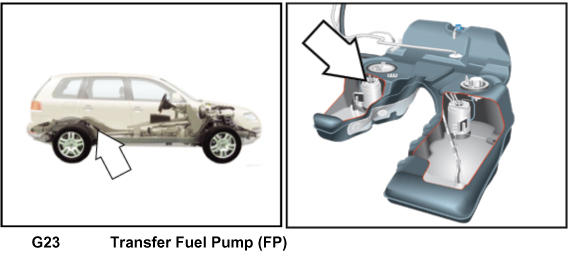

Fig 158: In Fuel Tank

G00460051

Courtesy of VOLKSWAGEN UNITED STATES, INC.

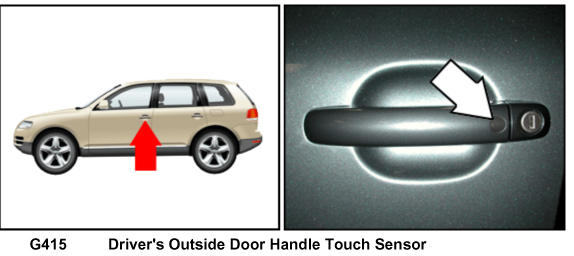

Fig 159: On Left Front Door Handle

G00460053

Courtesy of VOLKSWAGEN UNITED STATES, INC.

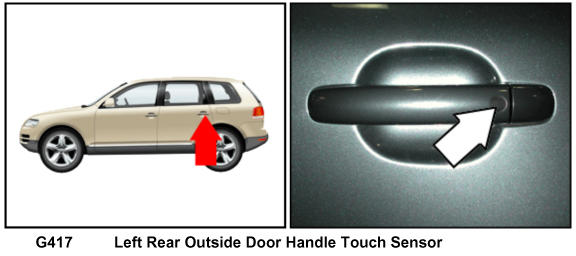

Fig 160: On Left Rear Door Handle

G00460058

Courtesy of VOLKSWAGEN UNITED STATES, INC.

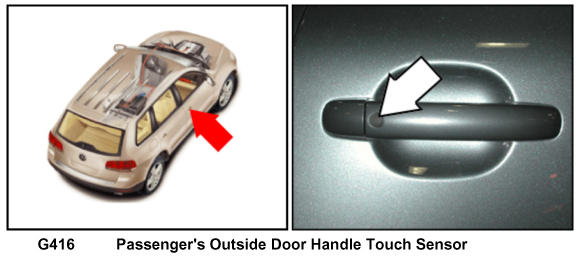

Fig 161: On Right Front Door Handle

G00460052

Courtesy of VOLKSWAGEN UNITED STATES, INC.

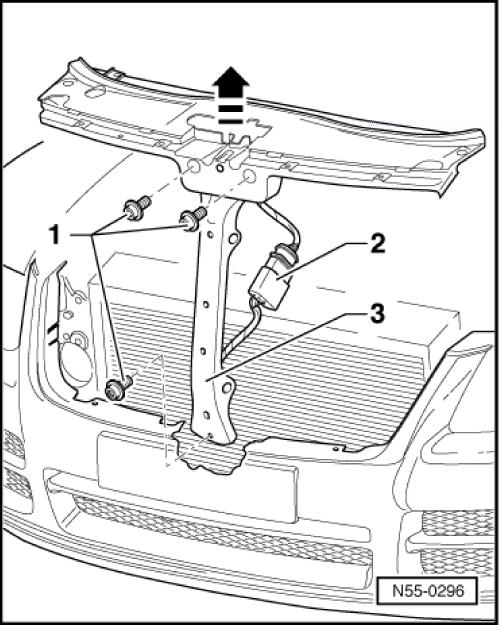

Fig 162: In Engine Compartment, Front

G00460061

Courtesy of VOLKSWAGEN UNITED STATES, INC.

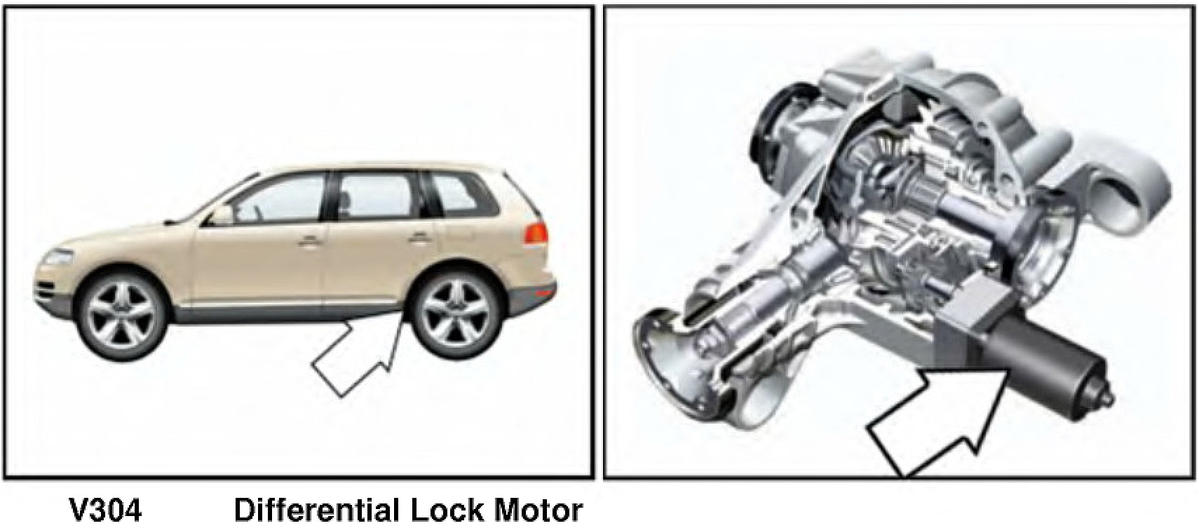

Fig 163: Left Side Of Rear Final Drive

G00472519

Courtesy of VOLKSWAGEN UNITED STATES, INC.

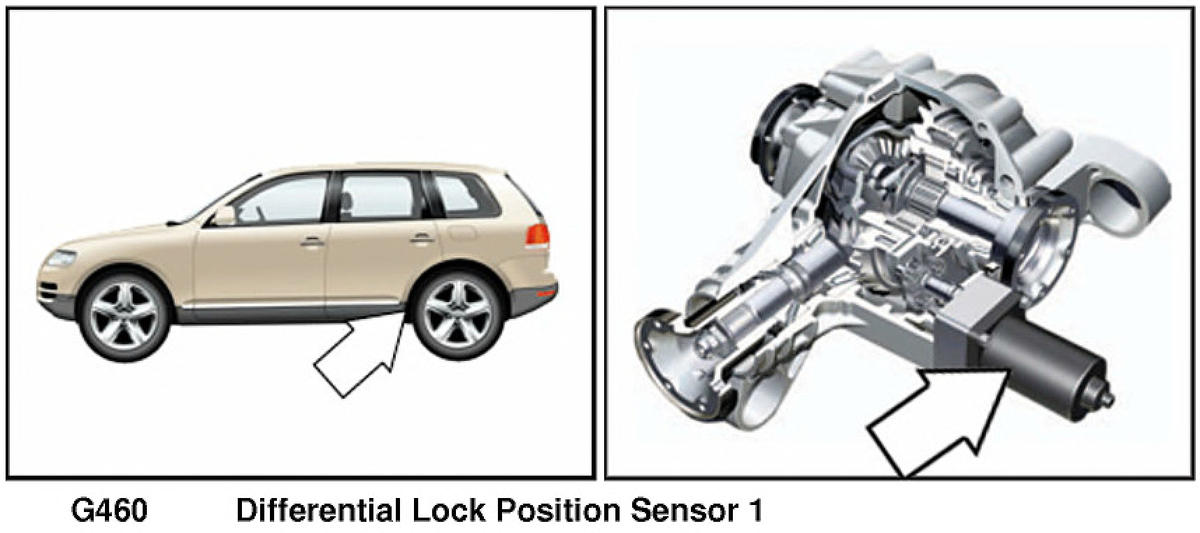

Fig 164: Left Side Of Rear Final Drive

G00472520

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 165: Left Side Of Rear Final Drive

G00472521

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 166: Right Side Of Engine (3.6L)

G00472522

Courtesy of VOLKSWAGEN UNITED STATES, INC.

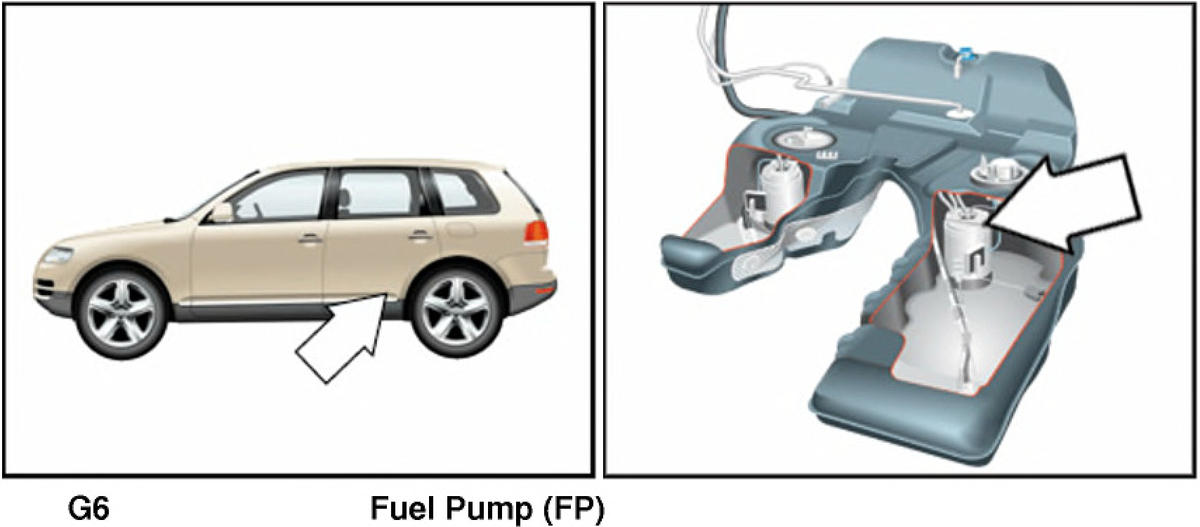

Fig 167: Beneath Rear Passenger Compartment

G00472524

Courtesy of VOLKSWAGEN UNITED STATES, INC.

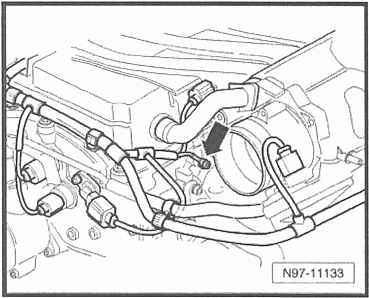

Fig 168: Front Of Engine

G00478927

Courtesy of VOLKSWAGEN UNITED STATES, INC.

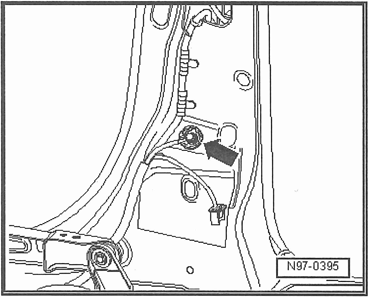

Fig 169: Right "B" Pillar

G00478928

Courtesy of VOLKSWAGEN UNITED STATES, INC.

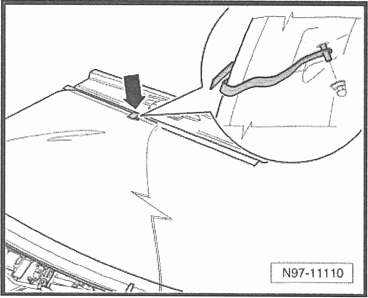

Fig 170: Center Front Of Roof

G00478929

Courtesy of VOLKSWAGEN UNITED STATES, INC.

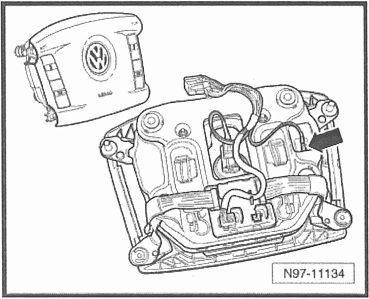

Fig 171: Steering Wheel

G00478930

Courtesy of VOLKSWAGEN UNITED STATES, INC.

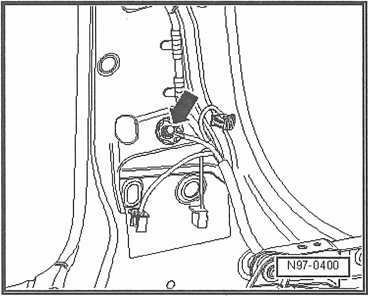

Fig 172: Left "B" Pillar

G00478931

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 173: Right Rear Of Vehicle

G00478932

Courtesy of VOLKSWAGEN UNITED STATES, INC.

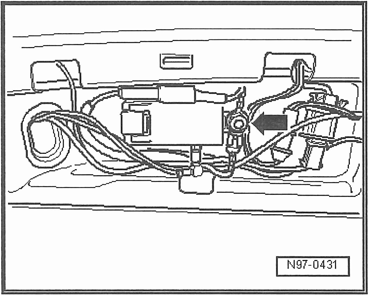

Fig 174: Rear Lid

G00478934

Courtesy of VOLKSWAGEN UNITED STATES, INC.

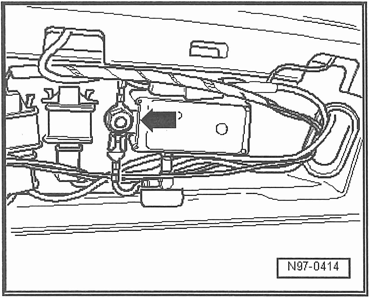

Fig 175: Rear Lid

G00478935

Courtesy of VOLKSWAGEN UNITED STATES, INC.

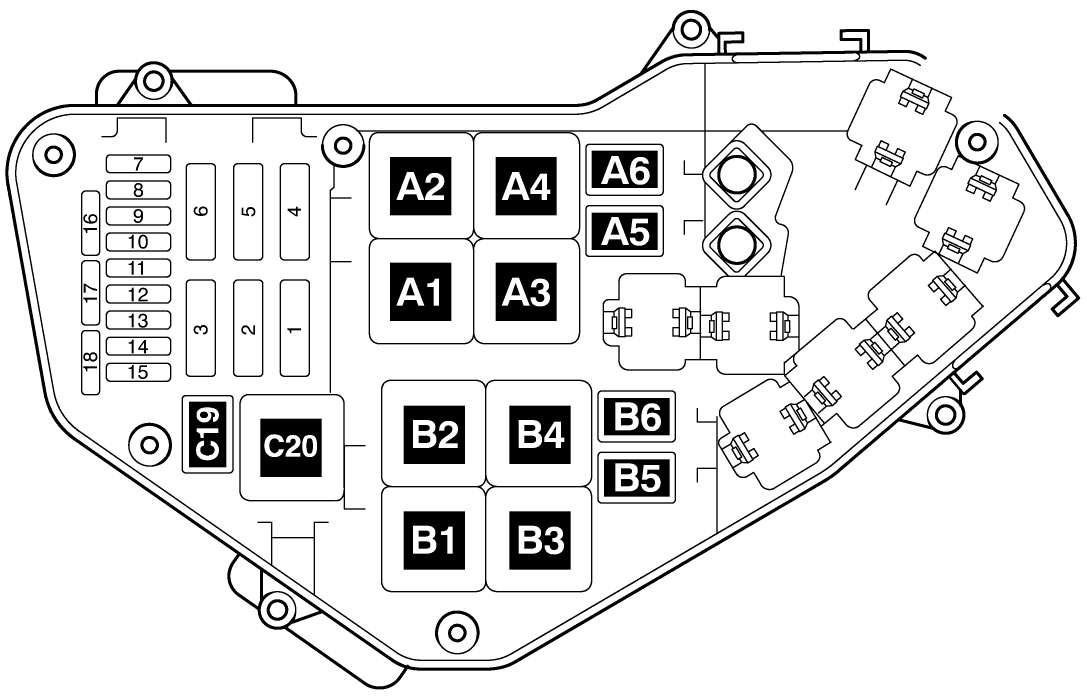

Fig 176: Left Rear Of Engine Compartment (3.6L)

G00451632

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 177: Left Rear Of Engine Compartment (3.0L)

G00451633

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 178: Right Headlight Assembly (Left Similar)

G00478936

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 179: Right Rear Of Engine Compartment

G00478937

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 180: Behind Right Side Of Dash

G00478938

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 181: Under Front Passenger's Seat

G00478939

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 182: Center Of Dash

G00478941

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 183: Center Of Steering Wheel

G00478942

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 184: Right Side Of Luggage Compartment

G00478943

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 185: Right Side Of Luggage Compartment

G00478944

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 186: Rear Of Vehicle

G00478945

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 187: Base Of Left "D" Pillar

G00478947

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 188: Base Of Left "D" Pillar

G00478948

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 189: Left Rear Wheel Housing

G00478949

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 190: Right Side Of Engine (3.0L)

G00478950

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 191: Left Side Of Engine (3.0L)

G00478951

Courtesy of VOLKSWAGEN UNITED STATES, INC.

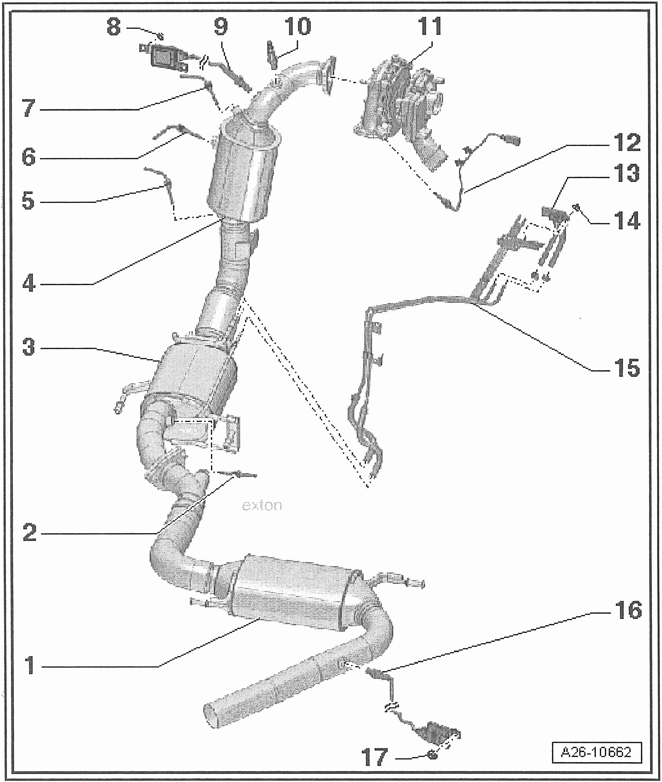

Fig 192: Exhaust System (3.0L)

G00478952

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 193: Intake Manifold (3.6L)

G00478953

Courtesy of VOLKSWAGEN UNITED STATES, INC.

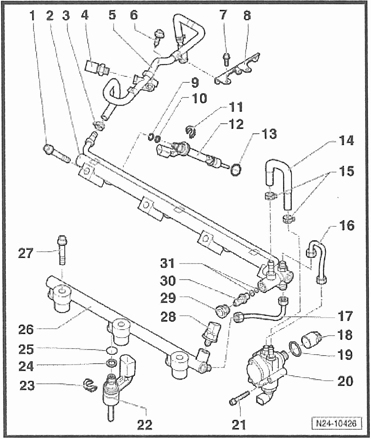

Fig 194: Top Of Engine (3.6L)

G00478954

Courtesy of VOLKSWAGEN UNITED STATES, INC.

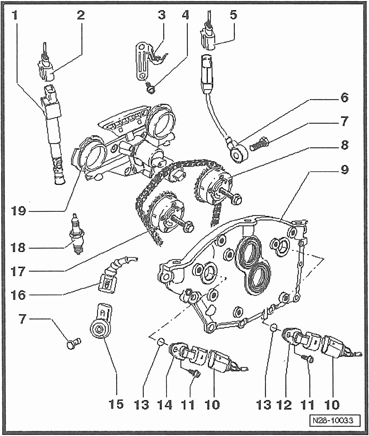

Fig 195: Front Of Engine (3.6L)

G00478955

Courtesy of VOLKSWAGEN UNITED STATES, INC.

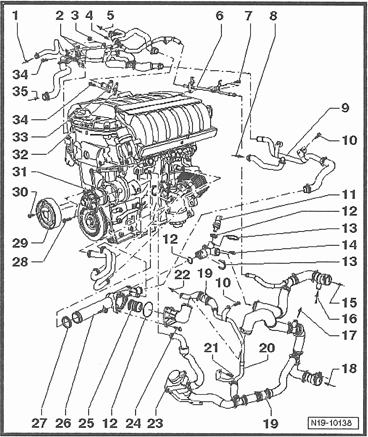

Fig 196: Engine (3.6L)

G00478956

Courtesy of VOLKSWAGEN UNITED STATES, INC.

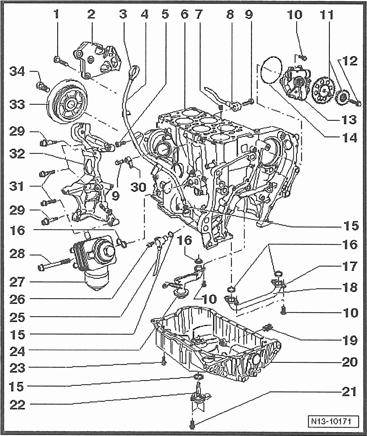

Fig 197: Left Side Of Engine (3.6L)

G00478957

Courtesy of VOLKSWAGEN UNITED STATES, INC.

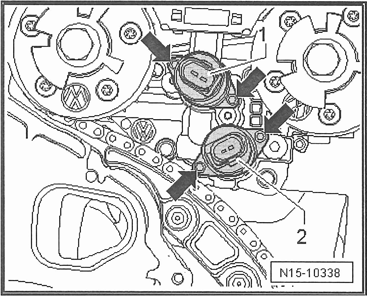

Fig 198: Front Of Engine (3.6L)

G00478958

Courtesy of VOLKSWAGEN UNITED STATES, INC.

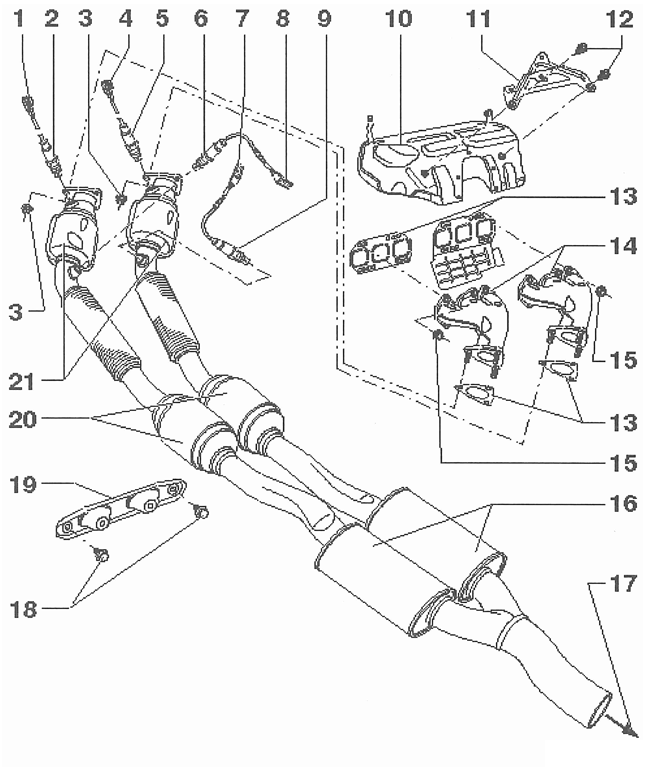

Fig 199: Exhaust System (3.6L)

G00478959

Courtesy of VOLKSWAGEN UNITED STATES, INC.

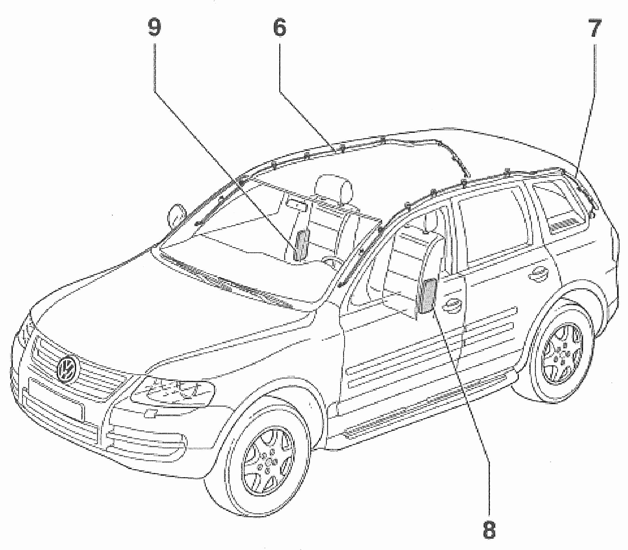

Fig 200: Vehicle Overview (SRS)

G00478960

Courtesy of VOLKSWAGEN UNITED STATES, INC.

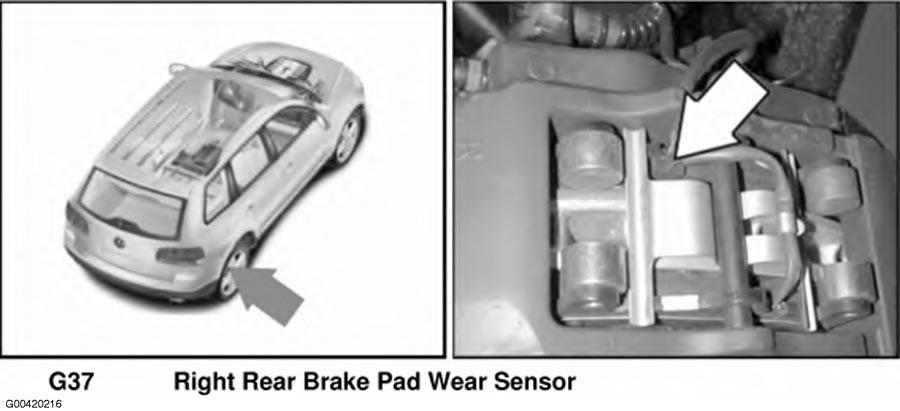

Fig 201: Right Rear Wheel

G00420216

Courtesy of VOLKSWAGEN UNITED STATES, INC.

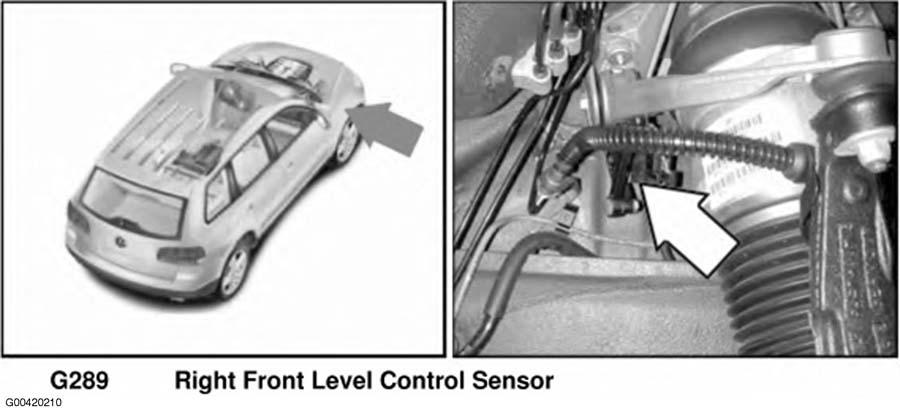

Fig 202: Right Front Of Vehicle

G00420210

Courtesy of VOLKSWAGEN UNITED STATES, INC.

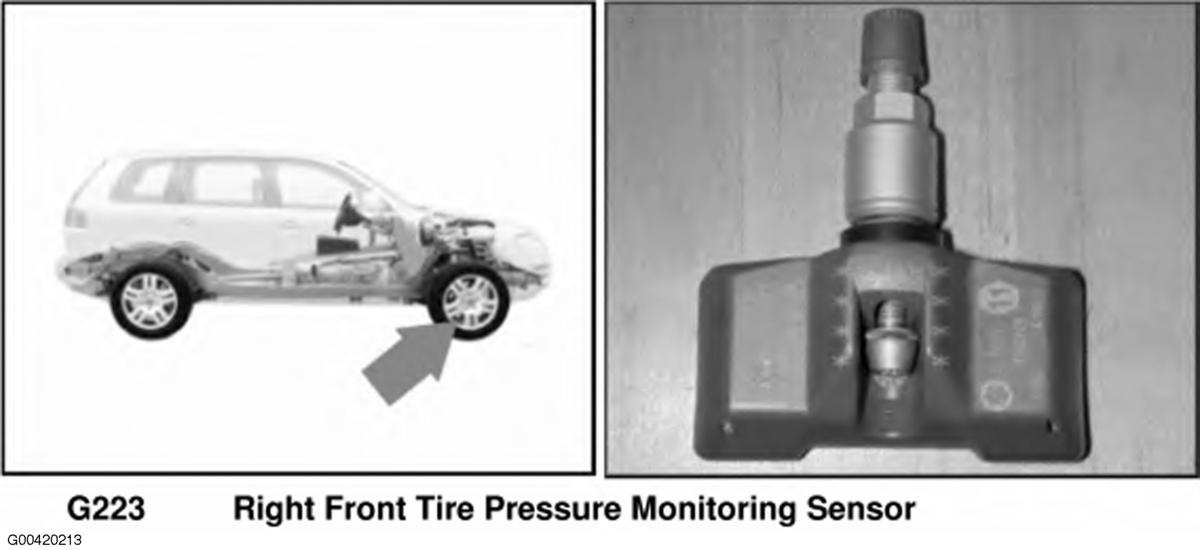

Fig 203: Right Front Wheel

G00420213

Courtesy of VOLKSWAGEN UNITED STATES, INC.

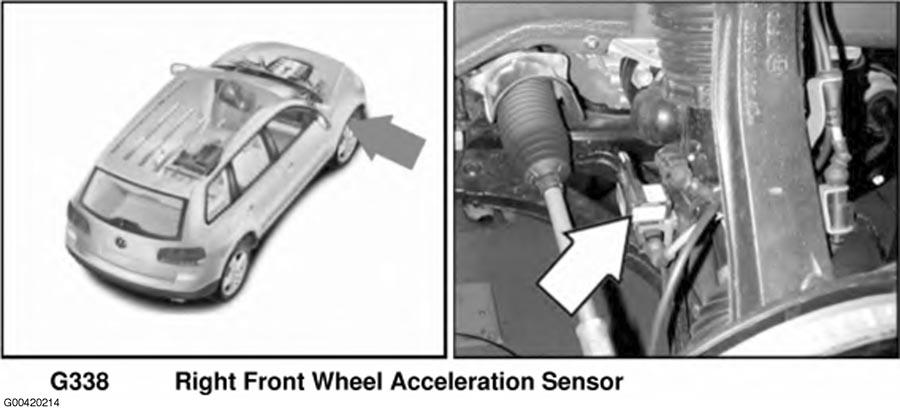

Fig 204: Right Front Of Vehicle

G00420214

Courtesy of VOLKSWAGEN UNITED STATES, INC.

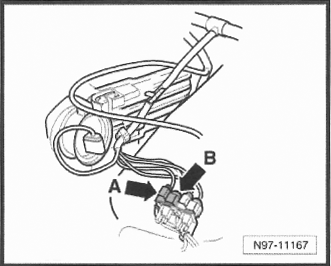

Fig 205: Right Side Of Engine Compartment

G00476382

Courtesy of VOLKSWAGEN UNITED STATES, INC.

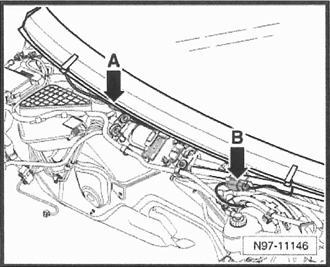

Fig 206: Plenum Chamber

G00476383

Courtesy of VOLKSWAGEN UNITED STATES, INC.

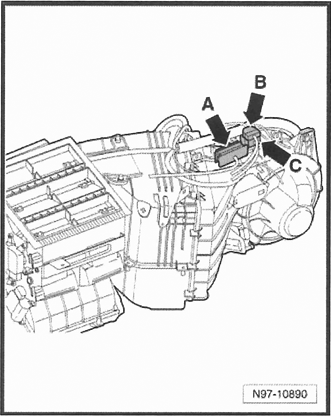

Fig 207: Top Of Heater Assembly

G00476384

Courtesy of VOLKSWAGEN UNITED STATES, INC.

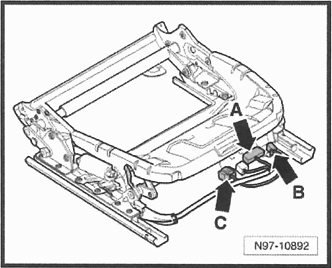

Fig 208: Under Front Passenger's Seat

G00476385

Courtesy of VOLKSWAGEN UNITED STATES, INC.

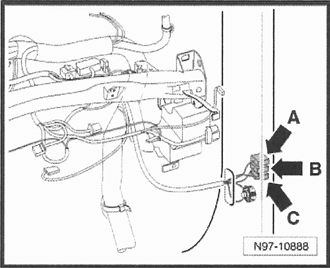

Fig 209: Right "A" Pillar

G00476386

Courtesy of VOLKSWAGEN UNITED STATES, INC.

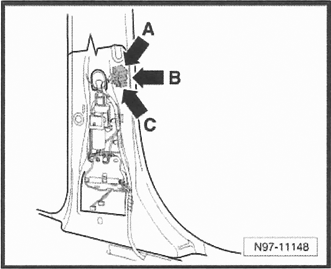

Fig 210: Right "B" Pillar

G00476387

Courtesy of VOLKSWAGEN UNITED STATES, INC.

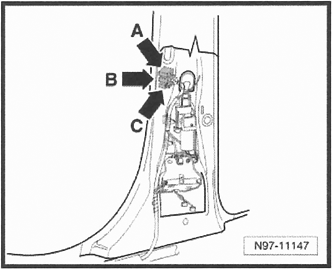

Fig 211: Left "B" Pillar

G00476388

Courtesy of VOLKSWAGEN UNITED STATES, INC.

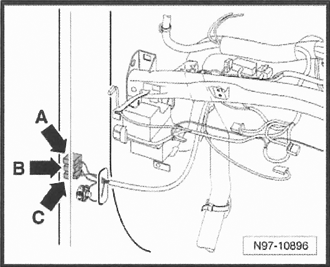

Fig 212: Left "A" Pillar

G00476389

Courtesy of VOLKSWAGEN UNITED STATES, INC.

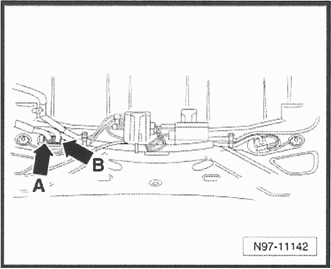

Fig 213: Rear Lid

G00476390

Courtesy of VOLKSWAGEN UNITED STATES, INC.

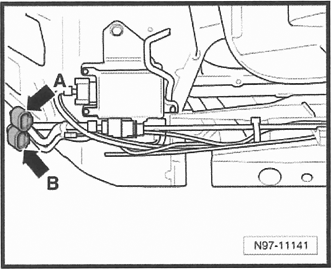

Fig 214: Left Side Of Rear Bumper

G00476391

Courtesy of VOLKSWAGEN UNITED STATES, INC.

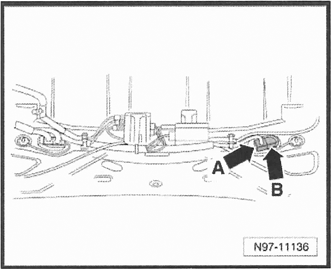

Fig 215: Rear Lid

G00476392

Courtesy of VOLKSWAGEN UNITED STATES, INC.
