Generator Overview - Engine Code(S): AXQ

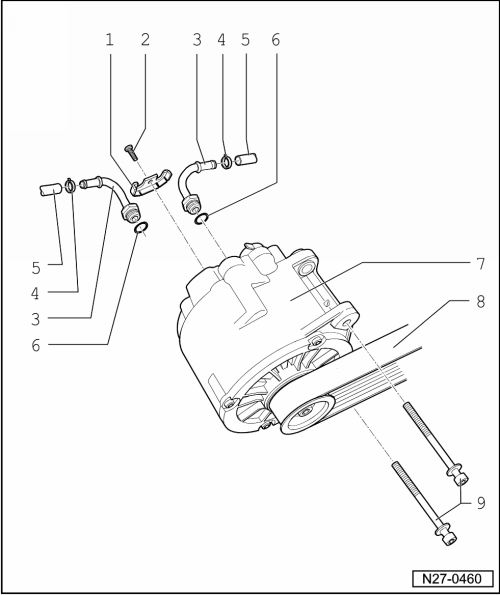

Fig 1: Generator, 8-Cyl. 4.2L Fuel Injection (MPI) Engine Assembly overview
GWWN27-0460Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Angle Bracket
  2. Hex Socket Head Bolts
    • 9 Nm
    • M6 x 25 mm
  3. Coolant Pipe
  4. Clamp
  5. Coolant Hose
  6. O-ring
    • Replace
  7. Generator
    • B+ wire fastener to generator, 15 Nm, refer to B+ CABLE MOUNT ON GENERATOR .
    • Neither the voltage regulator nor the carbon brushes can be replaced individually; if a repair is required, the entire generator must be replaced.
    • Generator, removing and installing, refer to GENERATOR .
    • Generator ribbed belt pulley, removing and installing, refer to RIBBED BELT PULLEY ON GENERATOR .
  8. Ribbed Belt
  9. Socket Head Bolt With Washer
    • 22 Nm
    • M8 x 90 mm
