BREMBO 17 Inch

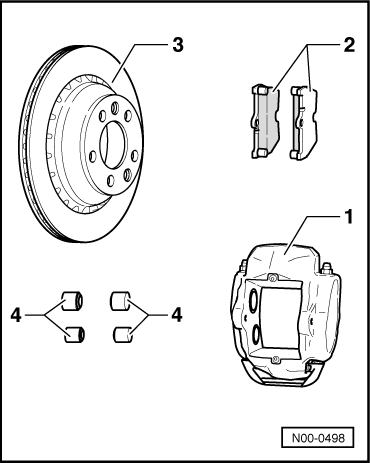

Fig 1: Identifying Rear Brakes (Disc Brakes 17") -- PR No: 1KF

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR number		1KF/2EE
1	Brake caliper		Brembo (17")
2	Brake pad, thickness	mm	11
2	Brake pad, wear limit without back plate	mm	2
3	Brake disc	diameter in mm	330
	Brake disc, thickness	mm	28
	Brake disc, wear limit	mm	26
4	Brake caliper, piston	diameter in mm	2 x 28 2 x 30

Fig 2: Identifying Rear Brakes (Disc Brakes 17") -- PR No: 1KQ

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR number		1KQ
1	Brake caliper		Brembo (17")
2	Brake pad, thickness	mm	11
2	Brake pad, wear limit without back plate	mm	2
3	Brake disc	diameter in mm	330
	Brake disc, thickness	mm	28
	Brake disc, wear limit	mm	26
4	Brake caliper, piston	diameter in mm	2 x 44
