BREMBO 17 Inch

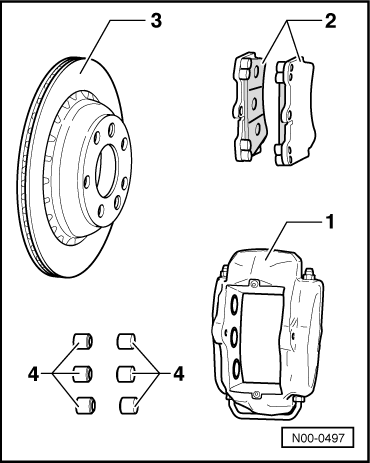

Fig 1: Identifying Brembo (18") Front Wheel Brake

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR number		1LC
1	Brake caliper		Brembo (17")
2	Brake pad, thickness	mm	10
2	Brake pad, wear limit without back plate	mm	2
3	Brake disc	diameter in mm	330
	Brake disc, thickness	mm	32
	Brake disc, wear limit	mm	30
4	Brake caliper, piston	diameter in mm	2 x 34 2 x 36 2 x 38

Fig 2: Identifying Front Brakes, Brembo (17") -- PR No: 1LE

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR number		1LE/1LA
1	Brake caliper		Brembo (17")
2	Brake pad, thickness	mm	11
2	Brake pad, wear limit without back plate	mm	2
3	Brake disc	diameter in mm	330
	Brake disc, thickness	mm	32
	Brake disc, wear limit	mm	30
4	Brake caliper, piston	diameter in mm	4 x 46
