Individual Window Frame Components Assembly Overview

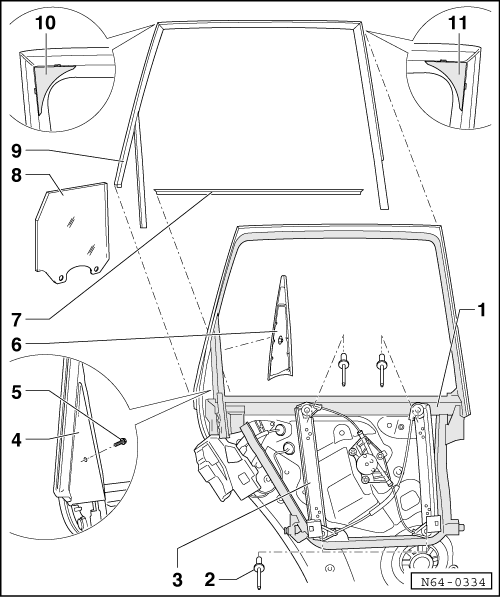

Fig 1: Identifying Individual Window Frame Components - Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Window frame
   • Riveted to assembly carrier in the illustration.
2. Hollow rivet
   • Quantity: 4
   • Join window regulator to window frame.
3. Window regulator
4. Trim
   • The outer trim is secured by a bolt.
5. Bolt
6. Trim
   • The inner trim is engaged in window frame.
7. Window recess seal
   • Inserted on flange.
8. Door window
   • Removing, refer to DOOR WINDOW
9. Outer window guide
   • Inserted on flange.
10. Cap
    • Pushed between window frame and upper rear window guide.
11. Cap
    • Pushed between window frame and upper front window guide.
