Individual Window Frame Components Assembly Overview

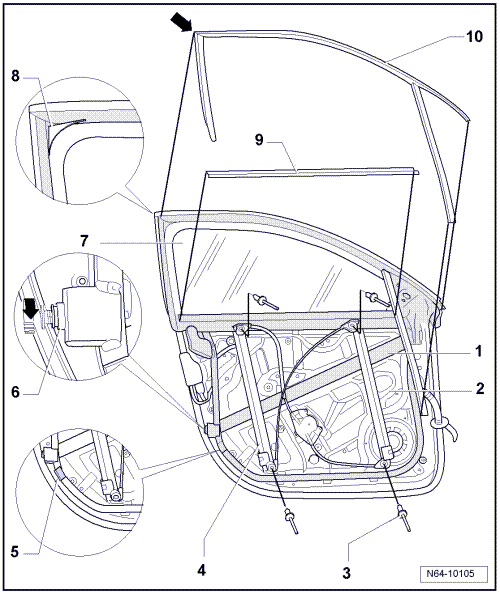

Fig 1: Identifying Individual Window Frame Components - Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Window frame
   • Riveted to assembly carrier in the illustration.
2. Subframe
   • Removing and Installing, refer to DOOR WINDOW
   • Window regulator motor is bolted to subframe from front.
3. Hollow rivet
   • Quantity: 4
   • Join window regulator to window frame.
4. Window regulator
5. Insulation
   • Self-adhesive
6. Adjuster
   • Quantity: 3
   • Self-adjusting
   • Must be retracted as far as possible before subframe is installed.
7. Door window
   • Removing and Installing, refer to DOOR WINDOW
8. Cap
   • Is slid in between window frame and window channel.
9. Window recess seal
   • Inserted on flange.
10. Window guide
    • Inserted on flange.
