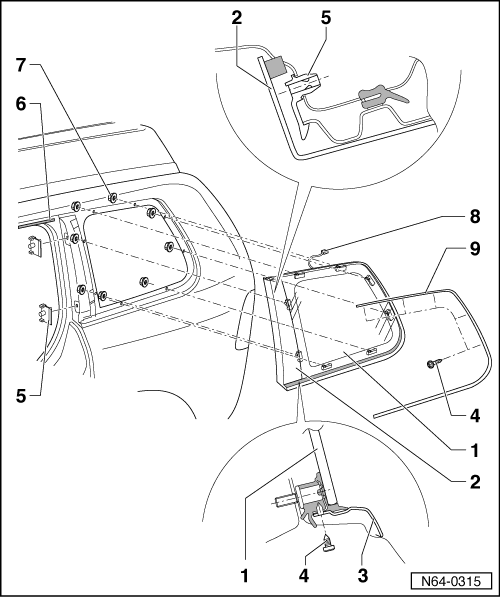

Side Window Assembly Overview
- Side Window
- To remove side window, the headliner must first be removed. Refer to Removal and Installation
- C-pillar trim
- Trim is part of side window and is not to be replaced separately.
- Trim molding
- Bolt
- Quantity: 8
- Retaining clip
- Drip deflector
- Flanged hex nut
- Quantity: 8
- 4.5 Nm
- The torque must always be observed.
- Antenna connector
- Trim molding
- Secured to the side window with a screw -4-
