Rear Lid Hinged Window Assembly Overview

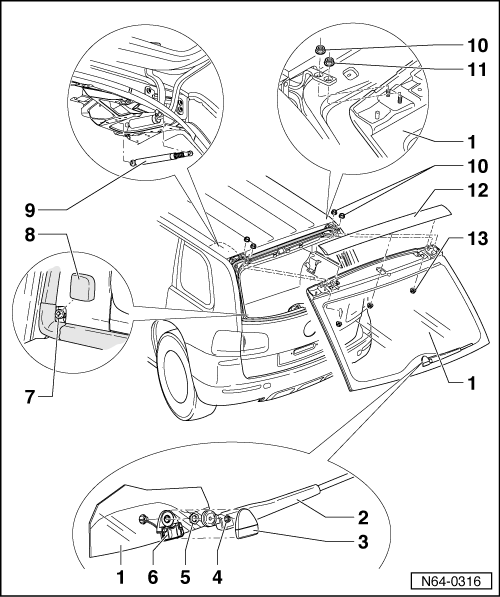

Fig 1: Identifying Hinged Tailgate Window - Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear lid hinged window
- Removing and Installing, refer to REAR LID HINGED WINDOW
- Adjusting, refer to REAR LID HINGED WINDOW, ADJUSTING
Rear window wiper
Cap
Hex nut
- 12 Nm
Hex nut
- 12 Nm
Button for hinged window
Adjustment screw
Rubber stop
Gas strut
- Removing and Installing, refer to GAS-FILLED STRUT FOR HINGED WINDOW
- Venting gas, refer to GAS STRUT, VENTING
Hex nut
- Quantity: 4
- 8 Nm
Hinge
- Removing and Installing, refer to REAR LID HINGE
Rear spoiler
- Removing and Installing, refer to REAR SPOILER
Hex nut
- Quantity: 3
- 2.5 Nm
