Assembly Carrier Components Assembly Overview

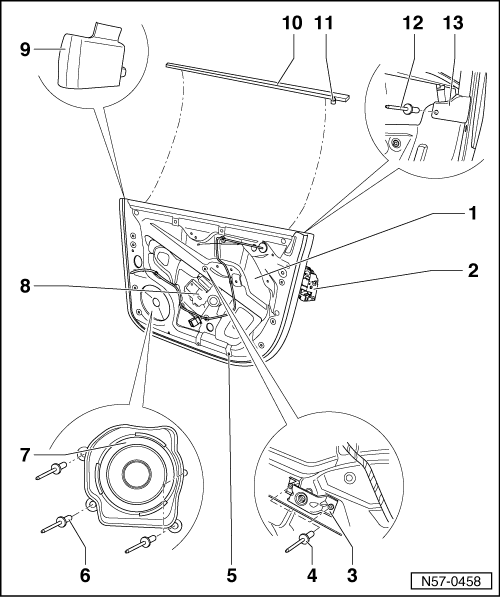

Fig 1: Identifying Assembly Carrier, Individual Components - Assembly Overview
GWWN57-0458Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Assembly carrier
  2. Door lock
    • Removing and Installing, refer to DOOR LOCK
  3. Angle bracket
  4. Hollow rivet
    • Quantity: 2
  5. Expanding nut
    • Quantity: 2
  6. Hollow rivet
    • Quantity: 4
  7. Speaker
  8. Window Regulator Motor
  9. Cap
    • For forward transition area from assembly carrier to window frame
  10. Sealing strips
    • Is adhered before assembly carrier and window frame are assembled.
    • Self-adhesive
    • Cut to length of 975 mm (31 in.).
  11. Protective film
  12. Hollow rivet
  13. Cap
    • For rear transition from assembly carrier to window frame
