Folding Main Key With Radio-Frequency Remote Control Assembly Overview

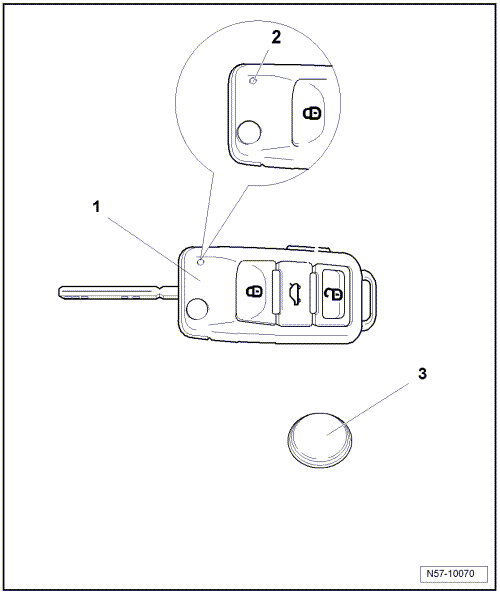

Fig 1: Identifying Batteries For Main Key (Foldable) With Radio-Frequency Remote Control (01.04), Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Key with radio frequency unit
   • The radio frequency unit cannot be replaced separately
2. LED
   • This LED must blink when operating the remote control
   • If LED does not blink when remote control is operated, the battery is completely discharged and must be replaced:
3. Battery
   • Removing and installing battery, refer to MAIN FOLDING KEY WITH REMOTE CONTROL BATTERIES .
