Central Locking System And Comfort System Assembly Overview

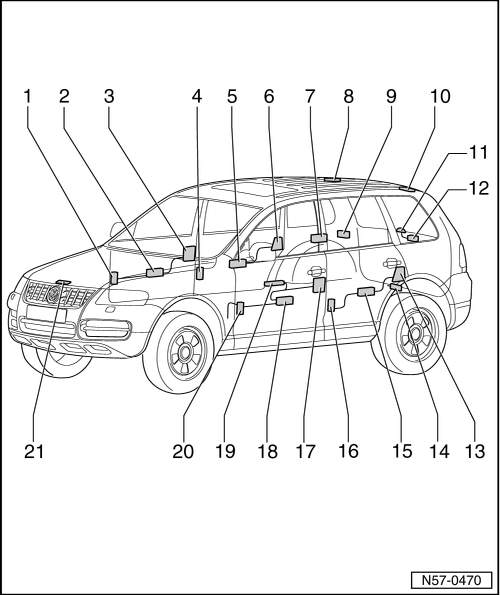

Fig 1: Identifying Central Locking System And Comfort System - Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Coupling station
   • Connectors -T21a-, -T5e-, -T4t-
   • Location: Lower A-pillar, covered by footwell trim.
   • Remove the right A-pillar lower trim. Refer to Removal and Installation .
2. Door control module, FR
   • integrated in window regulator motor.
   • Removing:
   • Remove door trim, refer to Removal and Installation
   • Remove front subframe, refer to DOOR LOCK .
   • Remove window regulator motor, refer to WINDOW REGULATOR MOTOR .
3. Door lock, RF
   • Door lock is secured to subframe.
   • Electrical central locking system is integrated in door lock module.
   • removing:
   • Remove door trim, refer to Removal and Installation
   • Remove door lock, refer to DOOR LOCK
4. Coupling station
   • Connectors -T21c-, -T5i-, -T4ac-
   • Location: B-pillar
   • Remove the B-pillar trim. Refer to Removal and Installation .
5. Door control module, RR
   • integrated in window regulator motor.
   • removing:
   • Remove door trim Removal and Installation
   • Remove rear subframe, refer to DOOR LOCK
   • Remove window regulator motor, refer to WINDOW REGULATOR MOTOR .
6. Door lock, RR
   • Door lock is secured to subframe.
   • Electrical central locking system is integrated in door lock module.
   • Removing:
   • Remove door trim, refer to Removal and Installation
   • Remove door lock, refer to DOOR LOCK
7. Comfort System Central Control Module
   • Mounted on right rear wheelhouse.
   • The luggage compartment trim panel up to wheel housing must be removed beforehand. Refer to Removal and Installation .
8. Coupling station
   • Location: in area of rear roof crossmember, covered by roof trim.
   • Remove roof trim Removal and Installation .
9. Fuel filler door unlock motor
   • Location: under C-pillar trim.
   • Removing:
   • The luggage compartment trim panel up to wheel housing must be removed beforehand. Refer to Removal and Installation .
   • Remove motor for fuel filler door unlock.
10. Coupling station
    • Location: in area of rear roof crossmember, covered by roof trim.
    • Remove roof trim, refer to Removal and Installation .
11. Rear window opening button
    • attached with the rear wiper.
12. Rear window unlock unit
    • Installed onto tailgate.
    • removing:
    • Remove the rear lid trim panel. Refer to Removal and Installation
    • Remove rear window unlock unit.
13. Door lock, LR
    • Door lock is secured to subframe.
    • Electrical central locking system is integrated in door lock module.
    • removing:
    • Remove door trim, refer to Removal and Installation
    • Remove door lock, refer to DOOR LOCK
14. Rear lid motor
    • Installed onto tailgate.
    • removing:
    • Remove the rear lid trim panel. Refer to Removal and Installation
    • Remove positioning motor.
15. Door control module, RL
    • Integrated in window regulator motor.
    • Removing:
    • Remove door trim, refer to Removal and Installation
    • Remove rear subframe, refer to DOOR LOCK
    • Remove window regulator motor, refer to WINDOW REGULATOR MOTOR .
16. Coupling station
    • Connectors -T21b-, -T5g-, -T4x-
    • Location: B-pillar
    • Remove the B-pillar trim. Refer to Removal and Installation .
17. Door lock, LF
    • Door lock is secured to subframe.
    • Electrical central locking system is integrated in door lock module.
    • Removing:
    • Remove door trim, refer to Removal and Installation
    • Remove door lock, refer to DOOR LOCK
18. Door control module, FL
    • integrated in window regulator motor.
    • Removing:
    • Remove door trim, refer to Removal and Installation
    • Remove front subframe, refer to DOOR LOCK .
    • Remove window regulator motor, refer to WINDOW REGULATOR MOTOR .
19. Controls
    • Installed in door trim.
    • Removing:
    • Remove door trim, refer to Removal and Installation
20. Coupling station
    • Connectors -T21-, -T5d-, -T4s-
    • Location: Lower A-pillar, covered by footwell trim.
    • Remove the left A-pillar lower trim. Refer to Removal and Installation .
21. Hood lock
    • Anti-theft warning system contact switch
    • Location: in lock carrier
    • Removing lid lock, refer to REAR LID LOCK
