Vehicle Position Recognition Control Module Connector End Views (J603, T8u)

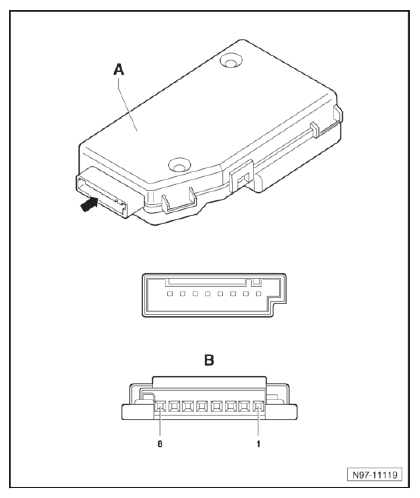

Fig 1: Vehicle Position Recognition Control Module Connector End Views (J603, T8u)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A
Vehicle Position Recognition Control Module J603
B
8-pin connector -T8u-
