TV/Radio/Navigation Display/Control Module Connector End View (J506)

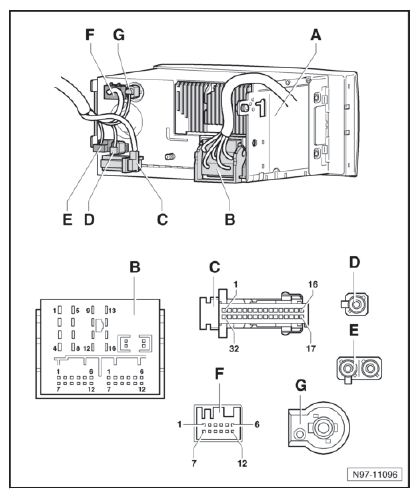

Fig 1: TV/Radio/Navigation Display/Control Module Connector End View (J506)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A	TV/Radio/Navigation Display/Control Module -J506-
B	Quadlock Connector
C	Video Connector
D	Navigation System Antenna
E	FM/AM Input Antennas
F	Connector (Japan)
G	DAB/SDARS Antenna
