Transfer Module Assembly Overview

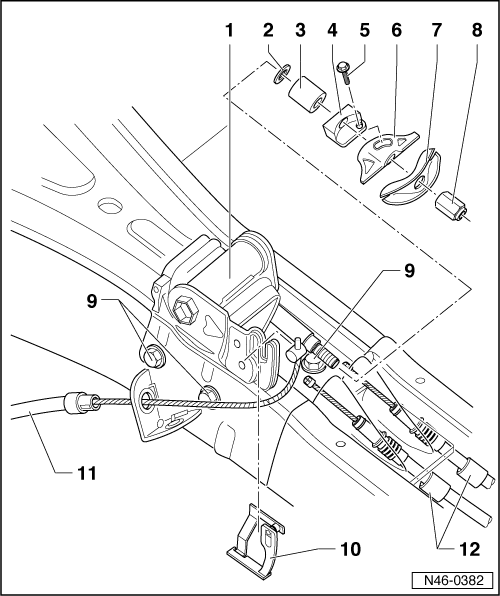

Fig 1: Transfer Module - Assembly Overview
GWWN46-0382Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Transfer Module
  2. Washer
  3. Buffer
  4. Cable Anchor Bracket
  5. TORX Bolt
  6. Cable Anchor
  7. Compensator Bracket
  8. Nut
  9. Bolt
    • 23 Nm
  10. Clip
  11. Front Brake Cable
  12. Rear Brake Cables
