Front Axle Abs Components Overview

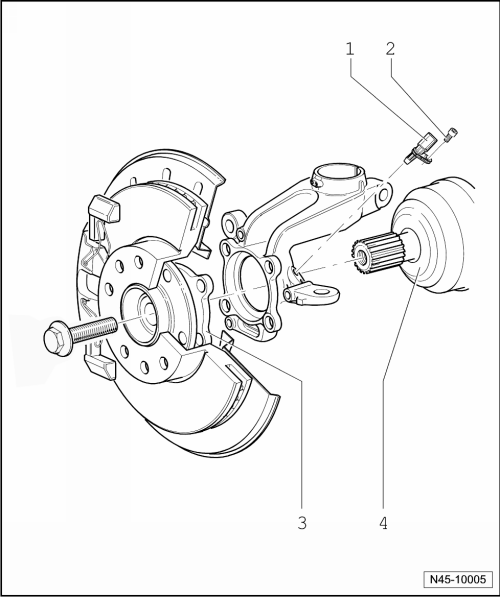

Fig 1: Identifying Front ABS Components Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Wheel Speed Sensor
- Before inserting the speed sensor, clean the inner surface of the hole and coat it with hot bolt paste G 052 112 A3.
- Removing and installing, refer to SPEED SENSOR, FRONT AXLE
Hex Socket Bolt
- 8 Nm
Wheel Hub with Wheel Bearing
- The ABS sensor ring is installed in the wheel bearing
Drive Axle
