RBZ Radio Programming Update For Various Functionality Concerns (GROUP 91, NO. 11-11)

Publication date: 2011-04-14
Reference number: GROUP 91, NO. 11-11
Supersedes refnos: 2025753

RBZ RADIO PROGRAMMING UPDATE FOR VARIOUS FUNCTIONALITY CONCERNS

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 91, NO. 11-11 (2025753), Date of Issue: April 14, 2011

VOLKSWAGEN:	Routan 2010
GROUP:	91 - Radio, Telephone, Board Computer, Multi-Function Indicator (MFI)

APPLICABLE MODELS AND YEARS

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Routan	2010	All	All	All	All

CONDITION

91 11 11 April 14, 2011 2025753

RBZ Radio Programming Update For Various Functionality Concerns

The display may appear to be dimly lit when in backup camera mode (if equipped).
Screen fonts to small or unclear.
Video playback, display to bright.
Audio playback, sound quality/frequency response could be improved.
Hands free call information does not display caller ID.
Bluetooth streaming audio information is incomplete.

TECHNICAL BACKGROUND

Software concern

PRODUCTION SOLUTION

Software 8.05 released MY 2011

SERVICE

Insert key and switch the ignition to the ON position without starting.
Insert programming CD RBZFLSW8.05 into the radio.
Verify the software is below 8.05
Tip: If software is found to be at 8.05 or higher, this technical bulletin DOES NOT apply, further diagnosis is required.

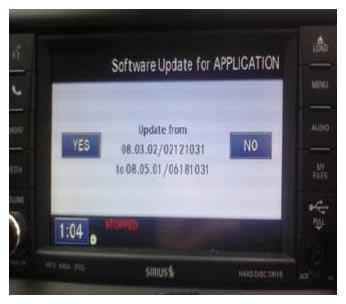

Touch the YES button on the screen to begin the software update.

NOTE: DO NOT cycle the ignition during the update process.
Once the update has completed, verify the software is at 8.05
Remove the flash disc and store in a secure spot.
NOTE: If the software update process is interrupted/aborted, the process should be restarted.
Using StarMobile clear any DTC's that may have been set in other modules during software update.

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

Routan

2010

All

Claim Type:

Use applicable Claim Type⁽¹⁾

SAGA Coding

Service Number:

Damage Code

HST

Damage Location (Depends on Service No.)

Parts Manufacturer (removed part)

9130

0039

CWM2025753

Use applicable when indicated in ElsaWeb (L/R)

U S M⁽²⁾

Labor Operation⁽³⁾: Includes all operations necessary to complete repair

91302599 = 30 TU

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = XX TU max.

Road Test

01210002 01210004

Technical Diagnosis

0132xxxx = XX TU max.

Claim Comment: Input "As per Technical Bulletin 2025753" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with Elsa updates.

⁽⁴⁾	Documentation required per Warranty Policy Procedures Manual.

REQUIRED PARTS AND TOOLS

No special parts required.

TOOL INFORMATION

Tool Description	Tool No:
Radio Update Disc version 8.05	RBZFLSW8.05
StarMOBILE® Tester Kit	CH9401 (Software level 10.01.23 or higher)

Tip: Additional copies of the Update - Programming CD may be ordered from Volkswagen Technical Literature Ordering Center at www.vw.techliterature.com.

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
