Coding Of The Tire Pressure Monitoring System (TPMS) Control Module -J502- In Aw 65 (GROUP 44, NO. 09-02)
Publication date: 2009-10-27Reference number: GROUP 44, NO. 09-02
Supersedes refnos: 2021931
CODING OF THE TIRE PRESSURE MONITORING SYSTEM (TPMS) CONTROL MODULE -J502- IN AW 65
TECHNICAL SERVICE BULLETIN
Reference Number(s): GROUP 44, NO. 09-02 (2021931), Date of Issue:
October 27, 2009
| VOLKSWAGEN: | 2010 Golf, GTI, Jetta, Jetta SportWagen, Eos |
| GROUP: | Wheels - Tires, Wheel Alignments |
SERVICE INFORMATION
APPLICABLE MODELS AND YEARS
| Model(s) | Year | Eng. Code | Trans. Code | VIN Range From | VIN Range To |
|---|---|---|---|---|---|
| Golf, GTI, Jetta, Jetta SportWagen, Eos | 2010 | All | All | All | All |
CONDITION
44 09 02 October 27, 2009 2021931
Coding of the Tire Pressure Monitoring System (TPMS) Control Module -J502- in AW 65
VAS 5051/5052 tester is unable to correctly code the tire pressure control module on-line or off-line.
TECHNICAL BACKGROUND
From CW 22/9 the coding for all TPMS modules must be entered in HEX form.
PRODUCTION SOLUTION
Production is not affected because the factory coding is correct.
SERVICE
Service coding conversion:
Decimal 100100 = HEX 018704

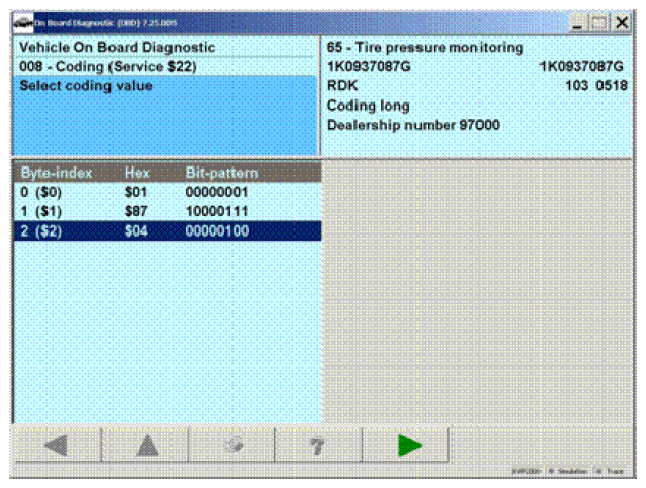

In Detail (Fig 1)
- Set byte 0, to 01
- Set byte 1, to 87
- Set byte 2, to 04
WARRANTY
Information Only.
REQUIRED PARTS AND TOOLS
No Special Parts required
TOOL INFORMATION
| Tool Description | Tool No: |
|---|---|
| Battery Charger/Maintainer | INC-940 |
| VAS Diagnostic Tool | VAS 5051/5052 |
ADDITIONAL INFORMATION
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information .
