From November 2010







Control modules in interior

Steering Column Electronic Systems Control Module -J527-

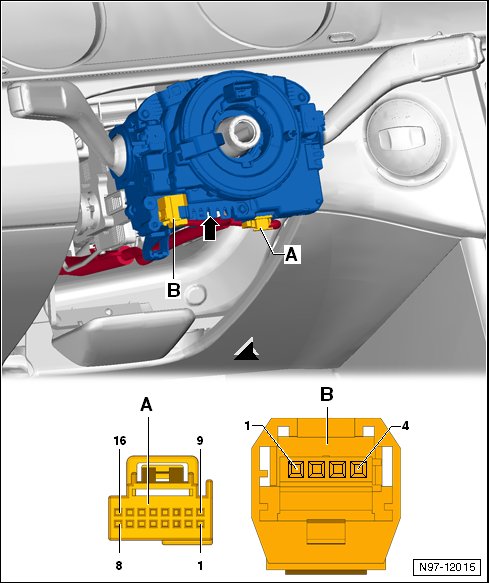

Component Location:


From November 2010 -Arrow-







Pin Arrangements:


From November 2010
Connector -A-16-pin connector -T16o-
Connector -B-4-pin connector -T4ae-
