Control Module HVAC: Service and Repair

Fresh Air Blower V2 with Fresh Air Blower Control Module J126

Removing

The fresh air blower and fresh air blower control module are accessible from the passenger footwell.

• The fresh air blower control module and the fresh air blower are in a single housing together and cannot be replaced individually.

- Remove the partition from the heater => [ Removing Heater Partition ] Heater Component Location Overview.

- Remove the glove compartment.

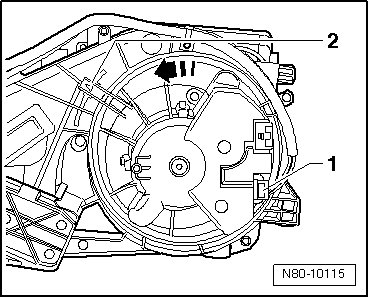

- Disconnect the connector from the fresh air blower with fresh air blower control module - 1 -.






- Disengage locking mechanism - 2 - and then turn and remove the fresh air blower and the fresh air blower control module - in the direction of arrow -.

Installing

Install in reverse order of removal.
