Engine Control Module: Diagrams

Control modules in engine compartment

Engine control module -J623-

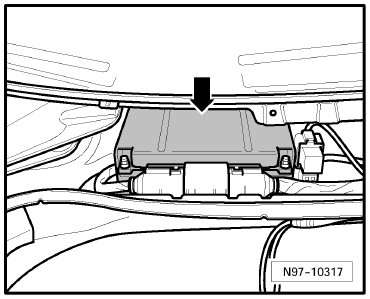

Component Location:







Below plenum chamber cover center -Arrow-

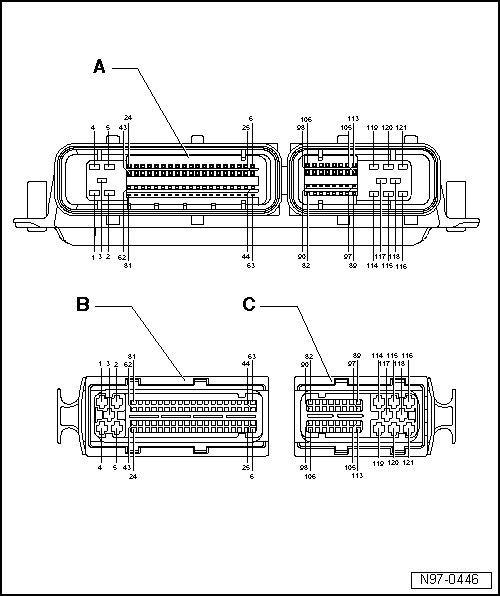

121-pin, Pin Arrangements:







A - Engine control module -J623-
121-pin, Pin Connector:

B - 81-pin connector -T81-

C - 40-Pin Connector -T40-

Note::
• The 121-pin connector -T121- is made up of a 81-pin connector -T81- and the 40-pin connector -T40- .

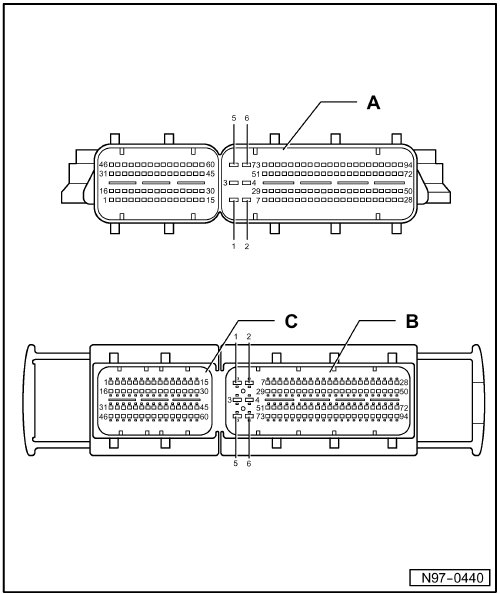

154-pin, Pin Arrangements:







A - Engine control module -J623-
154-pin, Pin Connector:

B - 94-pin connector -T94-

C - 60-Pin Connector -T60-

Note::
• The connector -T154- is made up of a 94-pin connector -T94- and a 60-pin connector -T60- .
