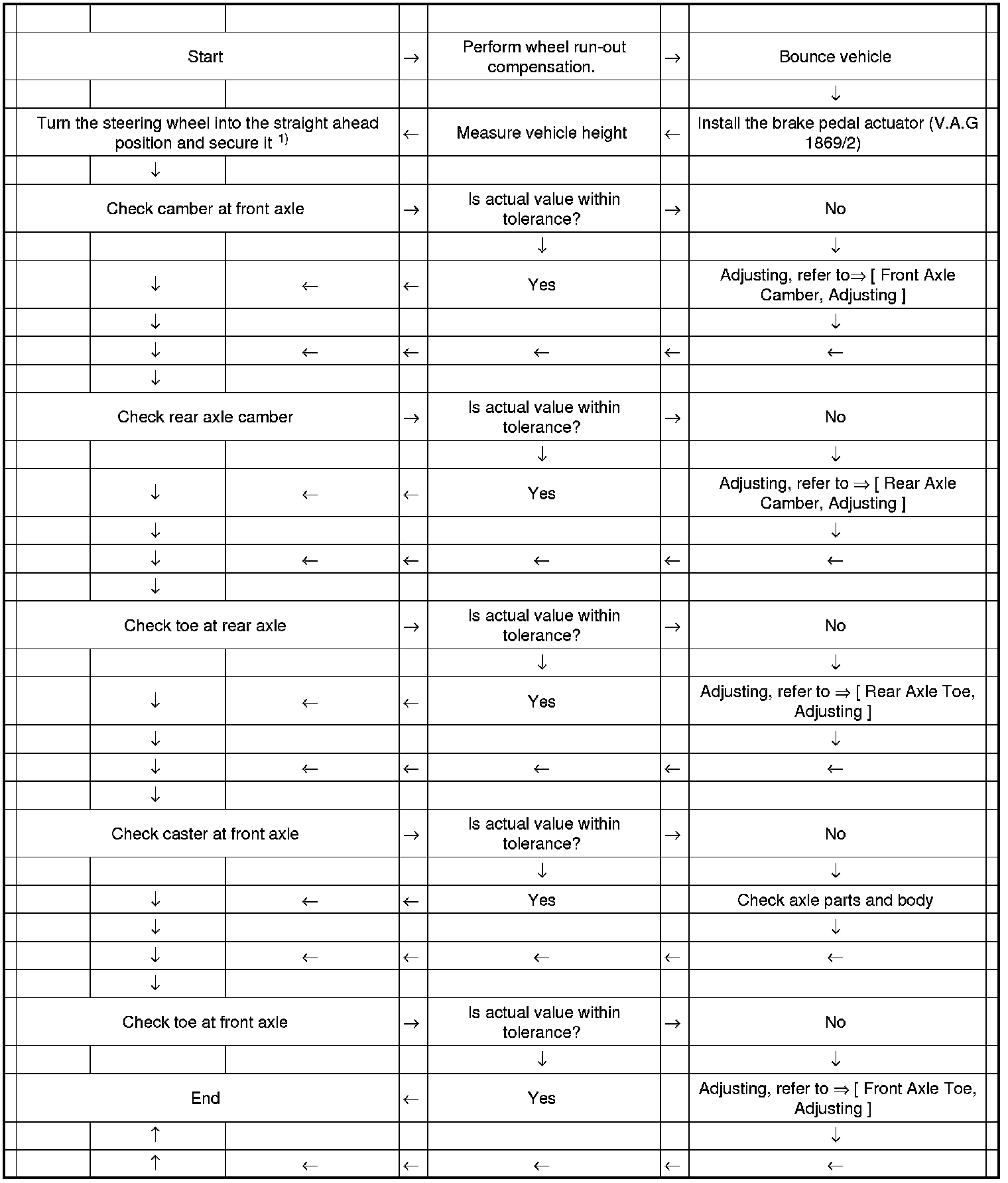

Alignment Procedure Overview

Alignment Procedure Overview

Observe the following work sequence!

- Pay attention to the notes on the wheel alignment device

Measuring Procedure






• 1 If the steering wheel is crooked at the end of the alignment procedure, it must be straightened. Perform a basic setting on the steering angle sensor using the vehicle diagnostic tester.
