Removing

• The controls consist of two separable housings. Before removing controls, turn the controls into the following position:

• Turn the heater control to "cold".

• Turn the blower to "0".

• Airflow direction to "footwell".

- Remove the trim from the center of the instrument panel..

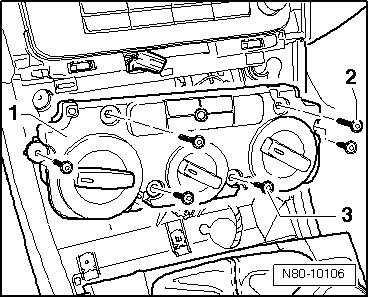

- Remove the screws (1.5 Nm) - 2 - (4.2 x 45 mm) and - 3 - (4.2 x 16 mm) and remove the heating and ventilation controls - 1 -.

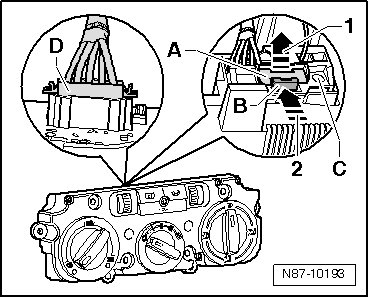

- Pull the connector - A - in - direction of arrow 1 - to disconnect it.






- Press connector release - B - toward the connector - arrow 2 - and disconnect the connector - C -.

- Disconnect the connector - D -.

Installing

Installation is performed in reverse order of removal, make sure when doing so that the rotary buttons have the same position as when removing.
