Towing Module
Control modules in luggage compartment
Towing recognition control module -J345-

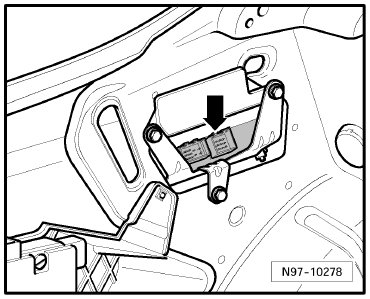

Component Location:
In rear left side panel -Arrow-

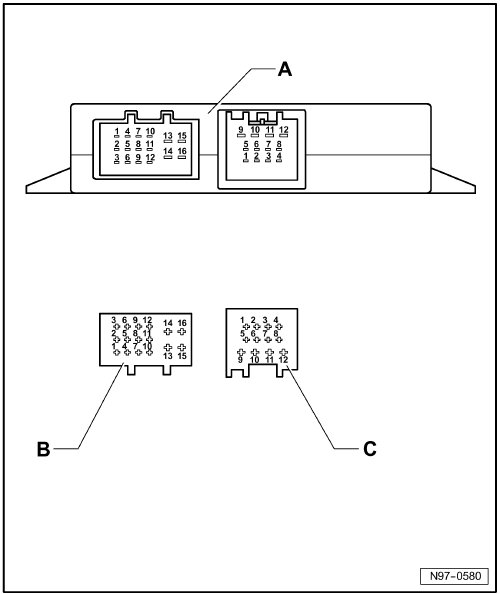

Pin Arrangements:
A - Towing recognition control module -J345-
Connector:
B - 16-Pin Connector -T16z-
C - 12-pin connector -T12g-
