Suspension Control Module

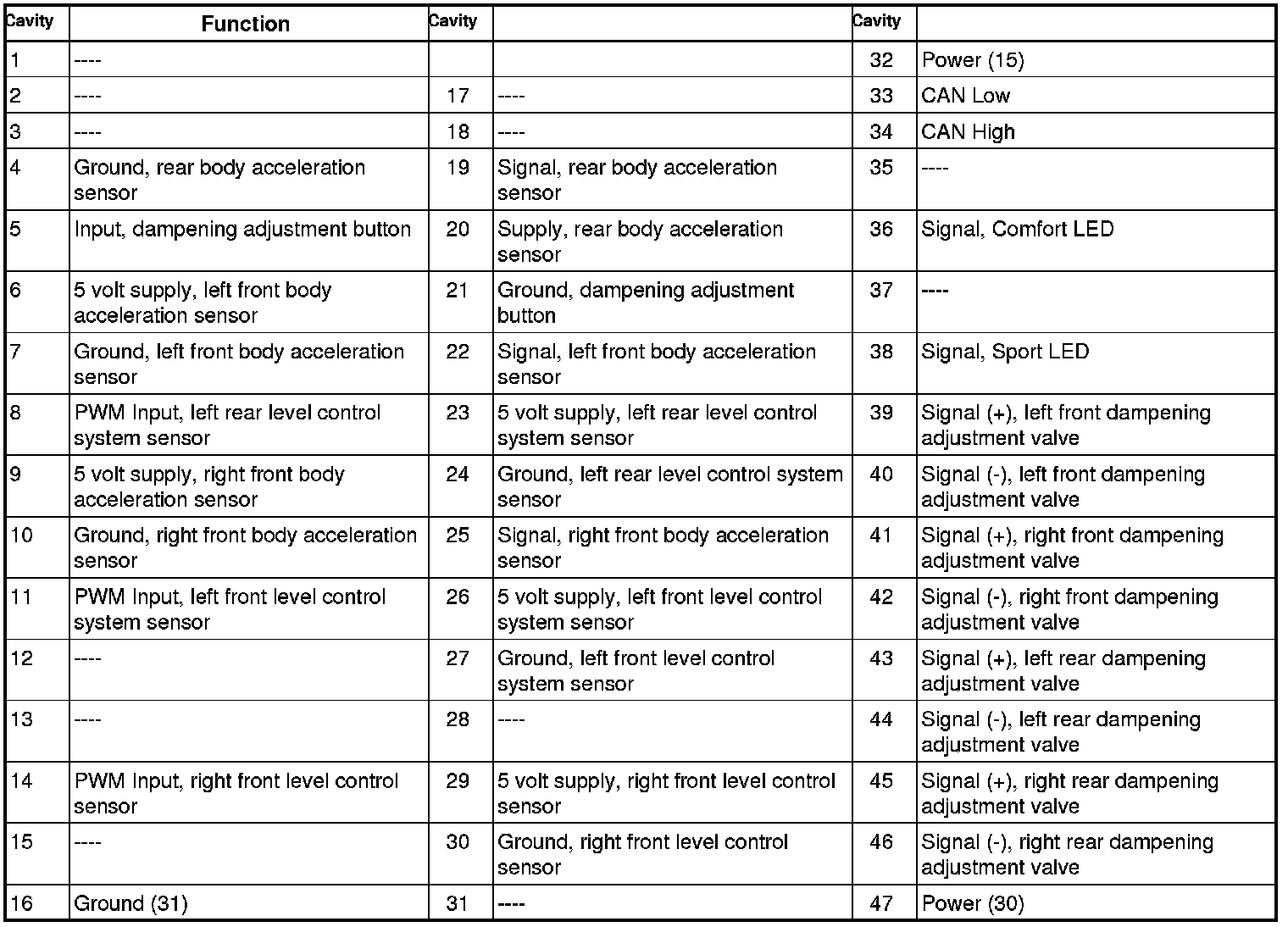

Suspension System - Connector Views

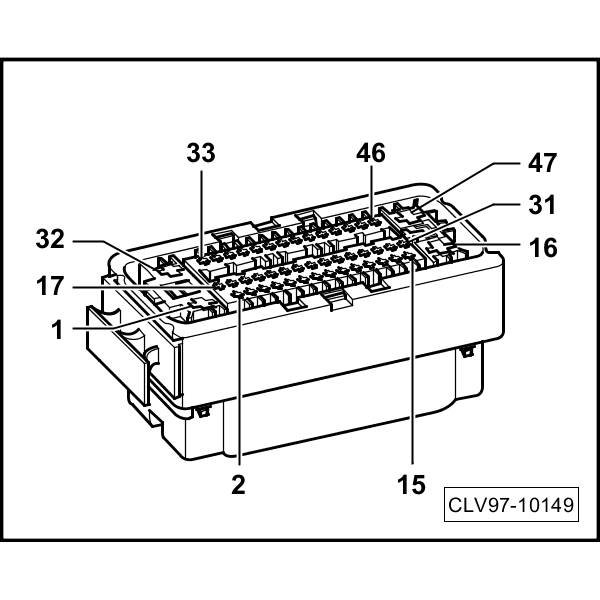

Electronic damping control module -J250-
