Driver/Front Pass Door Control Module -J386- / -J387-






Door Control Units - Connector Views

Driver/Front passenger door control module -J386- / -J387-

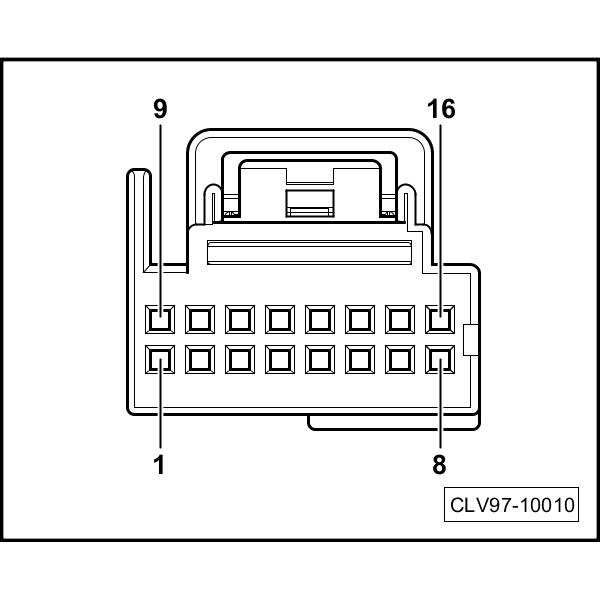

16 Pin Connector

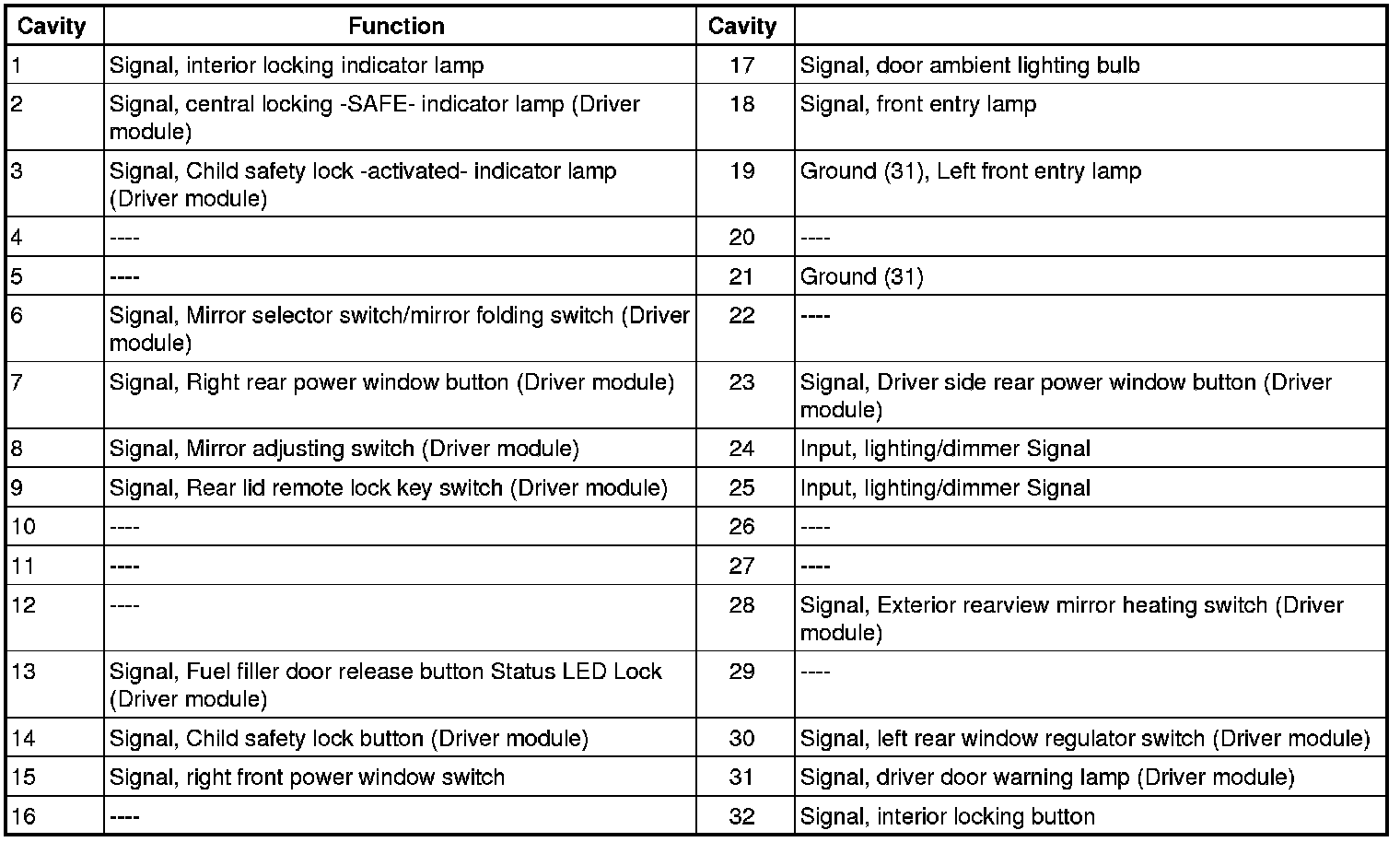

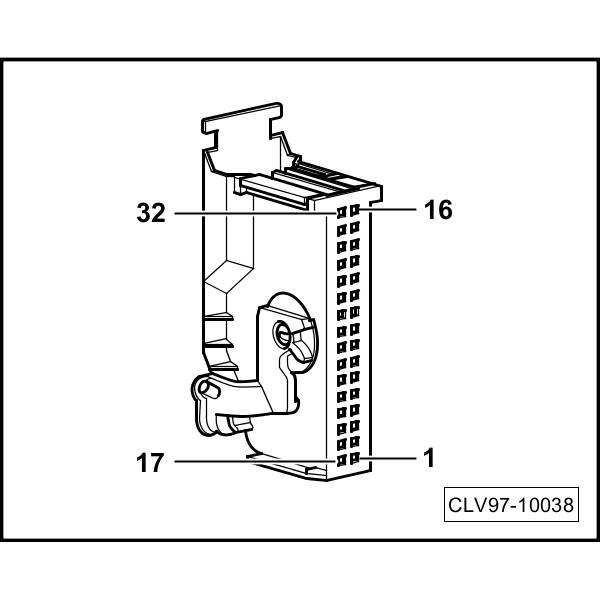

32 Pin Connector

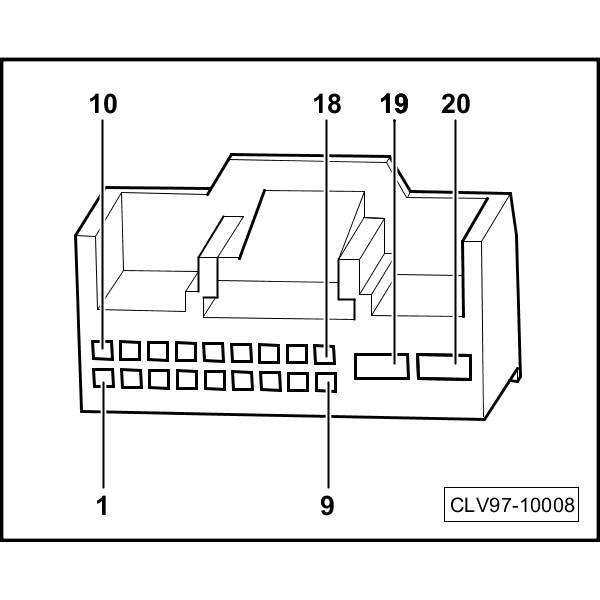

20 Pin Connector
