Communications Control Module






Control modules in interior

Cell phone operating electronics control module -J412- / Telephone control head control module -J738-

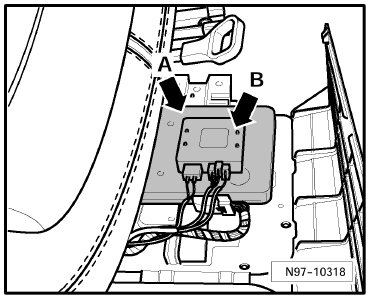

Component Location:


under the right front seat -Arrow A-

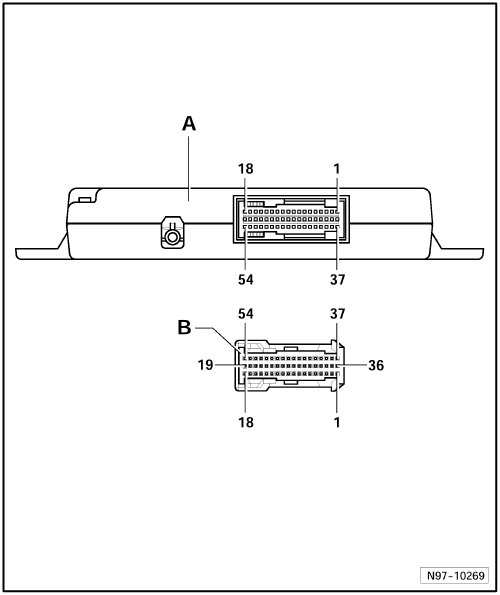

Pin Arrangements:







A - Cell phone operating electronics control module -J412- / Telephone control head control module -J738-
Connector:

B - 54-pin connector -T54-
