Front Seat Heating Control Module -J774-







Control modules in interior

Front seat heating control module -J774-

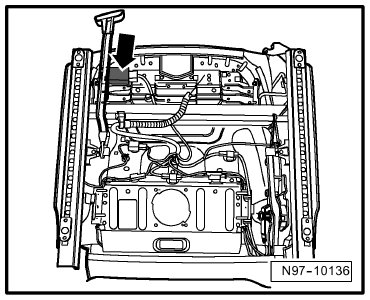

Component Location:


On the driver side seat frame -Arrow-
