Fender Assembly Overview

Fender Assembly Overview

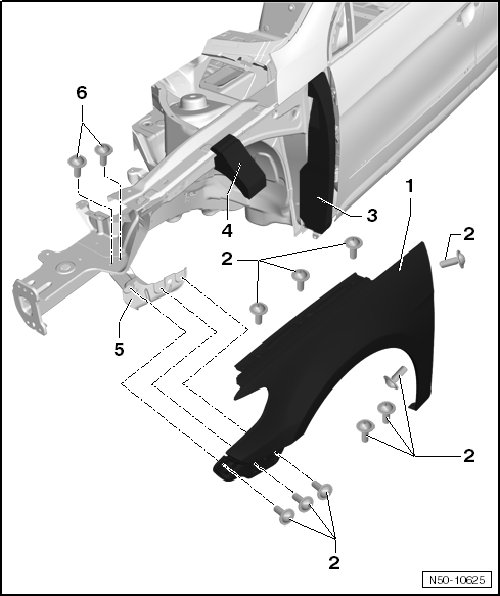

• The illustration shows the left side. The right side is identical.






1 Fender

• Removing and Installing, refer to => [ Fender ] Fender

2 Bolt

• 2 piece, at the A-pillar

• Quantity: 2, on sill panel

• Quantity: 3, on fender brace

• Quantity: 3, at fender connecting piece

• Tightening specification: 7.5 Nm

3 Fender end plate

4 Foam piece

• Inserted between fender and upper longitudinal member.

5 Fender brace

• Removing and Installing, refer to => [ Fender Brace ] Fender Brace

6 Bolt

• Quantity: 2

• Tightening specification: 2 Nm
