Transmission, Transporting

Transmission, Transporting

Special tools, testers and auxiliary items required

• Shackle (10-222 A/12)

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)

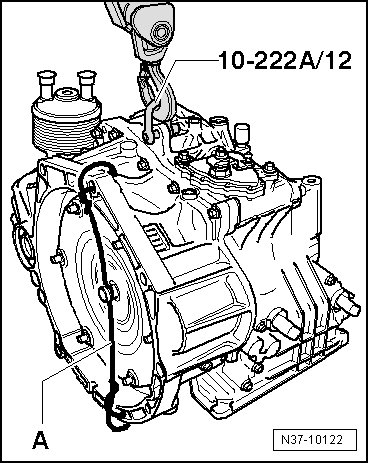

The transmission support (3282) can be used when transporting the automatic transmission and for setting up the shackles (10-222 A/12).

- Use a wire - A - to secure the torque converter so that it cannot fall while being shipped.
