Procedures

B+ Cable Mount on Generator

If the B+ wire is not tightened to the specification, the following may occur:

• Battery will not be completely charged.

• The complete electrical/electronics systems may fail (disabled vehicle).

• Fire hazard due to arcing.

• Damage to electronic components and control modules caused by excessive voltage.

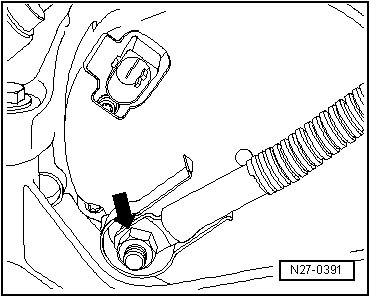

- Torque specification of B+ wire nut - arrow - is 15 Nm.
