Refrigerant System, Fastener Tightening Specifications

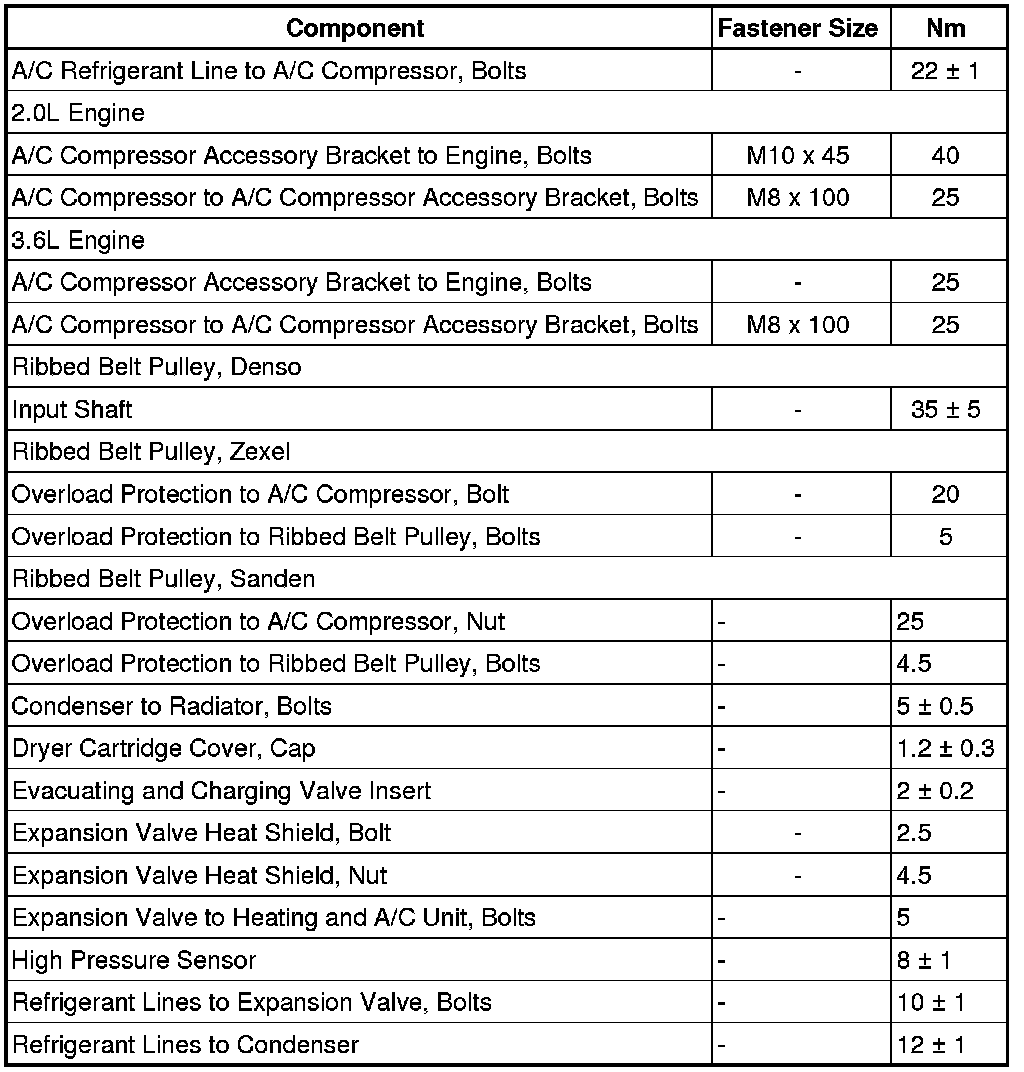

Refrigerant System, Fastener Tightening Specifications

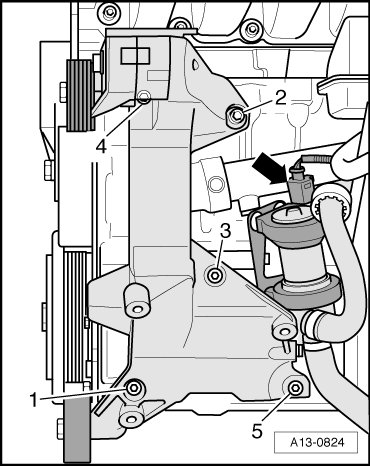

3.6L Accessory Bracket Tightening Sequence






• Bolts - 1 - and - 2 - are fitting bolts.

- Tighten the bolts hand-tight in the following sequence: 1 through 5.

- Tighten the bolts to 25 Nm in the following sequence: 1 through 5.
